Removal and Replacement

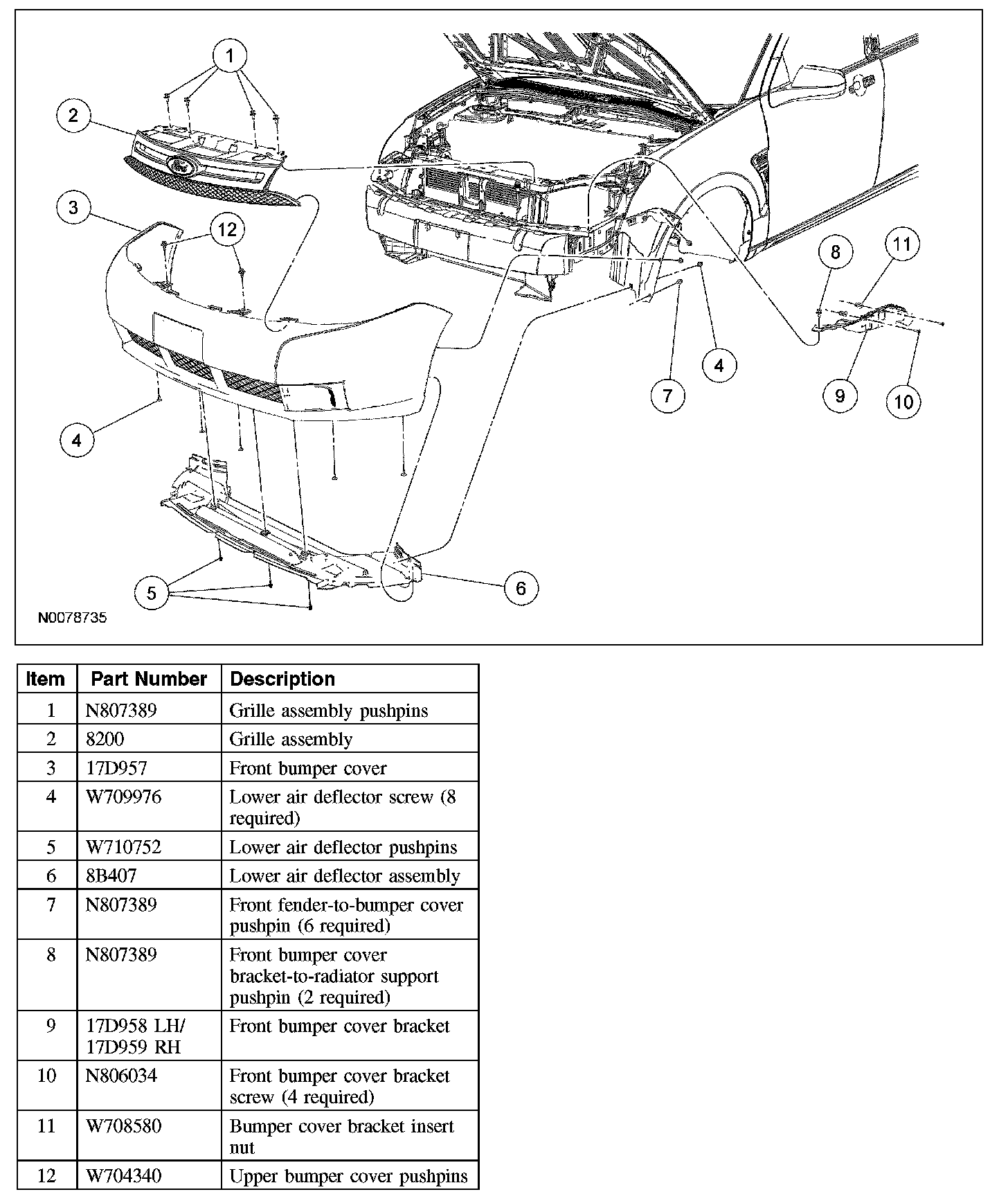

BUMPER COVER - FRONT







Removal and Installation

NOTE: The front bumper beam is a welded on component.

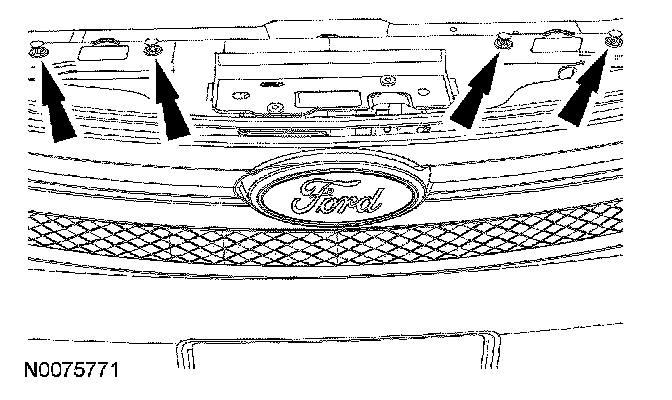

1. Remove the 4 radiator grille pin-type retainers and the radiator grille.







2. With the vehicle in NEUTRAL, position it on a hoist.
3. Remove the radiator lower air deflector.

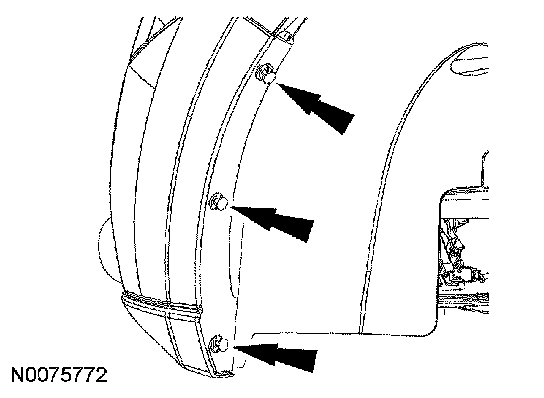

4. Remove the 6 fender splash shield pushpins.







5. Remove the fog lamp wiring harness pin-type retainer and position aside.

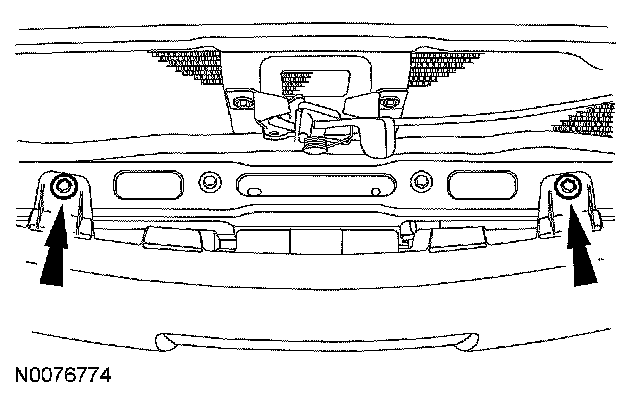

6. Remove the 2 upper bumper cover pin-type retainers.

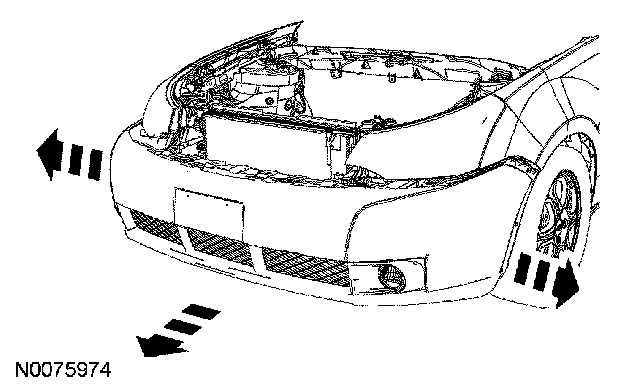

7. Disengage the bumper cover from the retaining brackets and remove the bumper cover by peeling from the wheel well first.







8. To install, reverse the removal procedure.
