Idler Pulley: Service and Repair

Accessory Drive Belt Idler Pulley

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the 2 bolts and accessory drive belt splash shield.
^ To install, tighten to 9 Nm (80 lb-in).

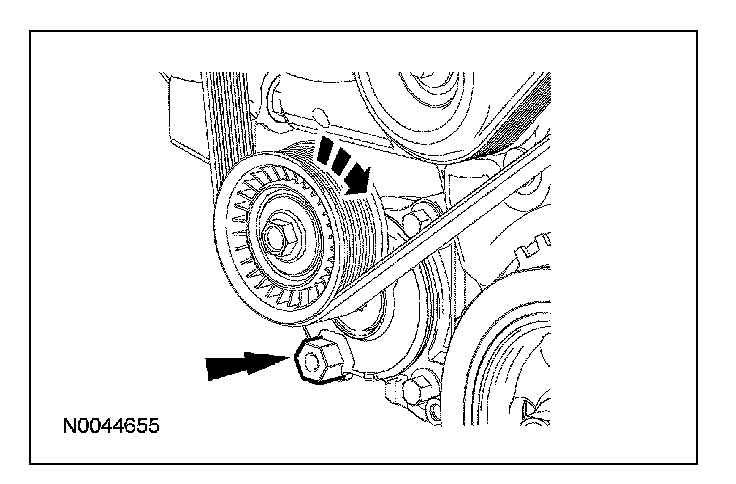

3. Using the hex feature, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the idler pulley.





4. Remove the bolt and accessory drive belt idler pulley.
^ To install, tighten to 48 Nm (35 lb-ft).
5. To install, reverse the removal procedure.
