Air Inlet Duct

AIR INLET DUCT

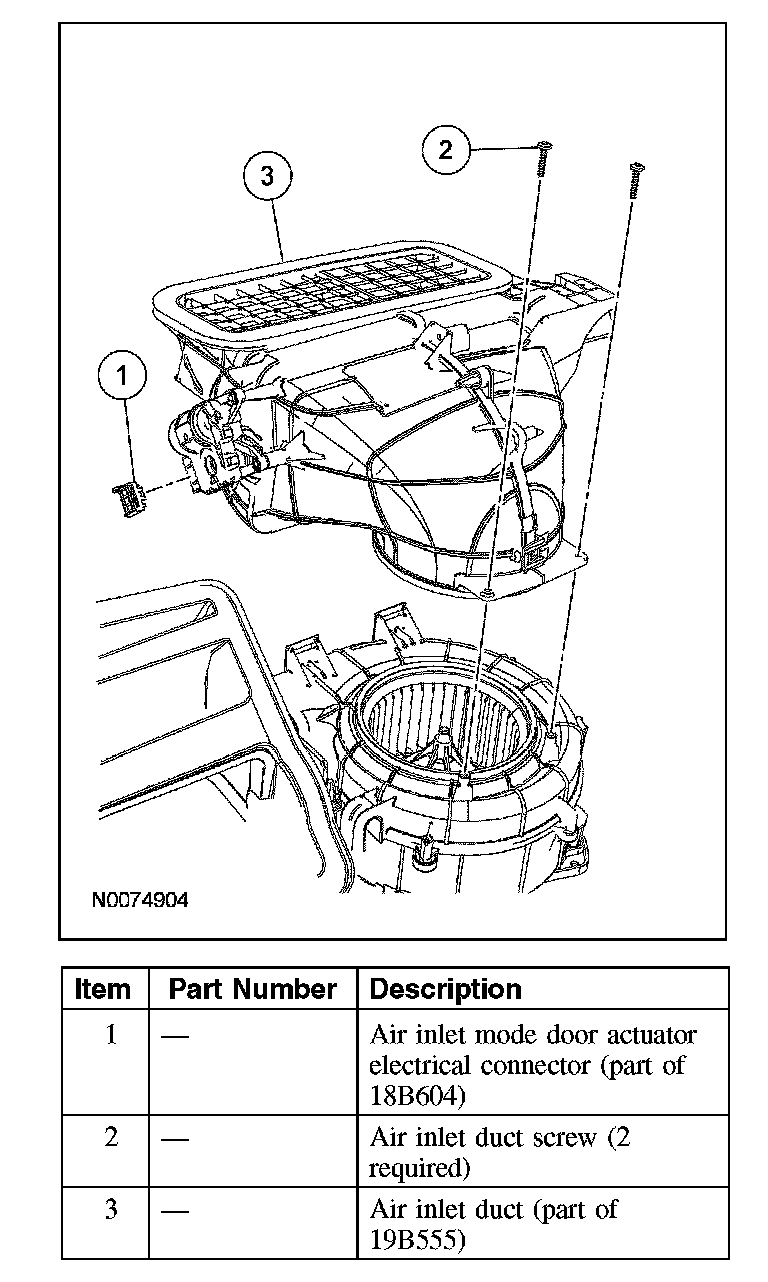

Removal and Installation
1. Remove the heater core and evaporator core housing.
2. Disconnect the air inlet mode door actuator electrical connector.
3. Remove the 2 air inlet duct screws.
4. Detach and remove the air inlet duct.
5. To install, reverse the removal procedure.
