Clutch Slave Cylinder: Service and Repair

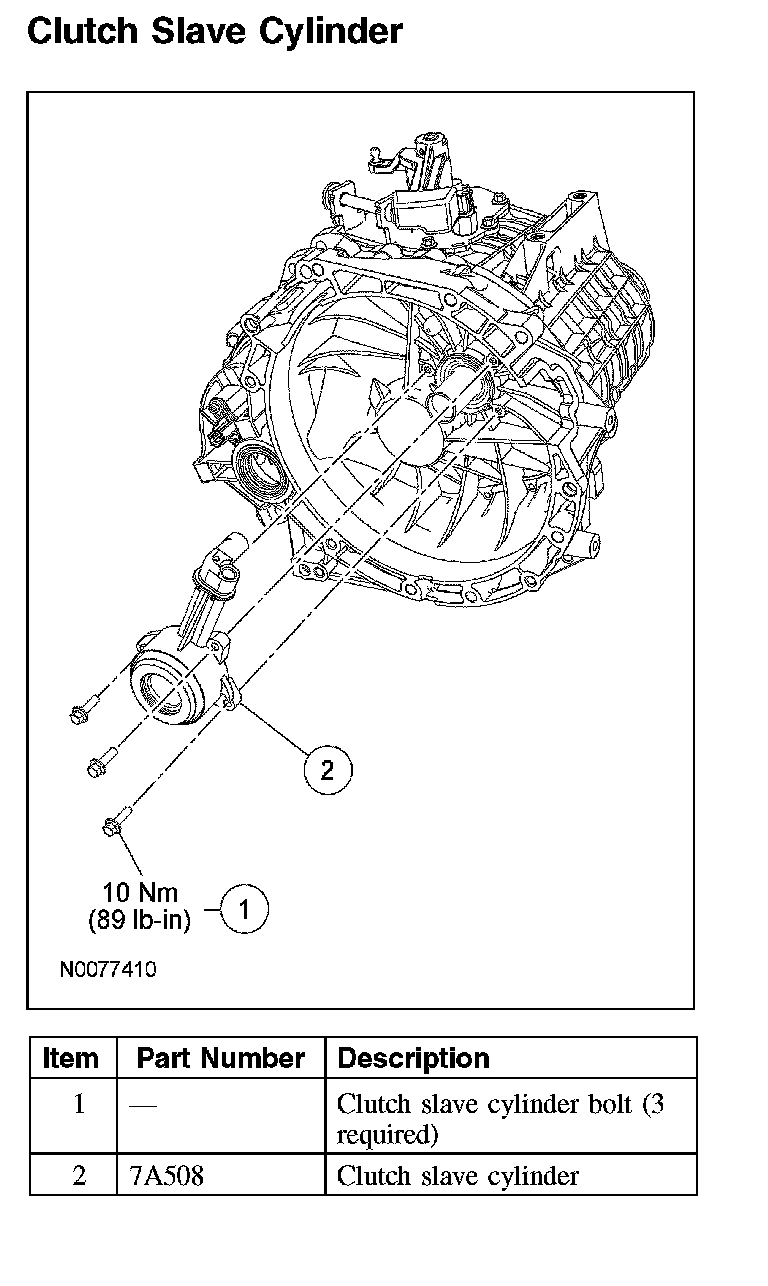

Clutch Slave Cylinder

Clutch Slave Cylinder:

Removal

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water. If spilled on a plastic surface, wipe up immediately.

1. Remove the transaxle.
2. Clean any grease and foreign material from the input shaft.
3. Remove the 3 clutch slave cylinder bolts and the clutch slave cylinder. Discard the clutch slave cylinder.

Installation

1. NOTE: Do not apply grease on any area of the clutch slave cylinder.

Install a new clutch slave cylinder and the 3 clutch slave cylinder bolts.
^ Tighten to 10 Nm (89 inch lbs.).
2. Install the transaxle.
3. Bleed the clutch hydraulic system.
