Pinpoint Tests

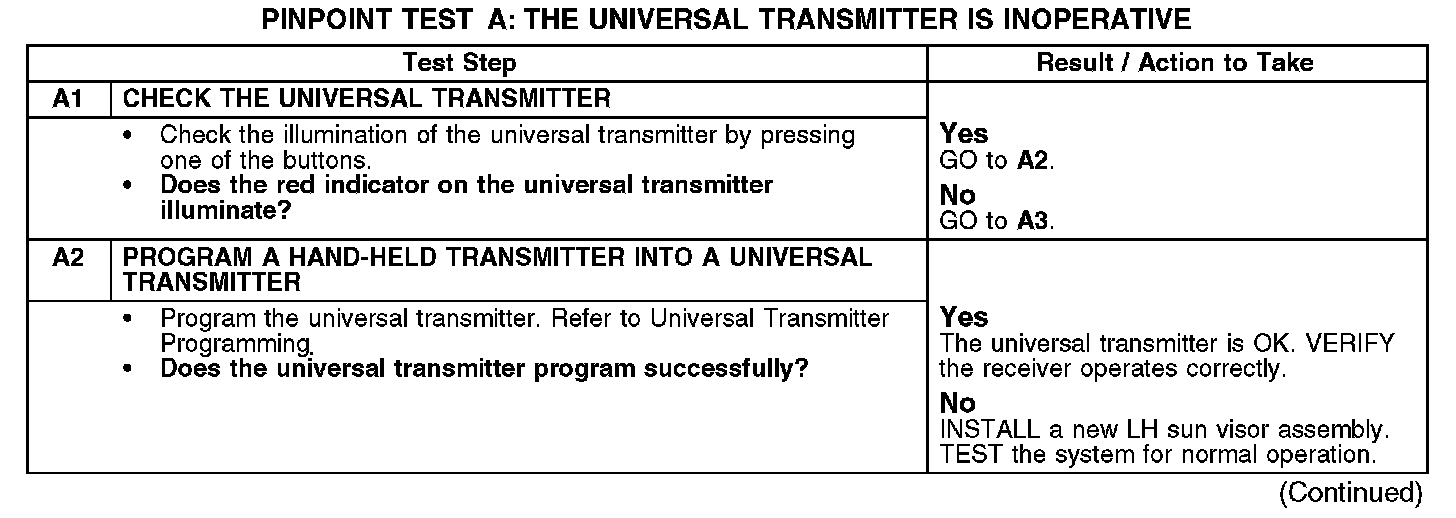

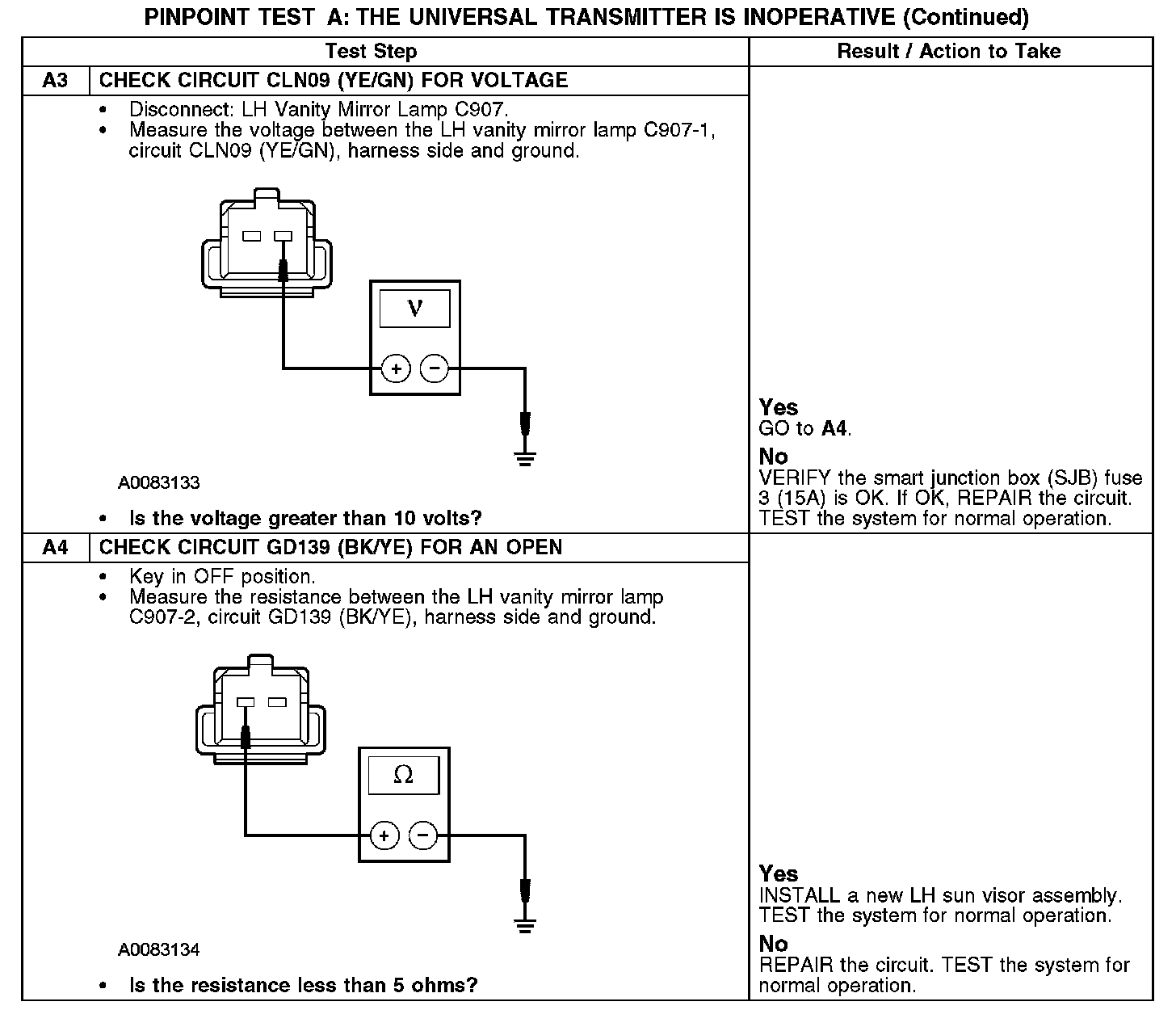

PINPOINT TEST A: THE UNIVERSAL TRANSMITTER IS INOPERATIVE

Normal Operation
The universal transmitter receives voltage on circuit CLN09 (YE/GN) and is grounded through circuit GD139 (BK/YE).

This pinpoint test is intended to diagnose the following:
- Fuse
- Wiring, terminals or connectors
- Receiver unit
- Universal transmitter
