Door Speaker

DOOR SPEAKER







Removal and Installation

All speakers
1. Remove the door trim panel.

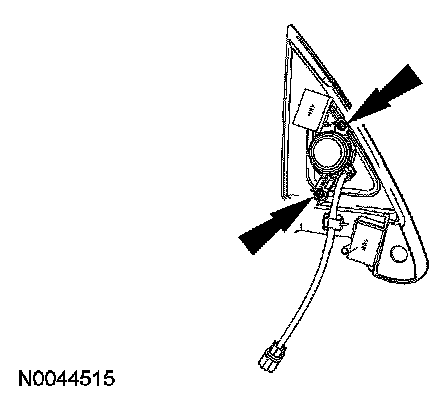

Front door tweeter speaker (Fusion and Milan)
2. Remove the sail panel.
- Disconnect the electrical connector.

3. Remove the 2 screws and the front door tweeter speaker from the sail panel.

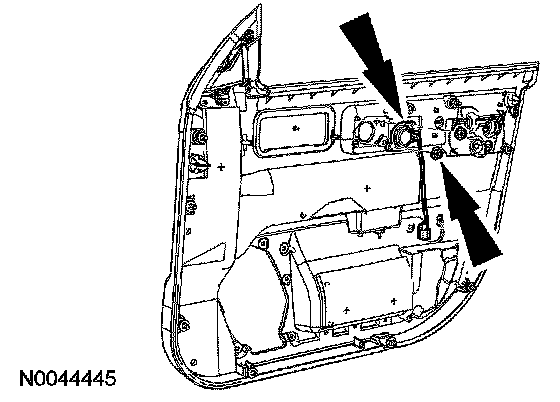

Front door tweeter speaker (MKZ)
4. Remove the 2 nuts and the front door tweeter speaker from the door trim panel.

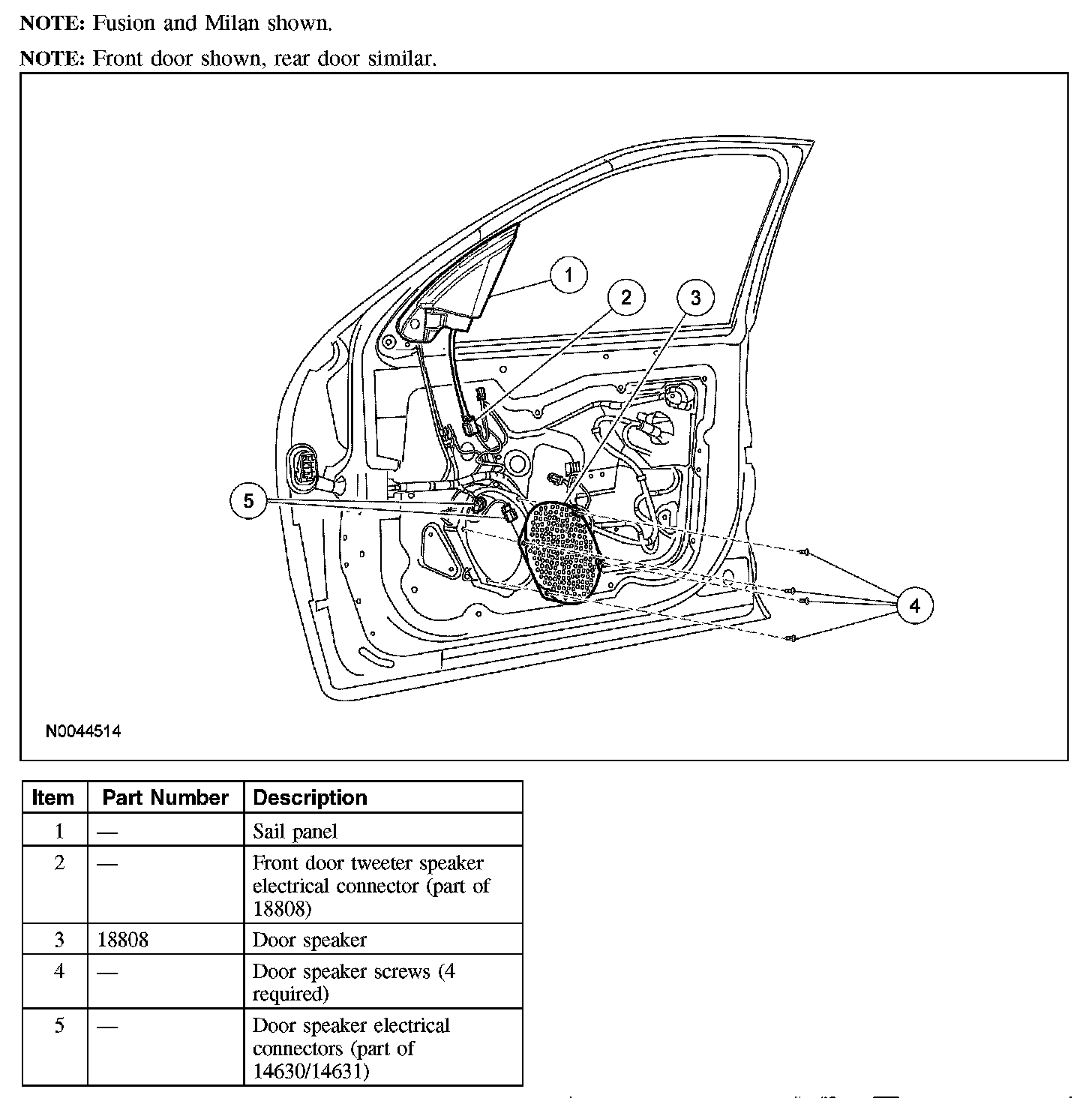

Front or rear door speaker
5. Remove the 4 screws and the door speaker.
- Disconnect the electrical connectors.

All speakers
6. To install, reverse the removal procedure.
