Engine Control Module
>>
Diagrams
>>

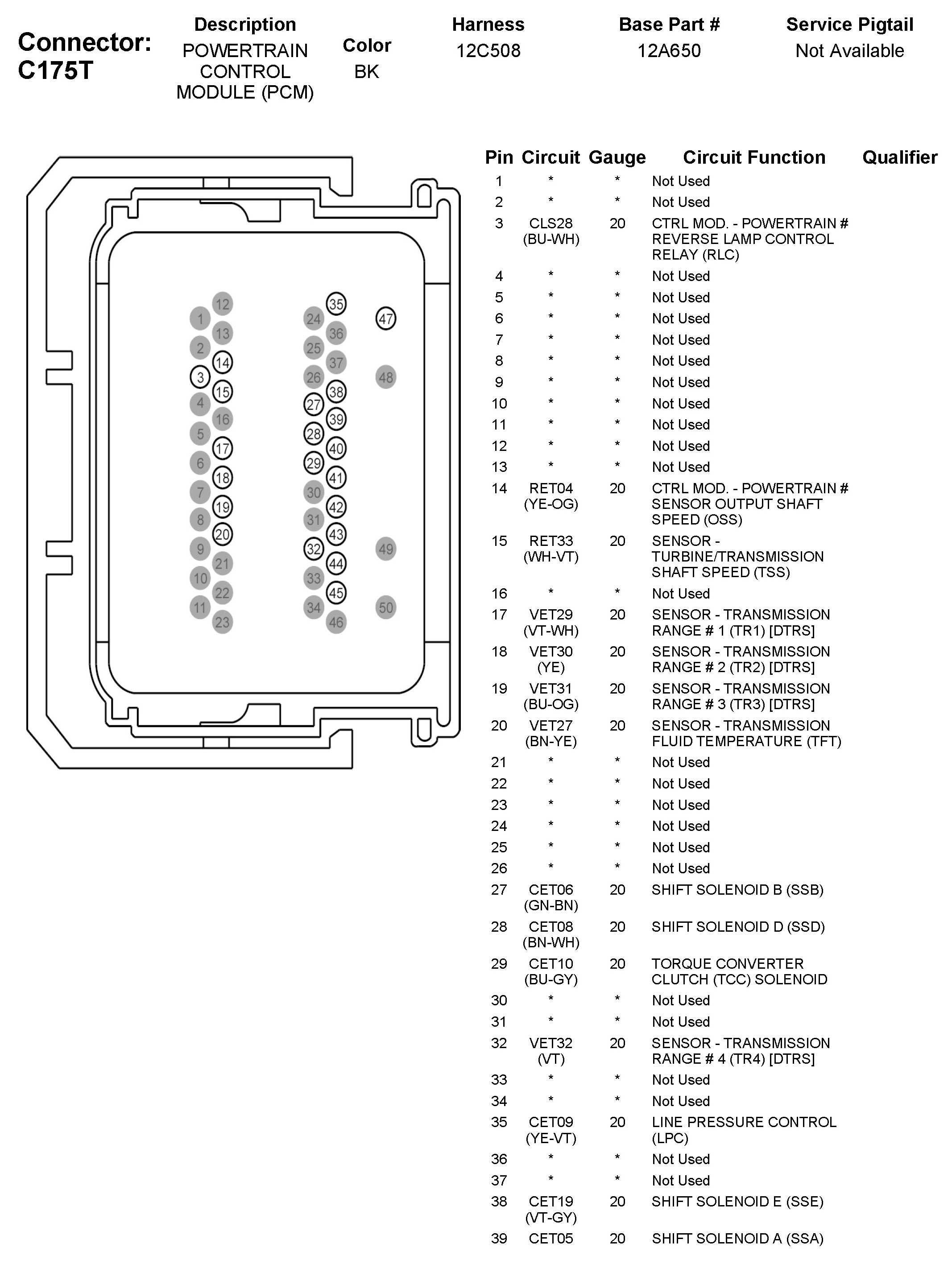

C175T Powertrain Control Module (PCM)
C175T Powertrain Control Module (PCM)
