Parking Brake System: Adjustments

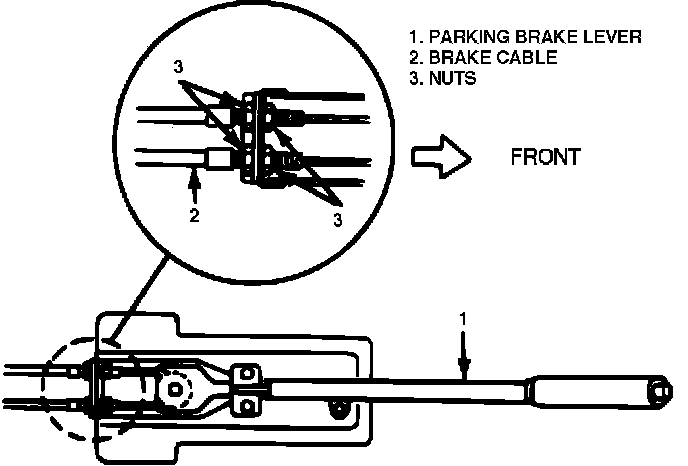

Fig. 5 Parking Brake Adjustment:
On 1989-91 models, parking brake lever should be adjusted so lever comes up 4 to 9 notches with 44 to 55 lbs. of pull applied.
Adjust travel by loosening adjustment nuts, Fig. 5.
On 1989-91 models, parking brake lever should be adjusted so lever comes up 4 to 9 notches with 44 to 55 lbs. of pull applied.
Adjust travel by loosening adjustment nuts, Fig. 5.
