Inner Constant Velocity Joint & Seal

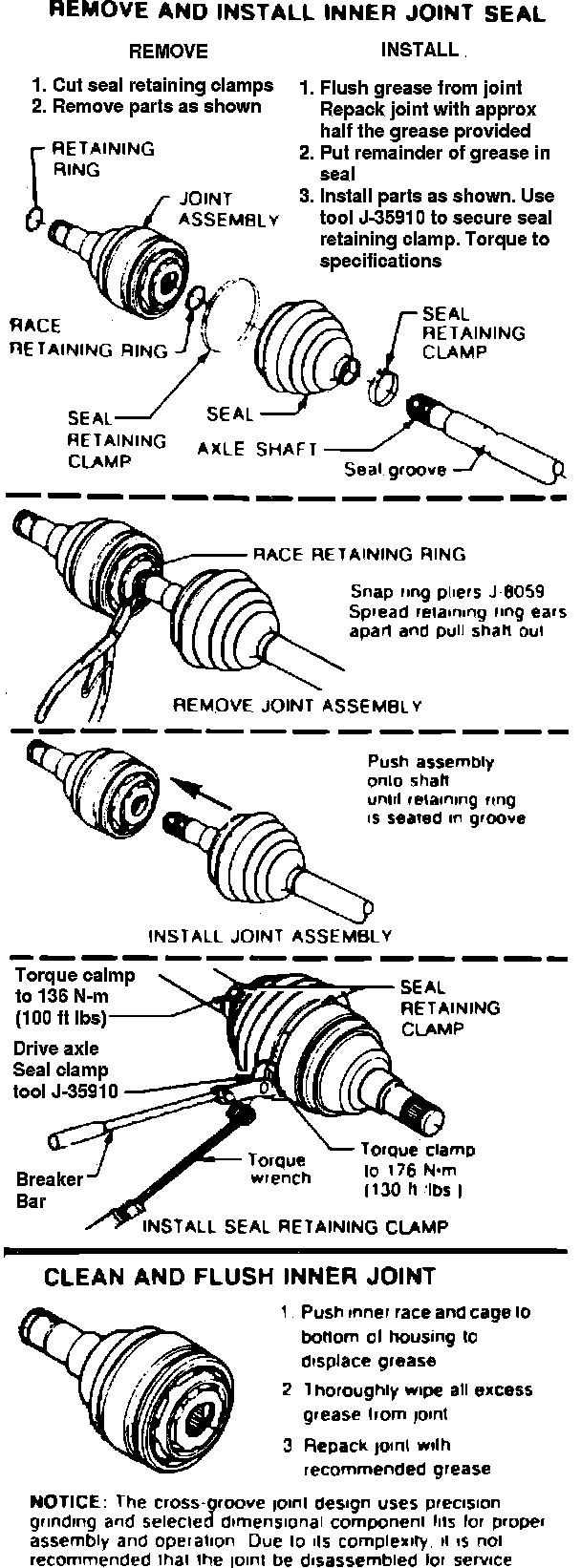

Fig. 27 Cross Groove Inner Joint Seal Removal And Installation. Models w/Cross Groove Inner Joint:






For removal and installation procedures refer to Fig. 27.
