Overhaul

Front Bumper Disassembly/Reassembly

NOTE: Take care not to scratch the front bumper faces.

1. Remove the front bumper Front Bumper.

2. Remove the clips, then separate the front bumper upper face (A) from the front bumper lower face (B).

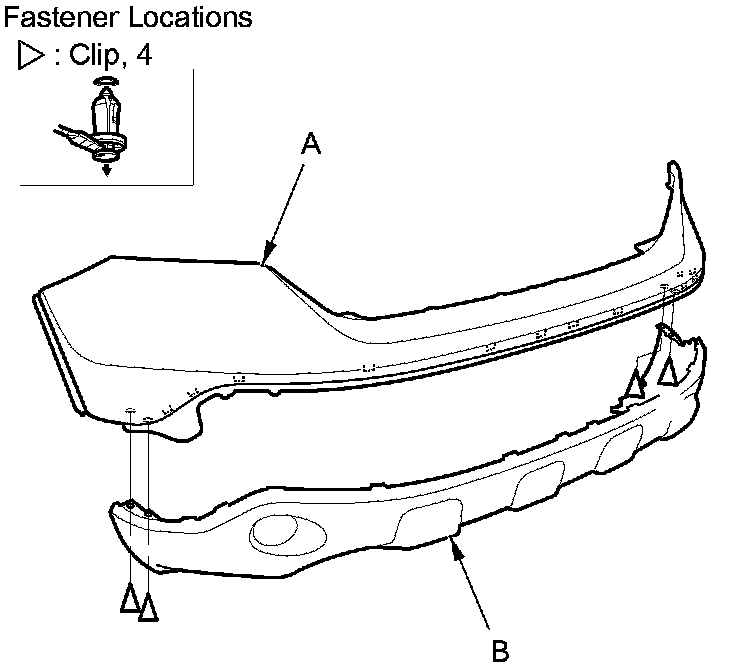

'07-09 models

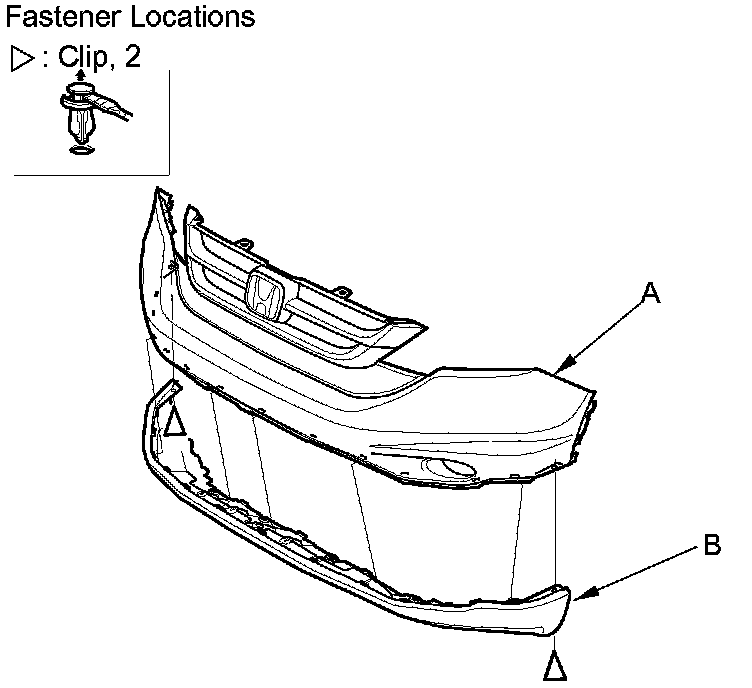

'10-11 models





3. Reassemble the front bumper in the reverse order of disassembly, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
