Cabin Ventilation Duct: Service and Repair

Rear Air Outlet Replacement

NOTE: Take care not to scratch the body or the related parts.

1. Remove the rear bumper Removal and Replacement.

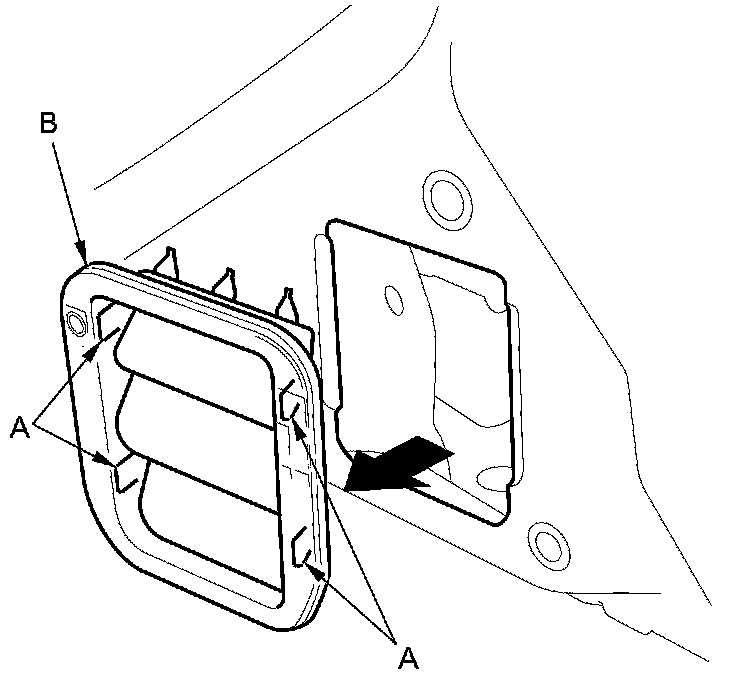

2. Release the hooks (A), then remove the rear air outlet (B).





3. Install the air outlet by pushing on the hook portions until the hooks snap into place.
