Fuel Door: Service and Repair

Fuel Cap Adapter Replacement

NOTE: Take care not to scratch the body.

1. Remove the fuel pipe protector Fuel Pipe Protector Replacement.

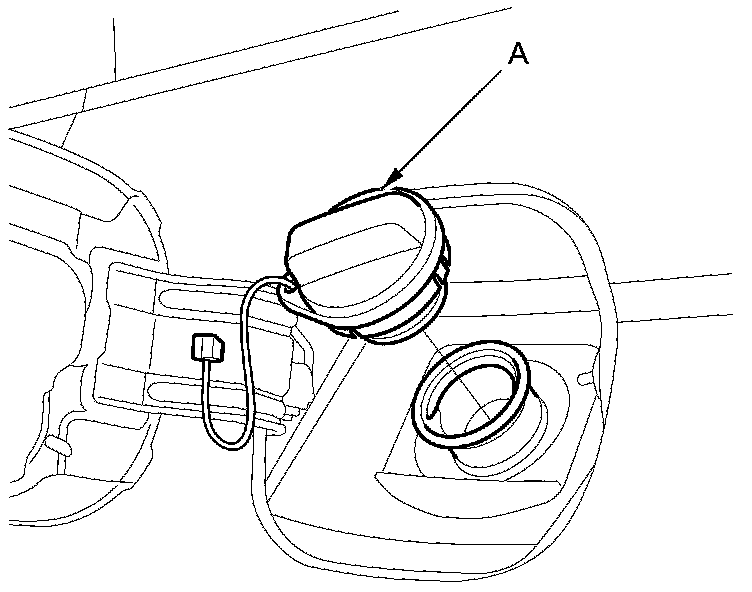

2. Remove the cap (A) by turning it counterclockwise.

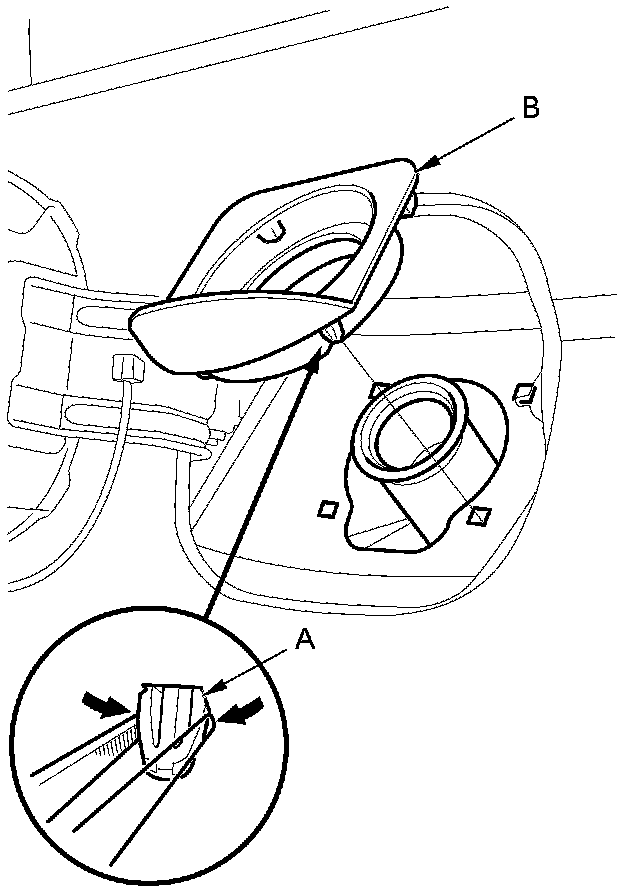

3. From under the body, push out the hooks (A). Then turn the fuel cap adapter (B), and remove it from the fuel pipe.





4. Install the adapter in the reverse order of removal.
