Body Emblem: Service and Repair

Emblem/Sticker Replacement

NOTE: When removing the emblem/sticker, take care not to scratch the body or the glass.

1. To remove the front "H" emblem, remove the upper front grille.

- '07-09 models Upper Front Grille Replacement
- '10-11 models Upper Front Grille Replacement

2. To remove the rear "H" emblem, remove the rear license trim Service and Repair.

3. Clean the body surface where emblems are applied with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

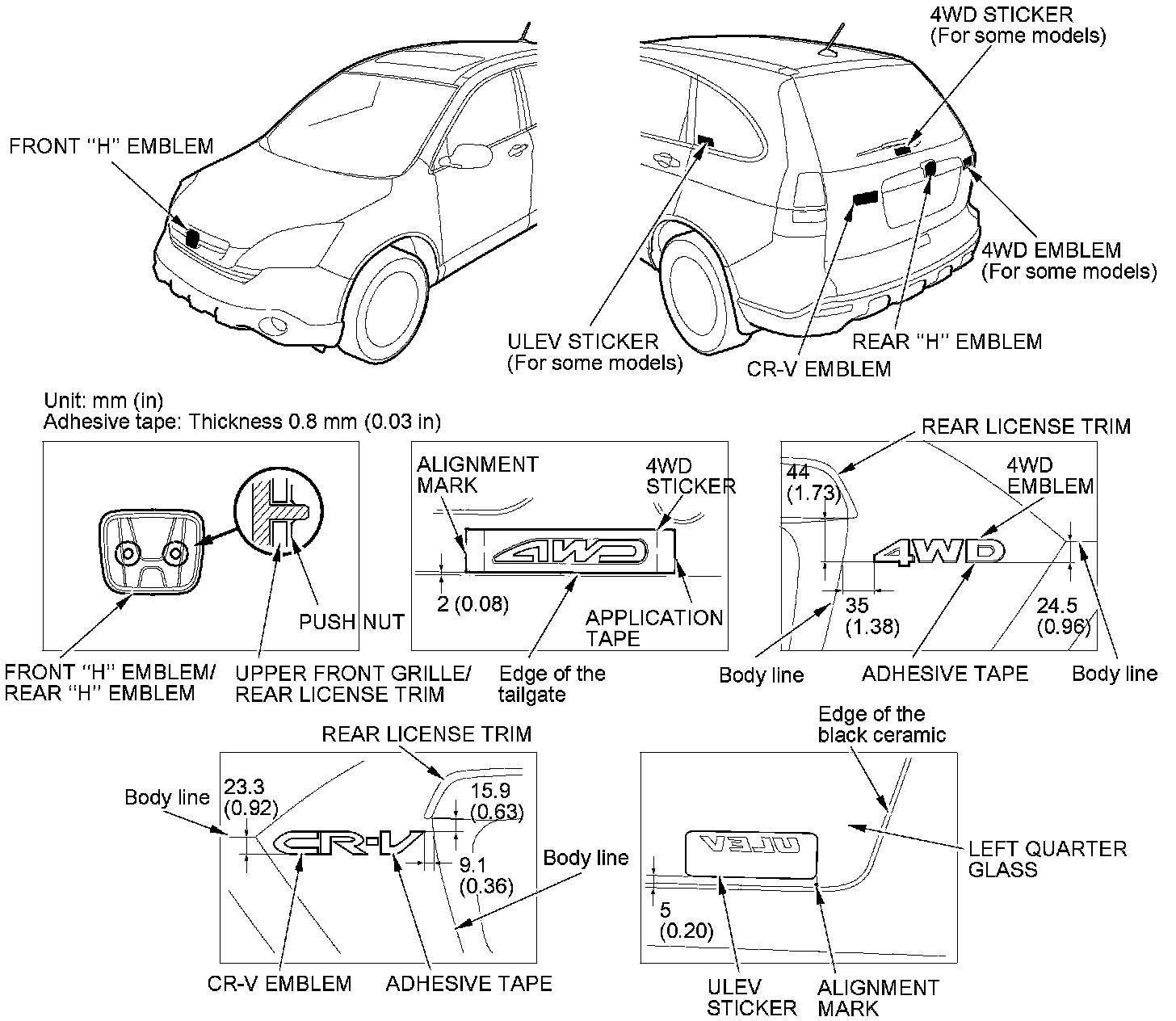

4. Apply the emblems/sticker where shown. When installing the ULEV sticker on the inside surface of the left quarter glass, align the sticker with the edge of the black ceramic as shown, then press the sticker into place, and remove the application tape.

5. After installing the front "H" emblem, reinstall the upper front grille.

- '07-09 models Upper Front Grille Replacement
- '10-11 models Upper Front Grille Replacement

6. After installing the rear "H" emblem, reinstall the rear license trim Service and Repair.
