Glove Compartment Lock: Service and Repair

Glove Box Striker Replacement

NOTE: Take care not to scratch the dashboard or the related parts.

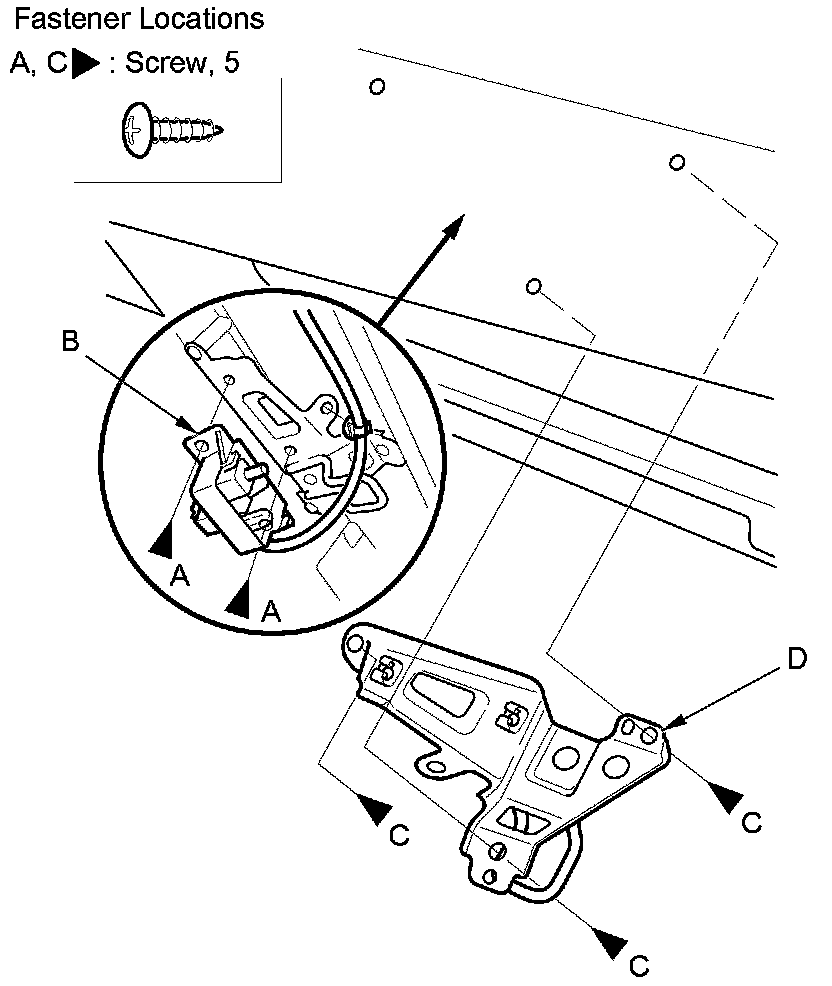

1. For some models: Remove the screws (A), then remove the glove box light (B).





2. Disconnect the glove box damper from the pivot on the glove box. While holding the glove box, release the glove box stop on each side from the dashboard by pushing them in Glove Box Removal/Installation.

3. Remove the screws (C), then remove the glove box striker (D).

4. Install the striker in the reverse order of removal.
