Power Mirror Replacement

Power Mirror Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the door or related parts.

1. Raise the door glass fully.

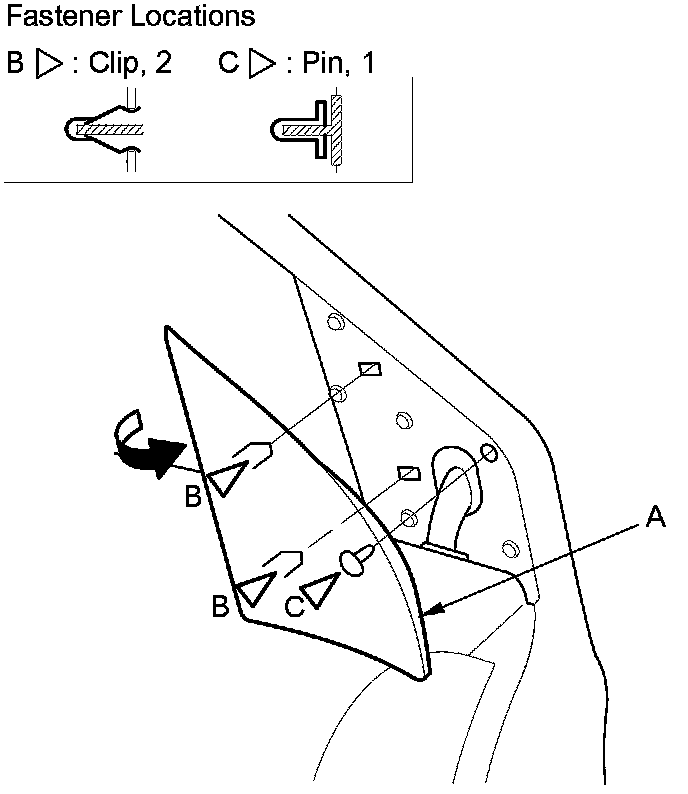

2. Pry up on the edge of the mirror mount cover (A) with a trim tool to detach the clips (B), and gently pull out the cover to detach the pin (C) from the door.





3. Remove the front door panel Service and Repair.

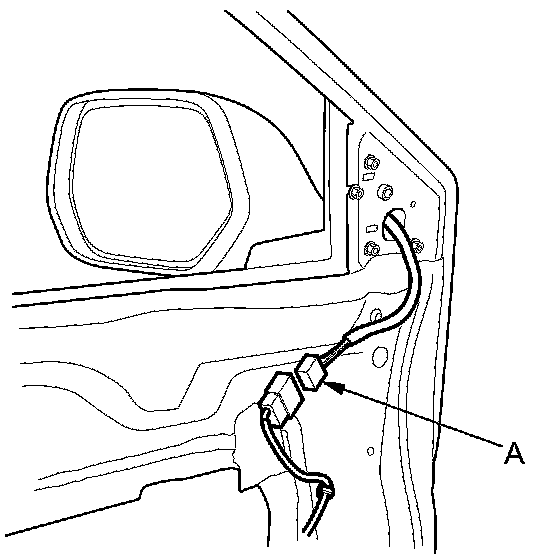

4. Disconnect the connector (A).

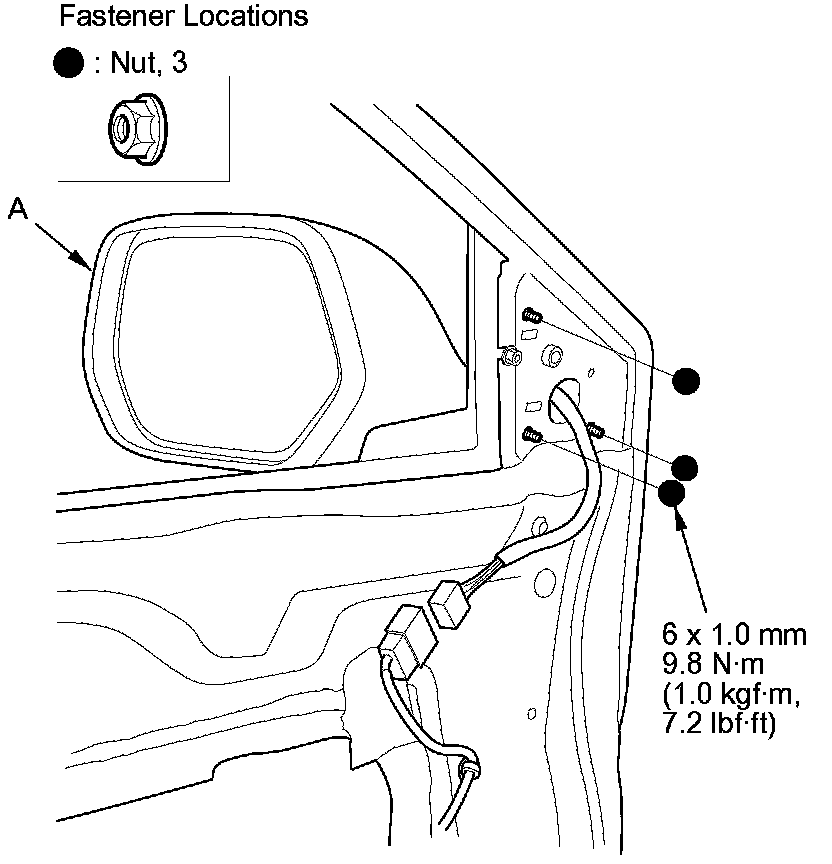

5. While holding the mirror (A) remove the nuts securing the mirror.

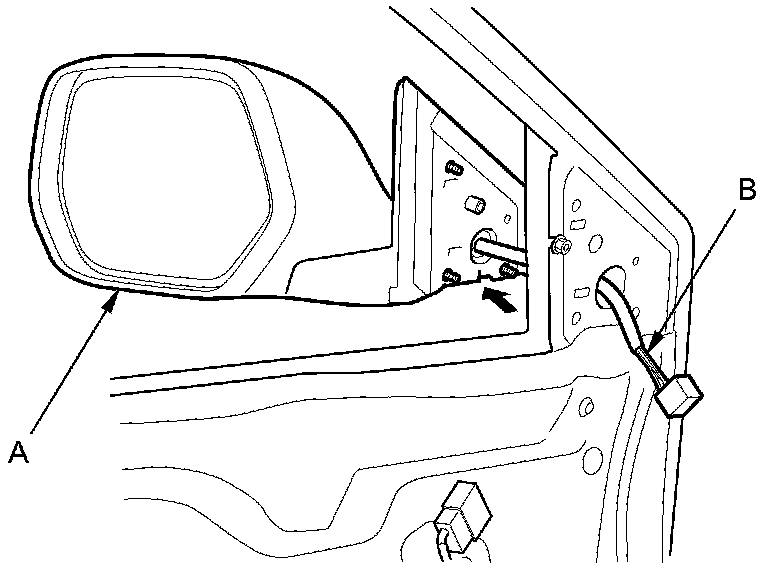

6. While holding the mirror (A), pull the harness (B) out through the hole in the door. Take care not to scratch the door.





7. Install the mirror in the reverse order of removal, and note these items:

- Make sure the connector is plugged in properly.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
- Make sure the plastic cover on the door is installed properly and sealed around its outside perimeter to seal out water.
