Driver's Power Seat Motor Test (EX-L Model)

Driver's Power Seat Motor Test

NOTE: SRS components are located in the area. Review the SRS component locations Locations, and precautions and procedures Service and Repair before doing repairs or servicing.

1. Remove the driver's seat Front Seat Removal/Installation.

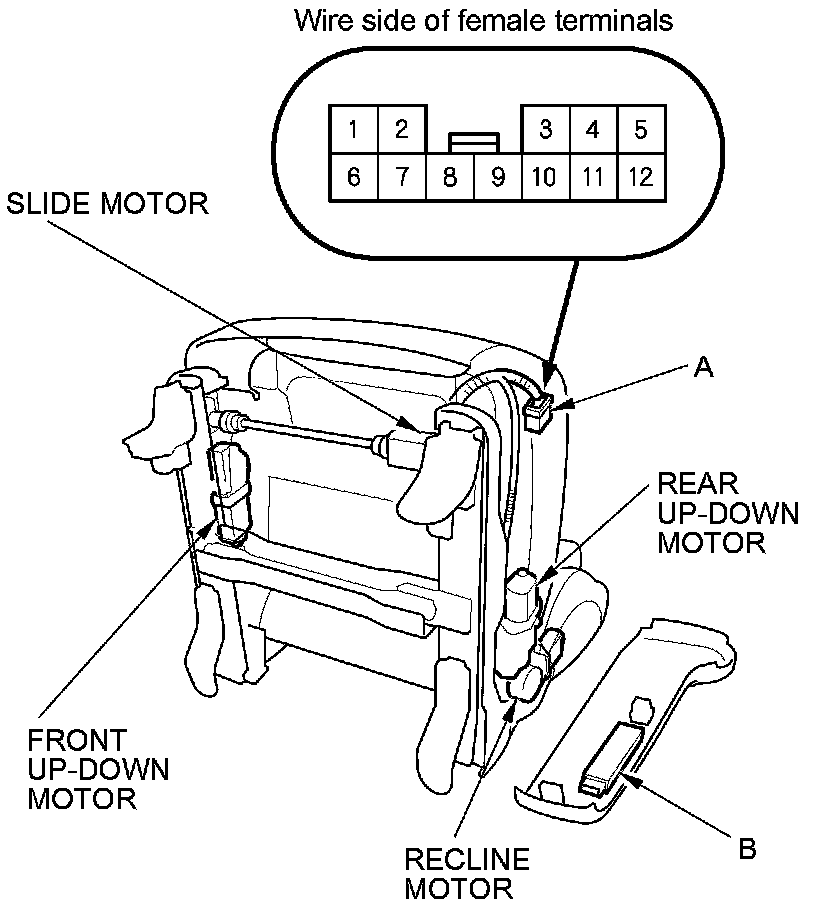

2. Disconnect the 12P connector (A) from the power seat adjustment switch (B).






3. Test each motor by connecting battery power and ground to the terminals.

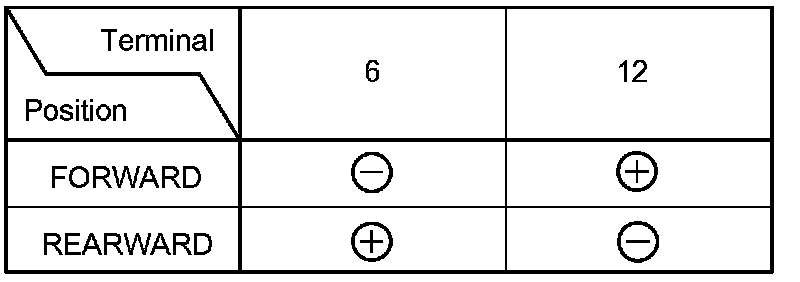

Slide motor

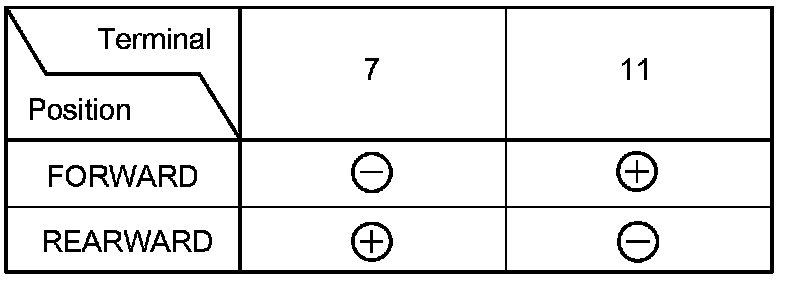

Recline motor

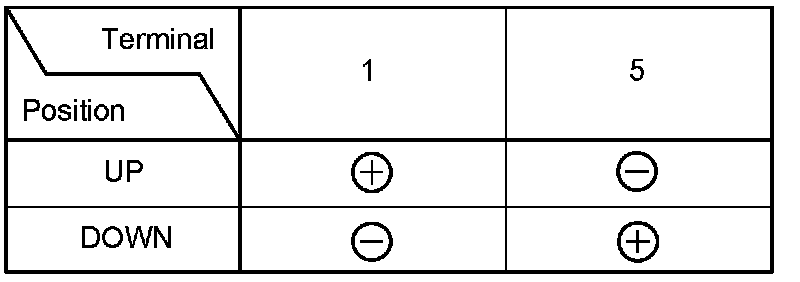

Front up-down motor

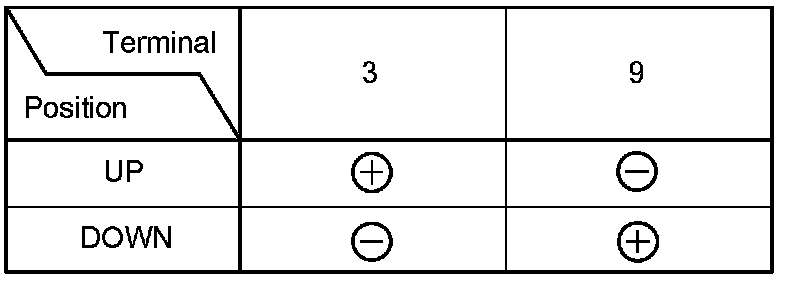

Rear up-down motor





4. If the motor does not run or fails to run smoothly, check for an open in the driver's seat wire harness between the 12P connector and each motor connector. If the harness is OK, replace the motor Front Seat Frame Replacement - Driver's Seat.
