Rear Seat Armrest Beverage Holder Replacement

Rear Seat Armrest Beverage Holder Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to tear the seams or damage the seat covers.

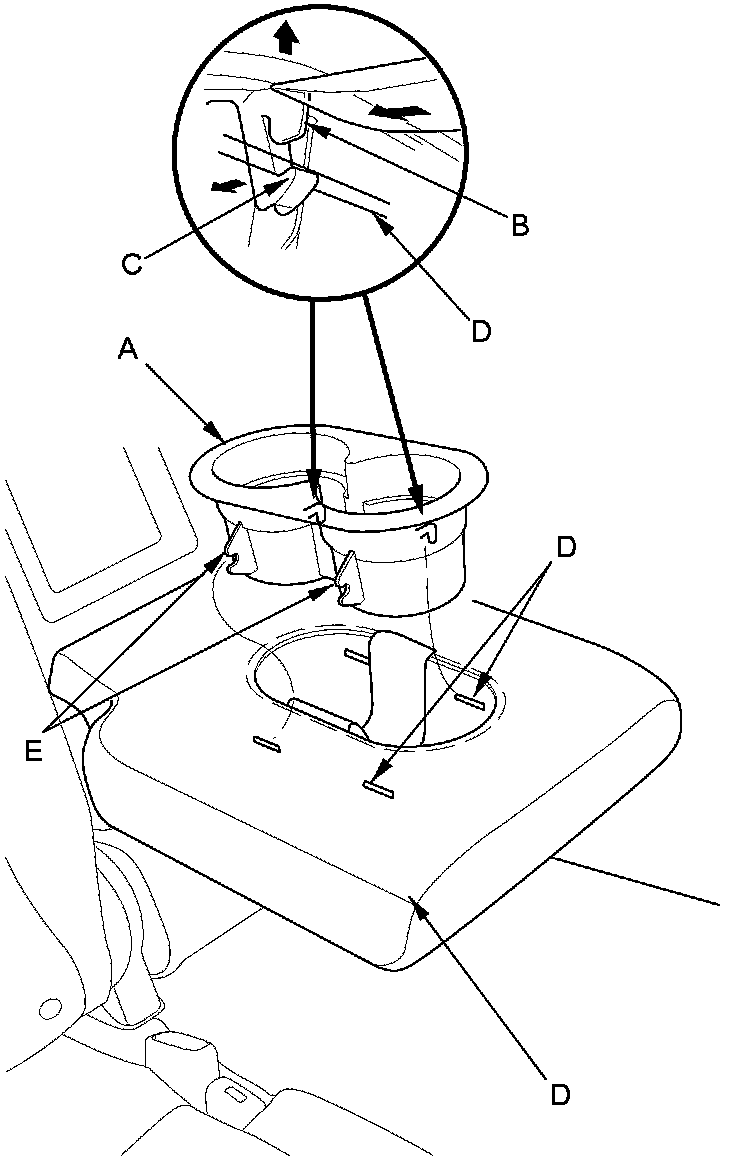

1. Remove the beverage holder (A).

1. Using a trim tool, push on the bottom ribs (B) of the left side hooks (C) to pull up the holder, then release the hooks from the wire (D).

2. Release the right side hooks (E) from the wire, then remove the holder.





2. Install the beverage holder in the reverse order of removal. Make sure the right side hooks of the beverage holder are installed securely on the wire, then push down on the holder, and install the left side hooks on the wire securely.
