Rear Seat Armrest Removal/Installation

Rear Seat Armrest Removal/Installation

NOTE: Take care not to tear or damage the seat covers.

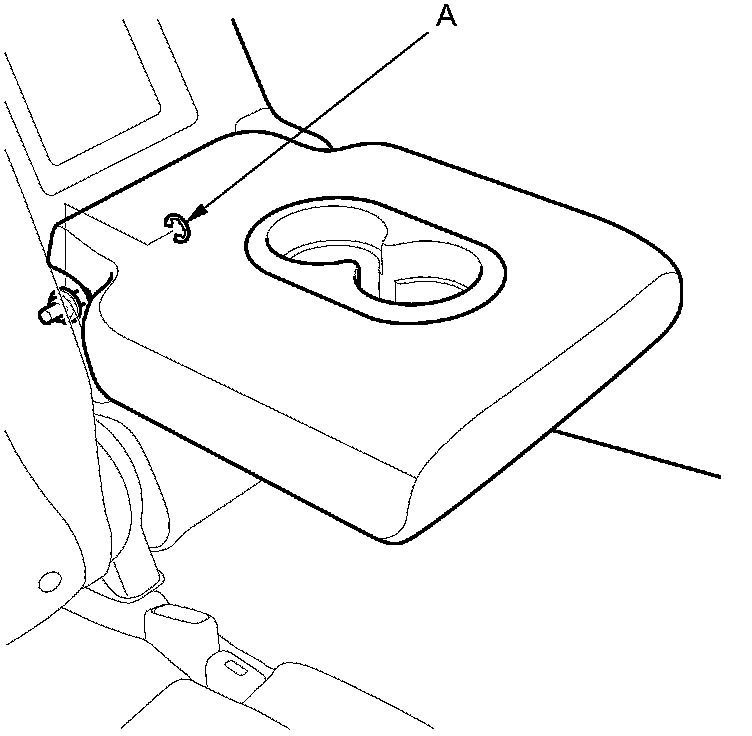

1. Remove the E-ring (A) from the right side portion on the armrest pivot.

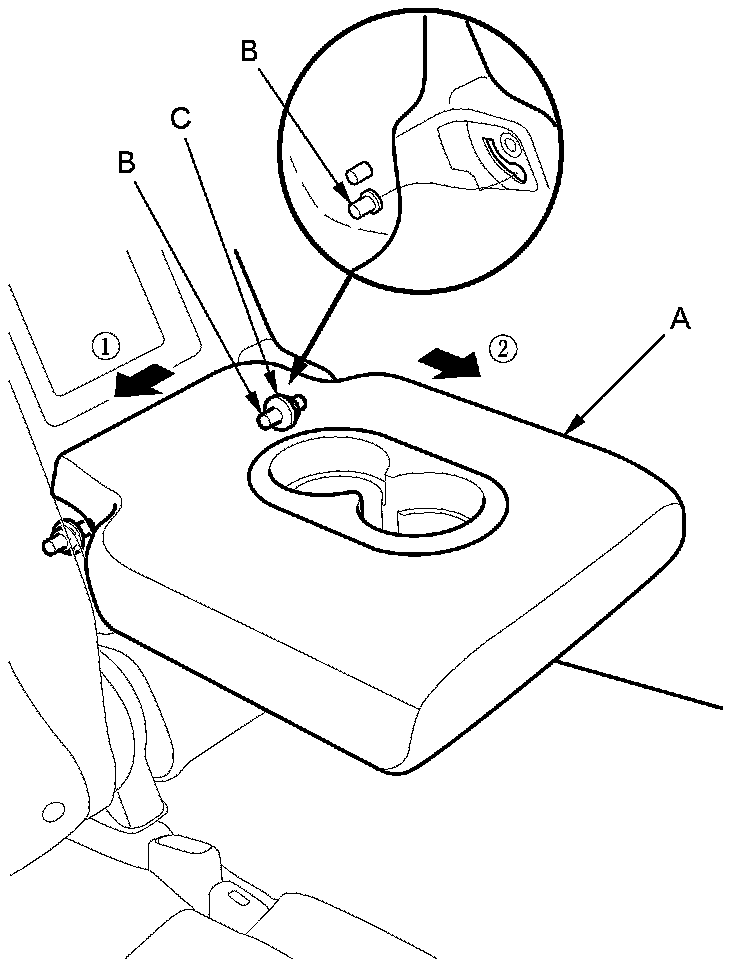

2. Slide the armrest (A) toward the right side, then release the left pivot shaft (B) from the bushing (C).

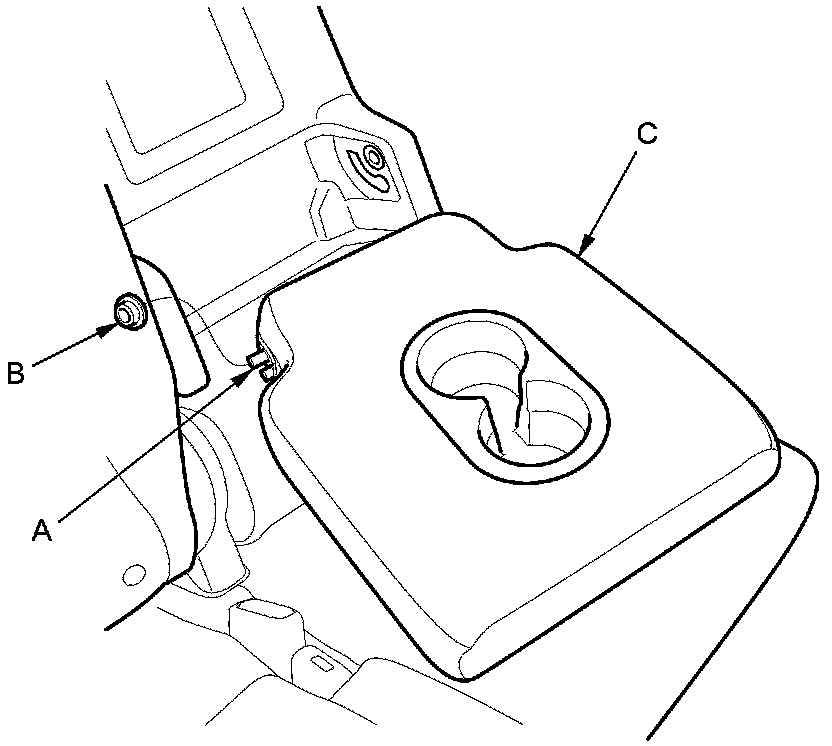

3. Release the right pivot shaft (A) from the bushing (B) by pulling the armrest back, and remove the armrest (C).





4. If necessary, remove the bushings from both sides of the frame.

5. Install the armrest in the reverse order of removal.
