Brake Master Cylinder: Testing and Inspection

Brake Master Cylinder Inspection

1. Remove the master cylinder Service and Repair.

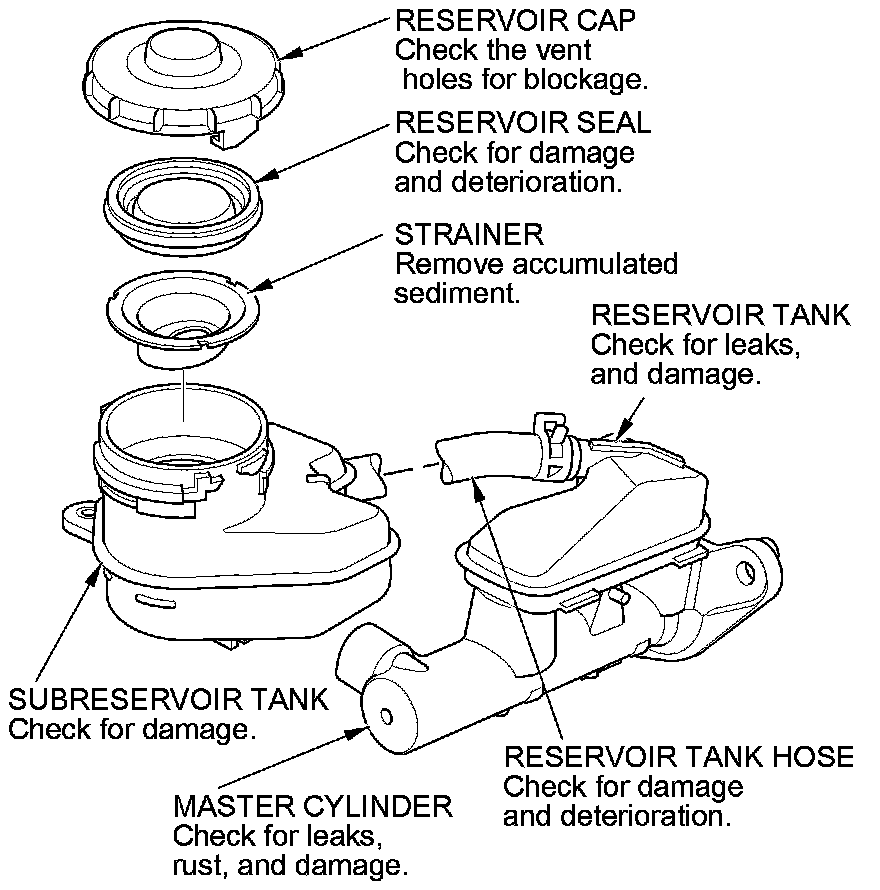

2. Inspect and note these items:

- Before reassembling, check that all parts are free of dirt and other foreign particles.
- Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary.
- Do not allow dirt or foreign matter to contaminate the brake fluid.

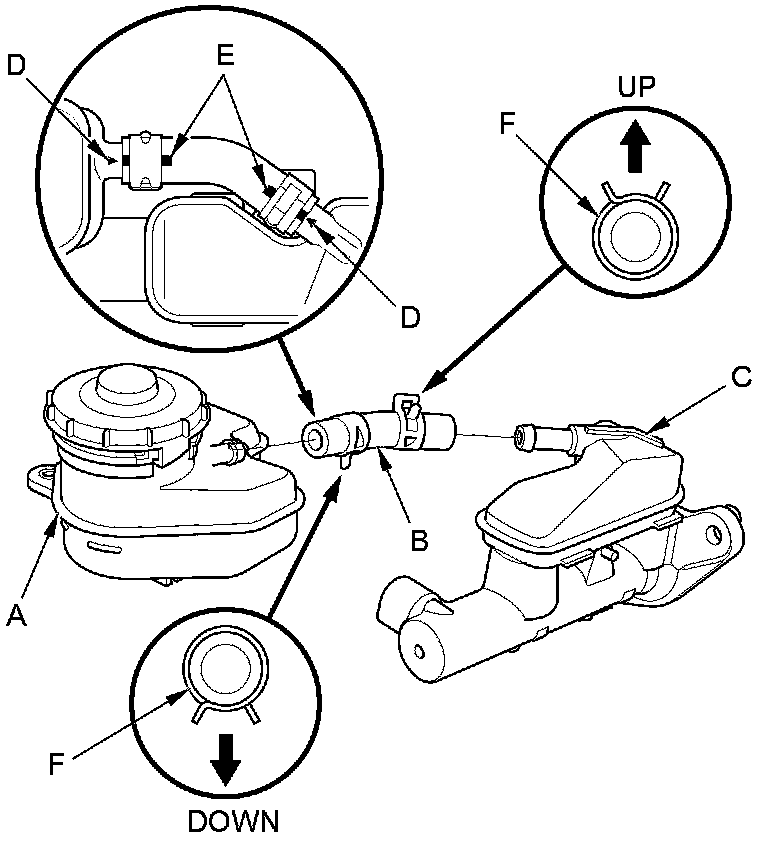

3. If the reservoir tank hose was disconnected, install the subreservoir tank (A) and the reservoir tank hose (B) to the reservoir tank (C).

NOTE:

- Align the raised arrows (D) on the subreservoir tank and reservoir tank with the paint marks (E) on the hose.
- Position the direction of the clamps (F) as shown.





4. Install the master cylinder Service and Repair.
