Honda Truck
>>
2010
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

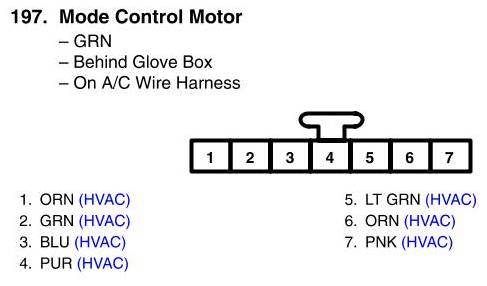

View 197 - Mode Control Motor Connector View
View 197 - Mode Control Motor Connector View
