Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
CR-V 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

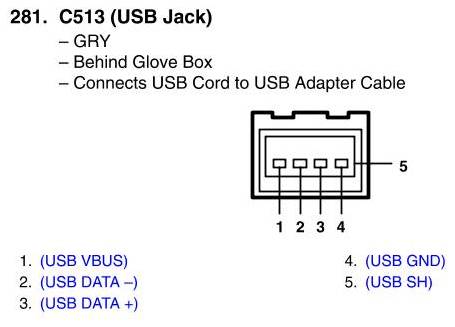

View 281 - C513 Connector View (USB Jack)
View 281 - C513 Connector View (USB Jack)
