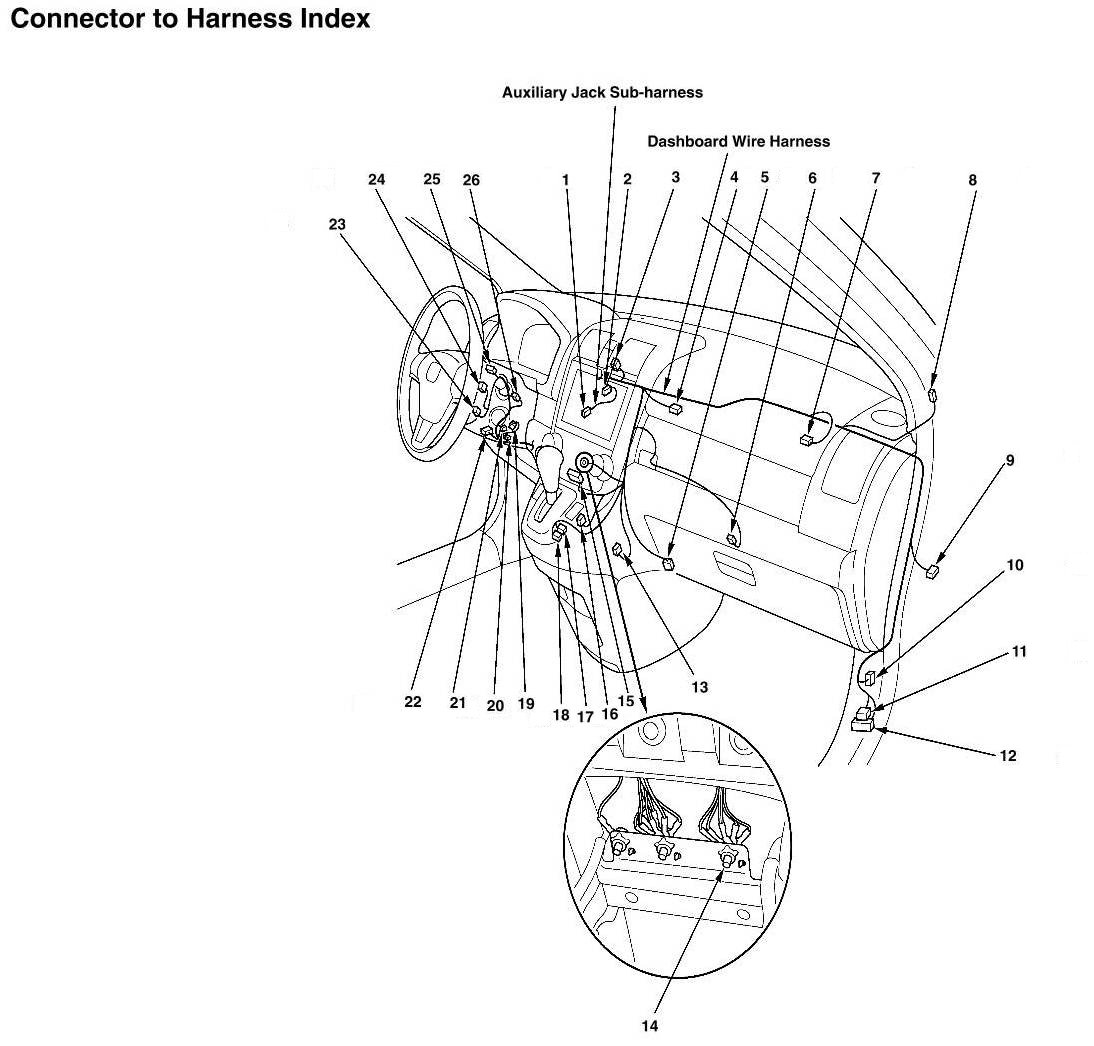

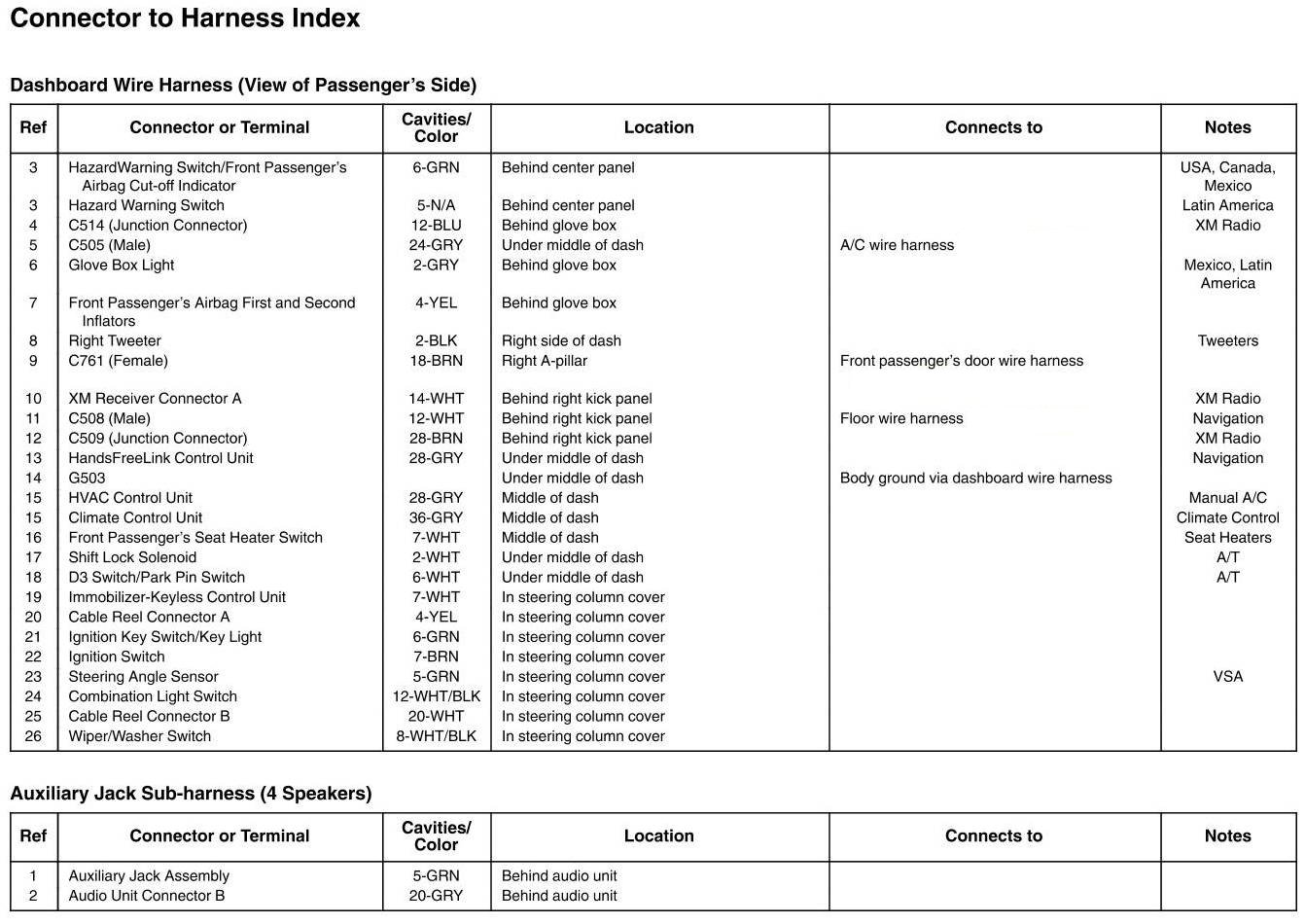

Dashboard Wire Harness (Passenger's Side) And Auxiliary Jack Sub-harness Connector And Harness Locations
Dashboard Wire Harness (Passenger's Side) And Auxiliary Jack Sub-harness Connector And Harness Locations
