Drive Belt Auto-Tensioner Pulley Replacement

Drive Belt Auto-tensioner Pulley Replacement

1. Remove the drive belt Service and Repair.

2. Remove the power steering (P/S) fluid reservoir from the holder.

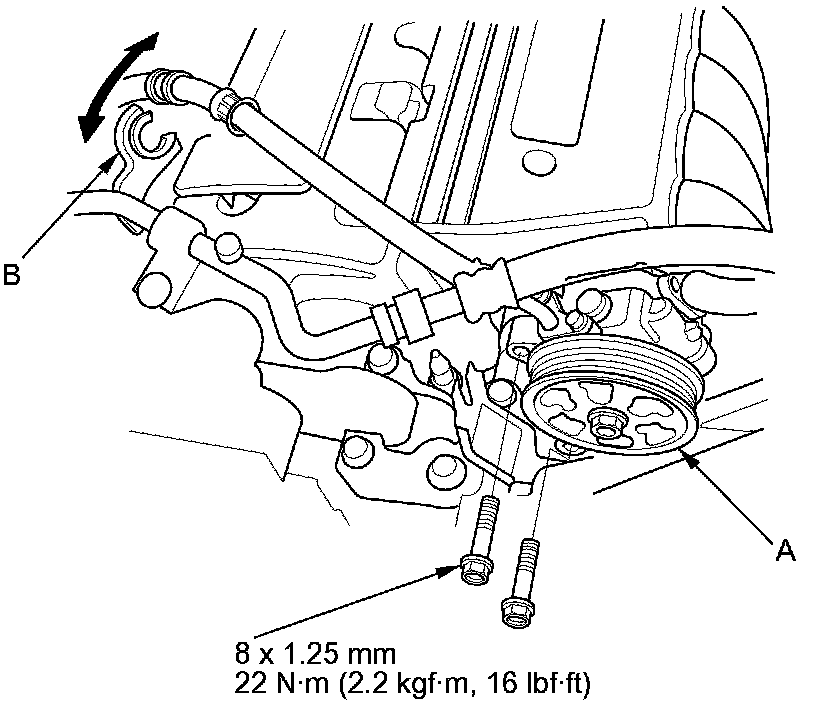

3. Remove the P/S pump (A) without disconnecting the P/S hoses, then remove the P/S hose from the clamp (B).

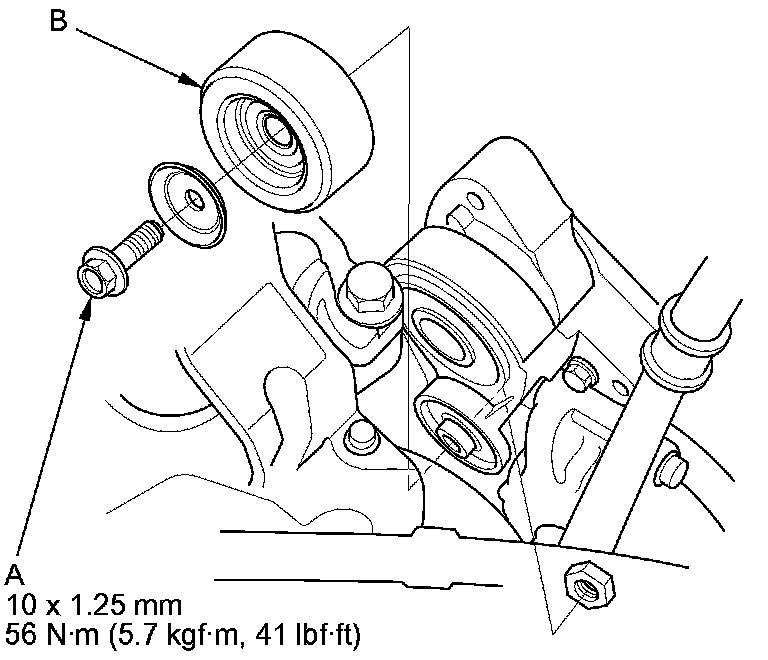

4. Remove the tensioner pulley bolt (A), then remove the tensioner pulley (B).






5. Install the tensioner pulley in the reverse order of removal.
