Tail Lamp: Service and Repair

Taillight Replacement

1. Open the tailgate.

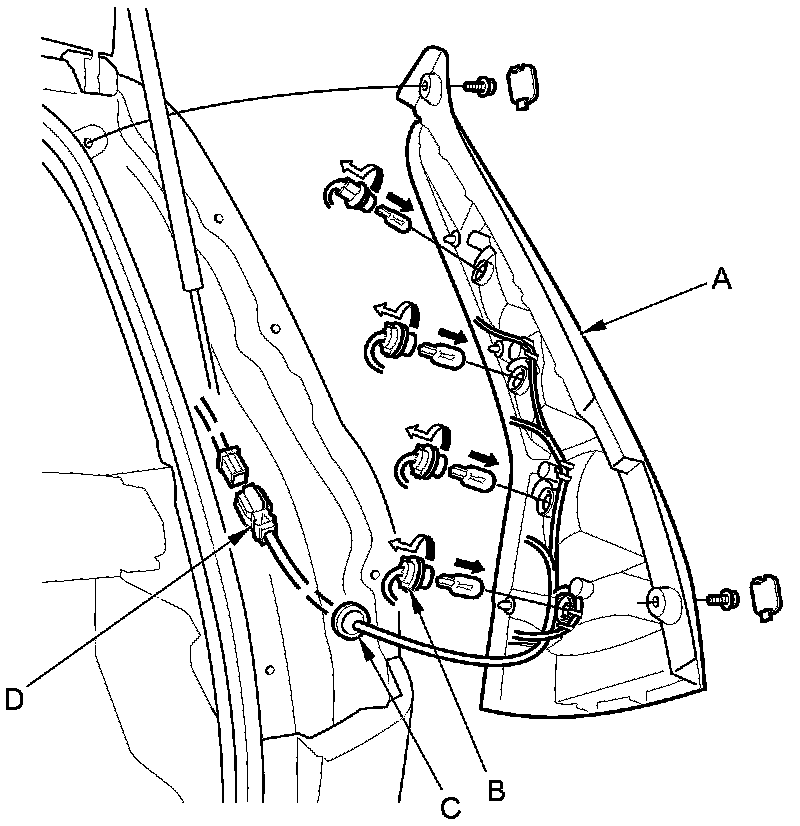

2. Remove the caps and mounting bolts from the taillight (A), then carefully pull off the taillight.









3. Turn the bulb sockets (B) 45 ° counterclockwise to remove them from the housing.

4. If replacement of the taillight harness is necessary, remove the grommet (C), and disconnect the 6P connector (D) from the side wire harness.

5. Install the taillight in the reverse order of removal.
