Side Airbag Replacement

Side Airbag Replacement

NOTE: If replacing the side airbag after deployment, refer to Component Replacement/Inspection After Deployment Service and Repair for a complete list of other parts that must also be replaced.

Removal

1. Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes before starting work.

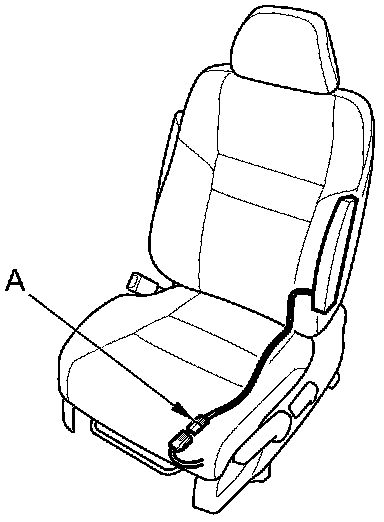

2. Disconnect the side airbag inflator 2P connector (A).





3. Remove the front seat Front Seat Removal/Installation and seat-back cover Front Seat-back Cover/Pad Replacement.

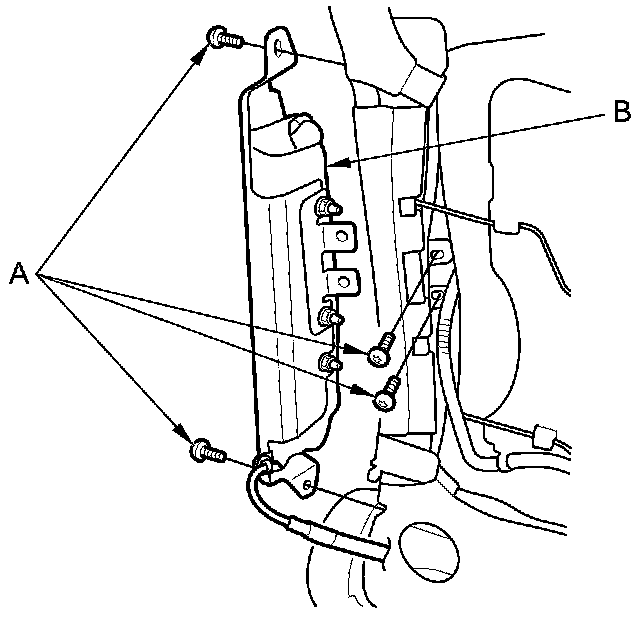

4. Remove the mounting bolts (A), then remove the side airbag (B).






Installation

NOTE:

- If the side airbag lid is secured with tape, remove the tape.
- Use new mounting bolts tightened to the specified torque.
- Make sure that the seat-back cover is installed properly. Improper installation may prevent proper deployment.
- Be sure to install the harness so that it is not pinched or interfering with other parts.

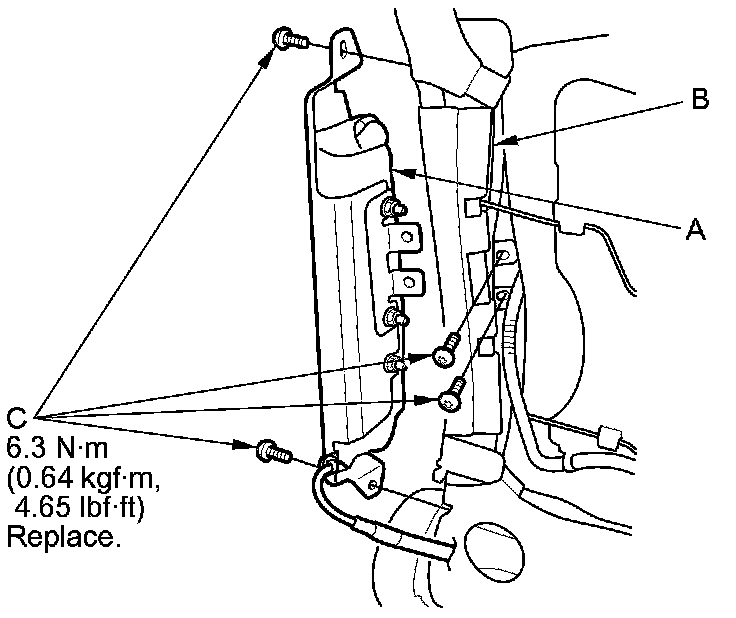

1. Place the side airbag (A) on the seat-back frame (B). Tighten a new side airbag mounting bolts (C).





2. Install the seat-back cover in the reverse order of removal Front Seat-back Cover/Pad Replacement.

3. Install the front seat Front Seat Removal/Installation, then connect the side airbag inflator 2P connector.

4. Move the front seat and the seat-back through their full ranges of movement, making sure the harness are not pinched or interfering with other parts.

5. Do the battery terminal reconnection procedure Procedures.

6. Clear any DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

7. After installing the side airbag, confirm proper system operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then go off.
