A/T Differential Carrier And Final Driven Gear Replacement

A/T Differential Carrier and Final Driven Gear Replacement

2WD

NOTE: Inspect and adjust the carrier bearing preload whenever the carrier is replaced.

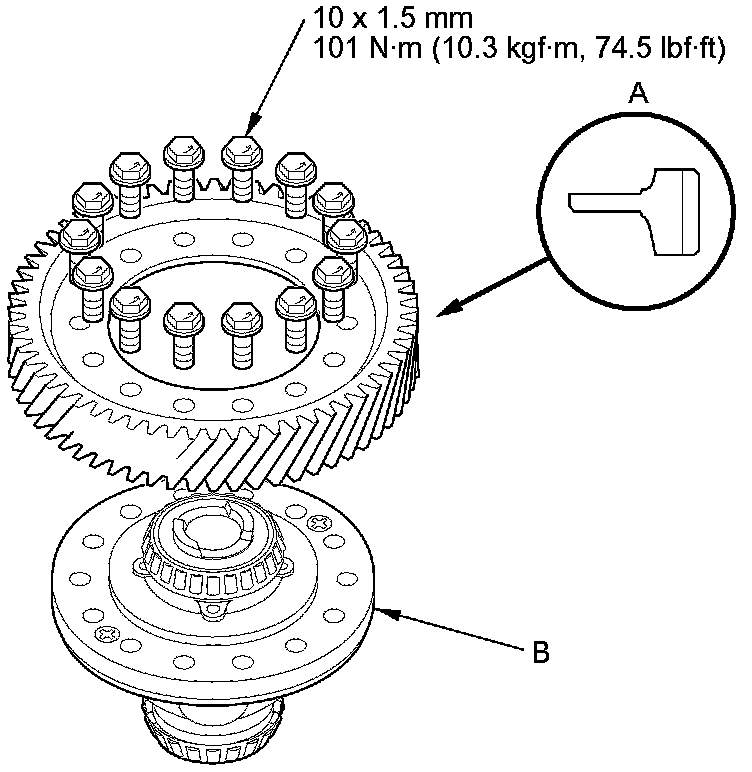

1. Remove the final driven gear (A) from the differential carrier (B).

NOTE: The final driven gear bolts have left-hand threads.





2. Install the final driven gear on the differential carrier in the direction shown.

3. Secure the final driven gear and the differential carrier with the bolts. Tighten the bolts to the specified torque in a crisscross pattern in two or more steps.
