Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Remove the right inner fender Front Inner Fender Replacement.

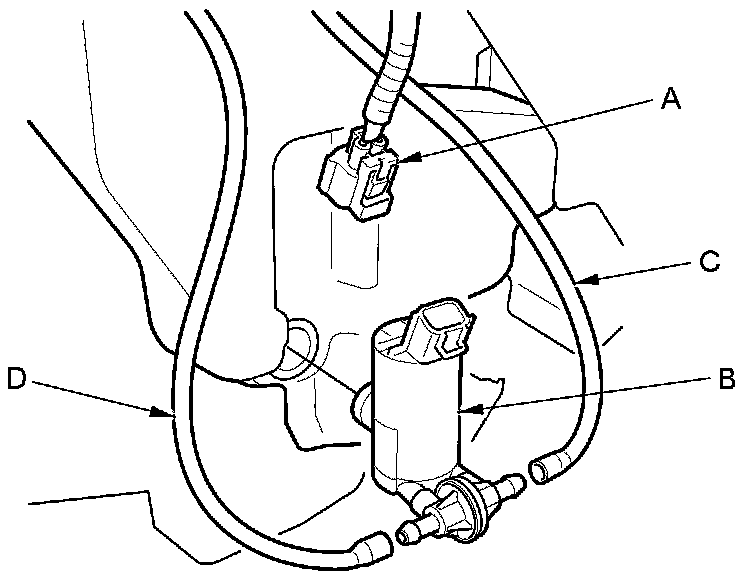

2. Disconnect the 2P connector(s) (A) from the washer motor (B) and the washer fluid level switch (Canada models).





3. Disconnect the windshield washer tube (C) and the rear window washer tube (D).

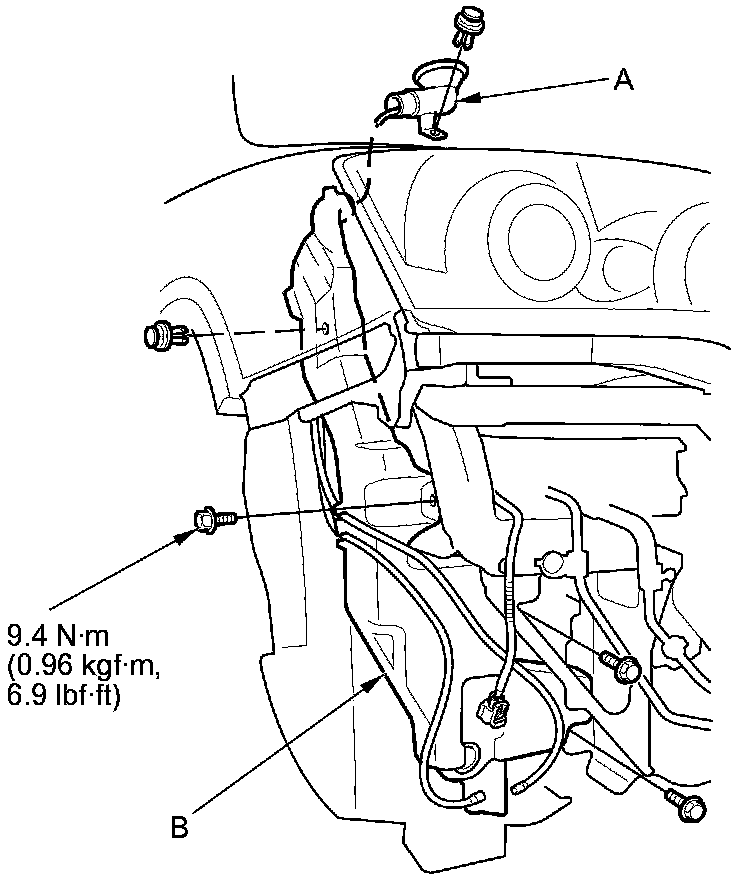

4. Remove the clip from the filler neck (A), then disconnect the filler neck.





5. Remove the clip and bolts, then remove the washer reservoir (B).

6. Install the washer reservoir in the reverse order of removal.
