B1078

DTC Troubleshooting: B1078, B1079

DTC B1078:

Daytime Running Light for Canada Circuit Malfunction

DTC B1079:

Daytime Running Light for America Circuit Malfunction

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

1. Turn the ignition switch to ON (II).

2. Pull the parking brake lever.

3. Clear the DTCs with the HDS.

4. Release the parking brake lever.

5. Turn the ignition switch to LOCK (0), and then back to ON (II).

6. Check for DTCs with the HDS.

Is DTC B1078 (Canada) or B1079 (USA) indicated?

YES -

Go to step 7.

NO -

Intermittent failure, the daytime running lights system is OK at this time. Check for loose or poor connections.�

7. Turn the headlight switch to ON (high beam).

Do both headlights (high beam) come on?

YES -

Go to step 8.

NO -

Go to step 10.

8. Turn the ignition switch to LOCK (0).

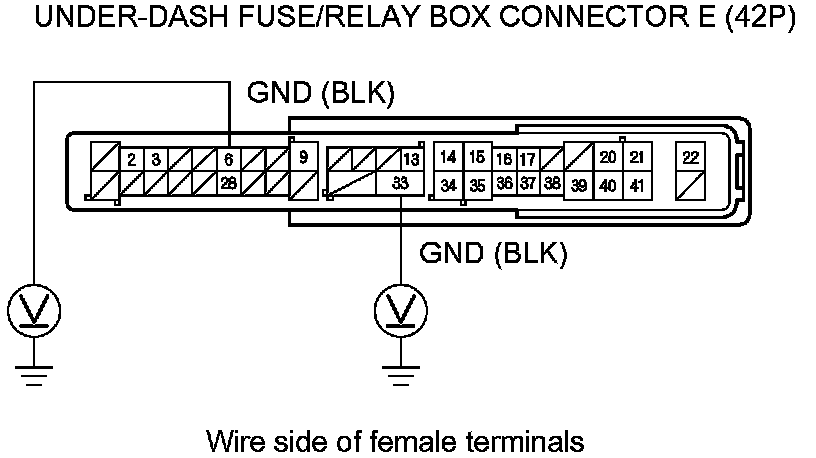

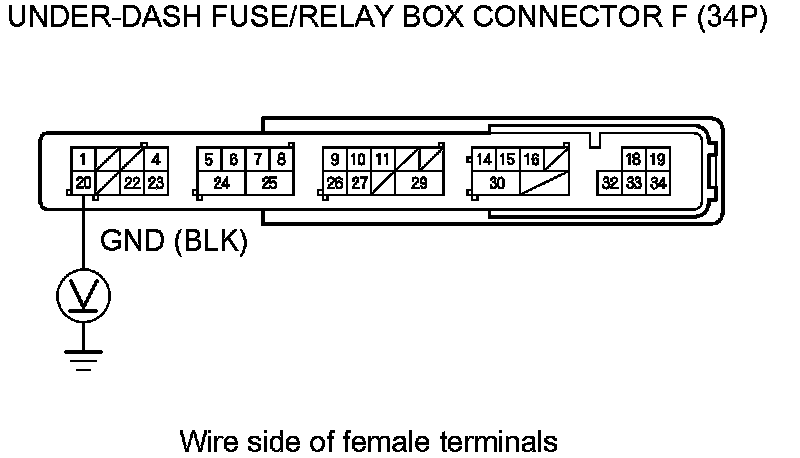

9. Measure the voltage between body ground and under-dash fuse/relay box connector E (42P) terminals No. 6 and No. 33, and between body ground and under-dash fuse/relay box connector F (34P) terminal No. 20 individually.









Is there less than 0.2 V?

YES -

Faulty MICU; replace the under-dash fuse/relay box Under-dash Fuse/Relay Box Removal/Installation.�

NO -

Repair an open or high resistance in the BLK wire or poor ground (G401 and G602).�

10. Turn the ignition to LOCK (0) and headlight switches OFF.

11. Check the No. 12, No. 13, and No. 18 fuses in the under-dash fuse/relay box.

Are all of the fuses OK?

YES -

Go to step 12.

NO -

Replace the blown fuse and recheck. If the No. 18 (20 A) fuse is blown again, replace the under-dash fuse/relay box. If the No. 12 (10 A) or No. 13 (10 A) fuse is blown again, repair a short in the wire between the under-dash fuse/relay box and the appropriate headlight (high beam).�

12. Check the headlight bulbs.

Are the headlight bulbs OK?

YES -

Go to step 13.

NO -

Replace the faulty bulb.�

13. Disconnect under-dash fuse/relay box connectors F (34P) and G (21P).

14. Disconnect both of the headlight 3P connectors.

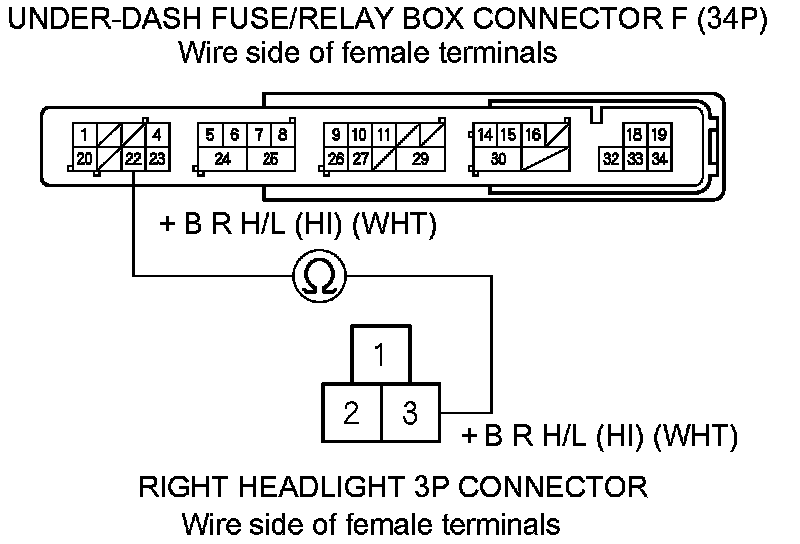

15. Check for continuity between right headlight 3P connector terminal No. 3 and under-dash fuse/relay box connector F (34P) terminal No. 22.





Is there continuity?

YES -

Go to step 16.

NO -

Repair an open in the wire between the right headlight (high beam) and the under-dash fuse/relay box.�

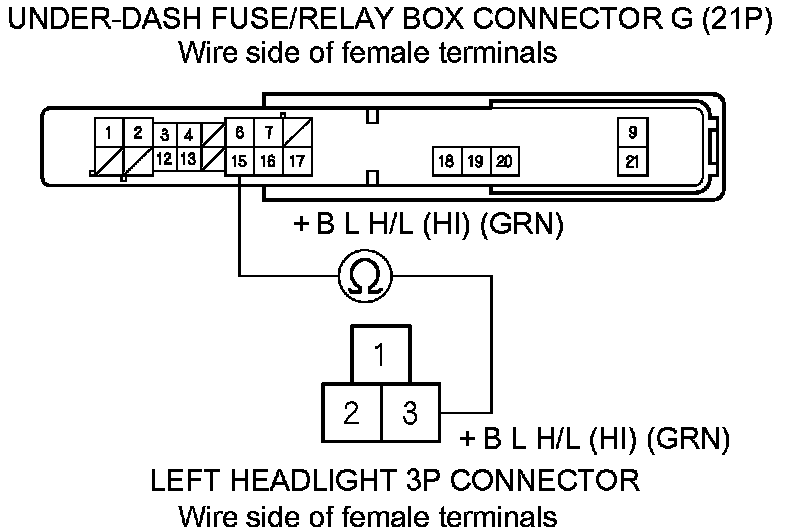

16. Check for continuity between left headlight 3P connector terminal No. 3 and under-dash fuse/relay box connector G (21P) terminal No. 15.





Is there continuity?

YES -

Go to step 17.

NO -

Repair an open in the wire between the left headlight (high beam) and the under-dash fuse/relay box.�

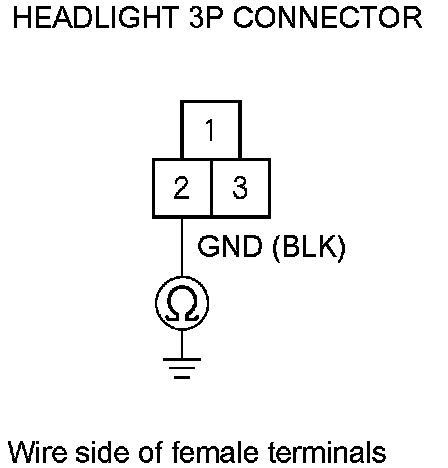

17. Check for continuity between each headlight 3P connector terminal No. 2 and body ground.





Is there continuity?

YES -

Faulty MICU; replace the under-dash fuse/relay box Under-dash Fuse/Relay Box Removal/Installation.�

NO -

Repair an open or high resistance in the BLK wire or poor ground (G301).
