Manufacturer Code Charts: 113

VSA DTC Troubleshooting: 113

DTC 113:

Yaw Rate-lateral Acceleration Sensor (Power Supply)

1. Check the No. 4 (7.5A) fuse in the under-dash fuse/relay box.

Is the fuse OK?

YES -

Reinstall the checked fuse, then go to step 2 113.

NO -

Replace the fuse if it was blown, check for short to ground in the wire between No. 4 (7.5A) fuse in the under-dash fuse/relay box and the yaw rate-lateral acceleration sensor 4P connector.�

2. Turn the ignition switch to LOCK (0).

3. Disconnect the yaw rate-lateral acceleration sensor 4P connector Service and Repair.

4. Turn the ignition switch to ON (II).

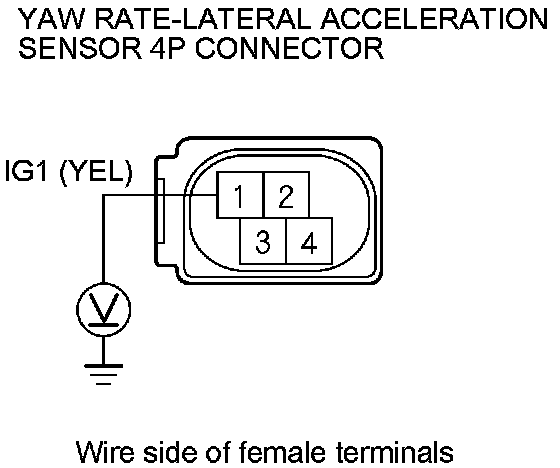

5. Measure the voltage between body ground and yaw rate-lateral acceleration sensor 4P connector terminal No. 1.





Is there battery voltage?

YES -

Replace the yaw rate-lateral acceleration sensor Service and Repair.�

NO -

Repair an open in the wire between the No. 4 (7.5 A) fuse in the under-dash fuse/relay box and the yaw rate-lateral acceleration sensor.�
