Auxiliary Jack Assembly Replacement

Auxiliary Jack Assembly Replacement

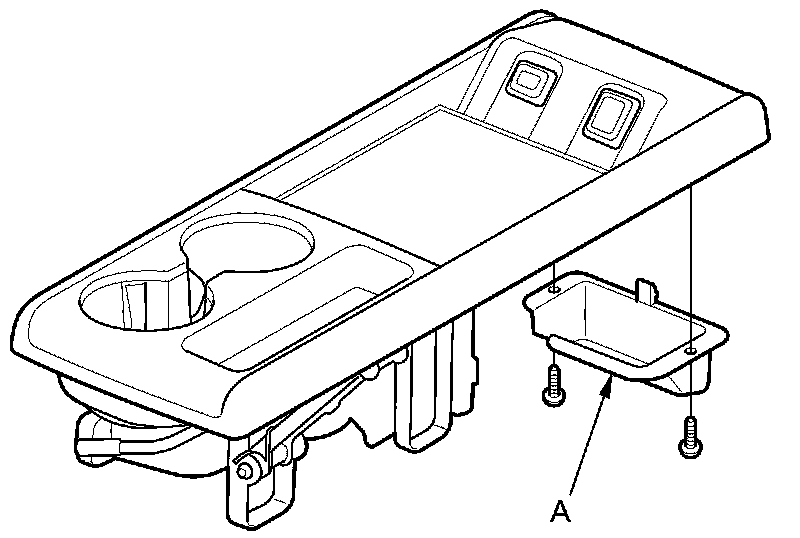

1. EX model: Remove the screws and the center table AUX cover (A).

EX model

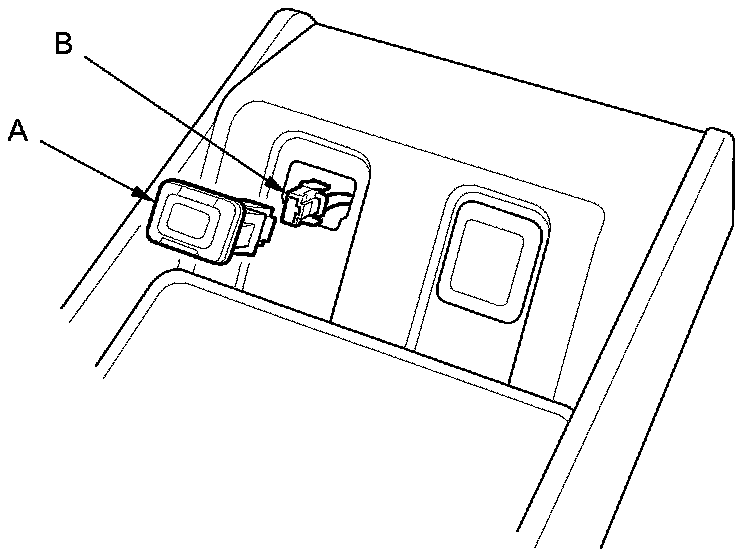

2. Carefully pull out the auxiliary jack assembly (A), then disconnect the 5P connector (B).

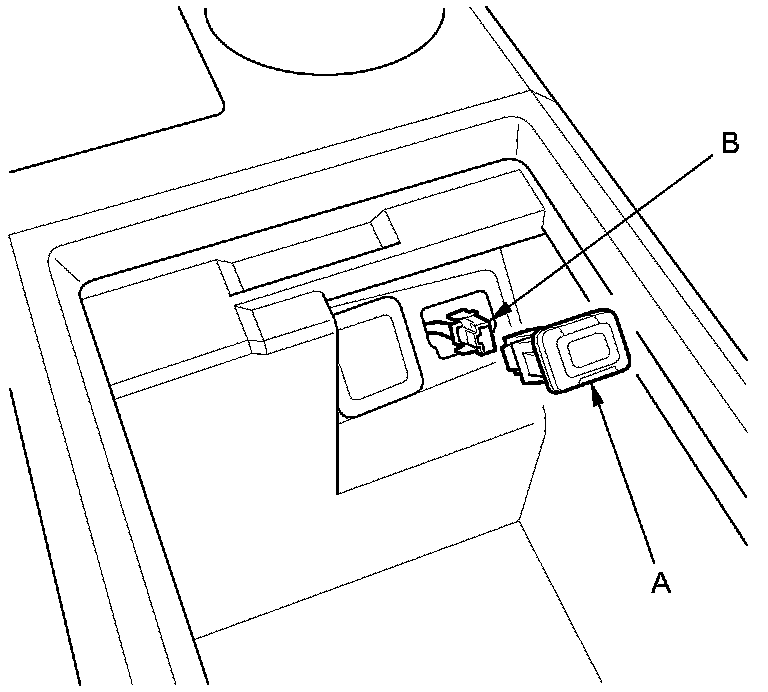

EX-L model

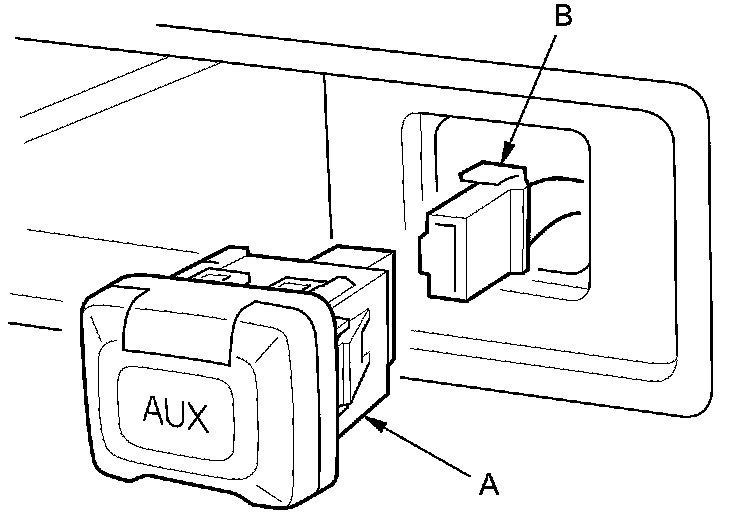

EX model





LX model





3. Install in the reverse order of removal.
