USB Adapter Unit Replacement

USB Adapter Control Unit Replacement

1. Remove these items:

- Shift lever panel Shift Lever Panel Removal/Installation
- Dashboard center vent Dashboard Center Vent Removal/Installation
- Climate control unit Climate Control Unit Removal/Installation
- Audio-navigation unit (with navigation) Audio-Navigation Unit Removal/Installation
- Audio unit (without navigation)

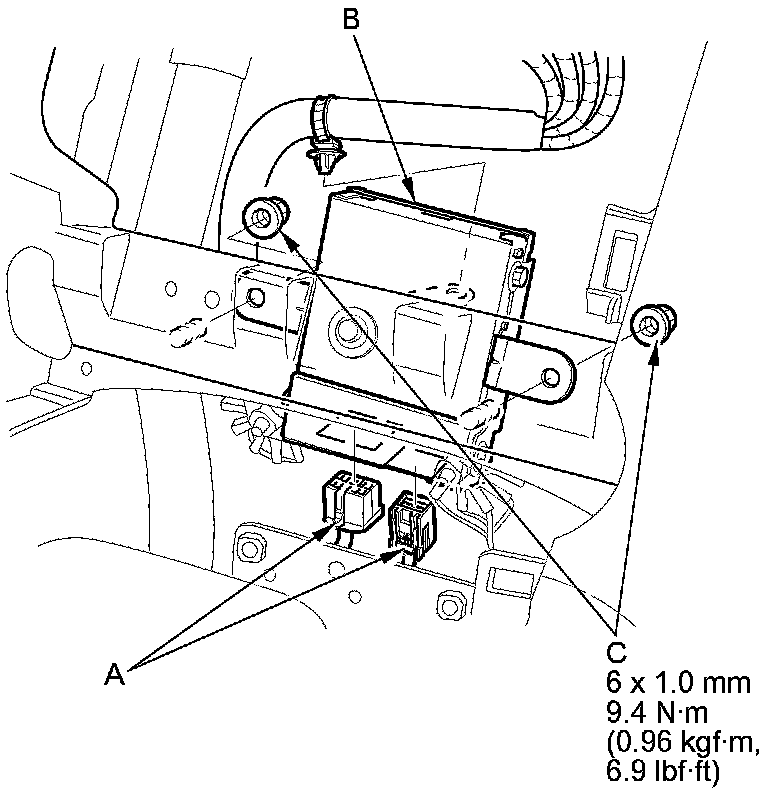

2. Disconnect the connectors (A) from the USB adapter control unit (B).





3. Remove the mounting nuts (C) from the bracket.

4. Install the USB adapter control unit in the reverse order of removal.
