USB Jack Replacement

USB Port Replacement

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair in the SRS section before doing repairs or service.

1. Remove the access panel from the passenger's tray Interior Moulding / Trim.

2. Disconnect the USB adapter 5P connector.

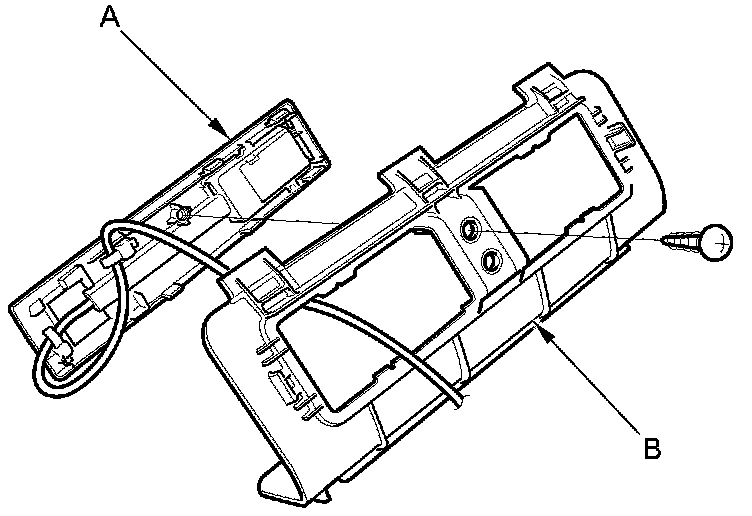

3. Remove the screw, then remove the USB port (A) from the access panel (B).





4. Install the USB port in the reverse order of removal.
