Rearview Camera Image Does Not Come On Or Work Properly (10 Model)
Navigation System Symptom Troubleshooting - Rearview camera image does not come on or work properly ('10 model)
Rearview camera image does not come on or work properly
Diagnostic Test: System Links
NOTE:
- Check the vehicle battery condition first Testing and Inspection.
- Check the connectors for poor connections or loose terminals.
- Check for and resolve all CAN DTCs before troubleshooting the navigation system.
- Before troubleshooting, make sure you have the anti-theft codes for the navigation system.
- After troubleshooting, enter the anti-theft codes for the navigation system.
- Verify that the correct audio-navigation unit is installed for this model. Go into the Diagnostic Mode, and use Version Navigation System Diagnostic Mode.
- Make sure that the correct navigation DVD color and version are installed.
- Check any official Honda service website for more service information about the navigation system.
1. Turn the ignition switch to ON (II), and start the engine.
Does the Navigation screen come on and show an image when the vehicle is started?
YES -
Go to step 2.
NO -
Go to troubleshooting for No picture is displayed No Picture Is Displayed (10 Model).�
2. Go into the Self-Diagnostic Mode Navigation System Diagnostic Mode, and use the System Links diagnosis Navigation System Diagnostic Mode to check the connection between the audio-navigation unit and the rearview camera.
Is the R-camera link on the screen?
YES -
Go to step 3.
NO -
Go to step 13.
3. Confirm the system connection.
Is the R-camera link red on the screen?
YES -
Go to step 4.
NO -
Go to Car Status and check the BACK indication status Navigation System Diagnostic Mode.�
4. Turn the ignition switch to LOCK (0).
5. Check the connections between audio-navigation unit connector F (7P) and the rearview camera 6P connector.
Are the connections OK?
YES -
Go to step 6.
NO -
Repair the poor connection, and reconnect the connectors.�
6. Disconnect audio-navigation unit connector F (7P) and the rearview camera 6P connector.

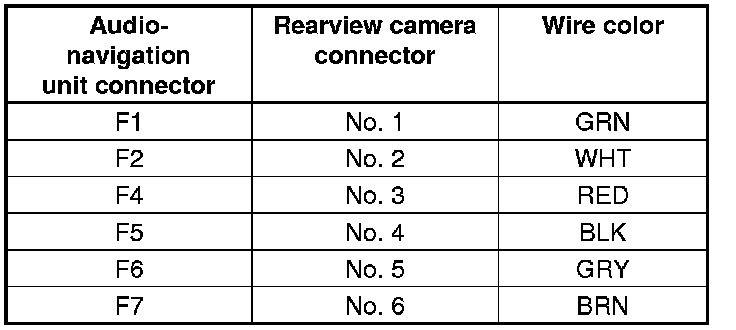

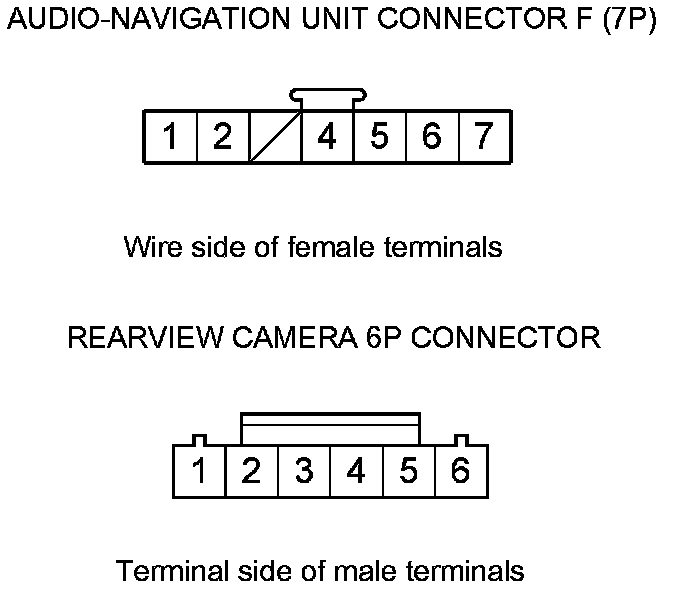

7. Check for continuity between audio-navigation unit connector F (7P) and rearview camera 6P connector according to the table.
Is there continuity?
YES -
Go to step 8.
NO -
There is an open in the wire between the audio-navigation unit and the rearview camera. Replace the affected shielded harness.�

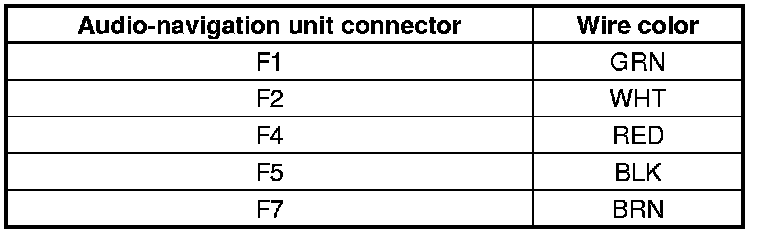

8. Check for continuity between audio-navigation unit connector F (7P) and body ground according to the table. Then check for continuity between audio- navigation unit connector F (7P) terminal No. 6 and rearview camera 6P connector terminal No. 5 according to the table.
Is there continuity?
YES -
There is a short in the wire(s) between the audio-navigation unit and the rearview camera. Replace the affected shielded harness.�
NO -
Go to step 9.

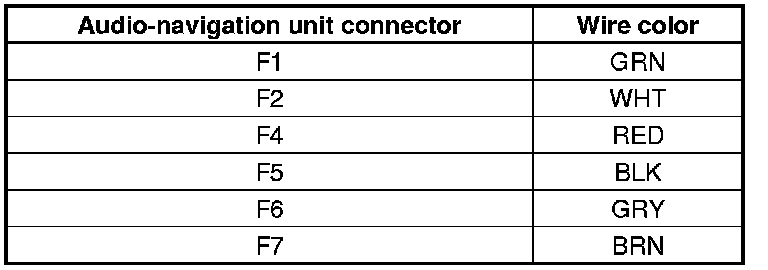

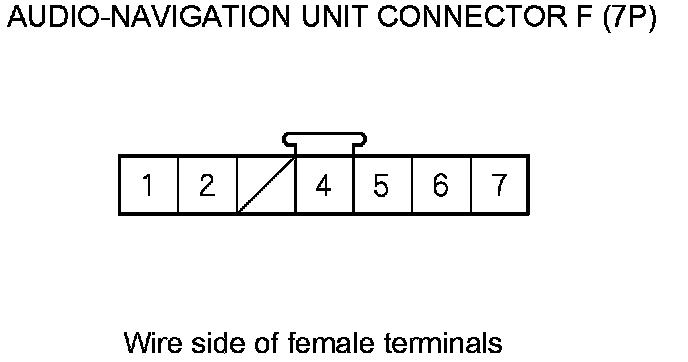

9. Turn the ignition switch to ON (II), and measure the voltage between audio-navigation unit connector F (7P) and body ground according to the table.
Is there 0.5 V or more?
YES -
There is a short to power in the wire(s) between the audio-navigation unit and the rearview camera. Replace the affected shielded harness.�
NO -
Go to step 10.
10. Turn the ignition switch to LOCK (0).
11. Reconnect the rearview camera 6P connector.
12. Substitute and connect a known-good audio-navigation unit Audio-Navigation Unit Removal/Installation, and check the rearview camera image in reverse.
Is the rear view image OK?
YES -
Replace the original audio-navigation unit Audio-Navigation Unit Removal/Installation.�
NO -
Replace the rearview camera Service and Repair.�
13. Press Return in the upper right corner of the screen to return the main menu, then go to Version Navigation System Diagnostic Mode.
14. Check the model code that is displayed.
Is the correct audio-navigation unit model code displayed for this vehicle?
YES -
Go to step 15.
NO -
The wrong audio-navigation unit is installed. Replace the audio-navigation unit with the correct part.�
15. Remove the navigation DVD disc from the audio-navigation unit, and check the label color of the navigation DVD.
Is the DVD disc label white (or possibly gray for Canada)?
YES -
Reinsert the navigation DVD, and go to step 4.
NO -
Replace the navigation DVD with the correct color. See Obtaining a Navigation DVD in the General Troubleshooting Information How To Troubleshoot The Navigation System.�
