Part 2

Audio System Description

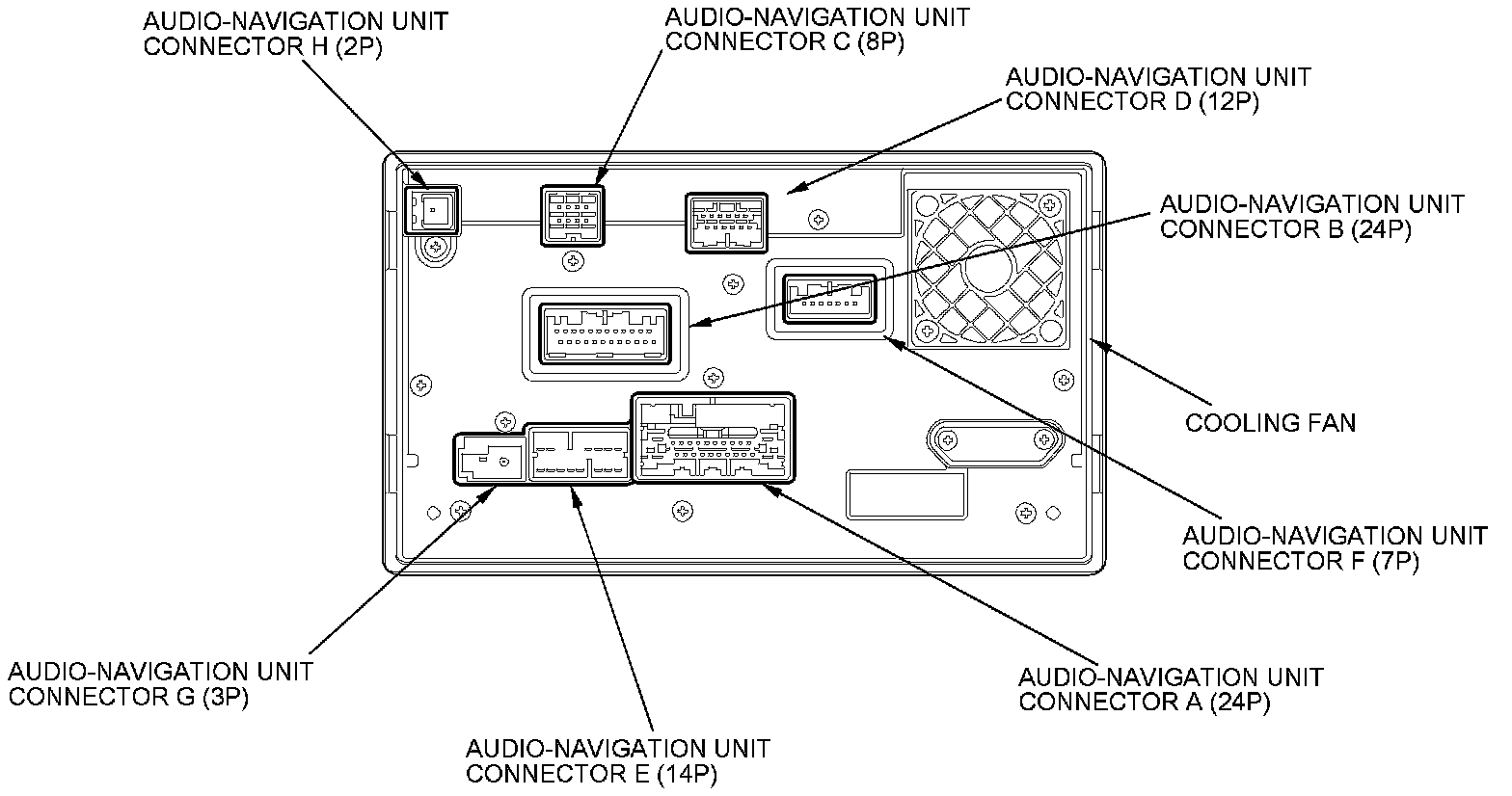

Audio-Navigation Unit Connector for Inputs and Outputs ('10 model)

With navigation (Audio-navigation unit)





NOTE: Refer to the navigation section for audio-navigation unit connector C, D, F, and H input and outputs Description and Operation.

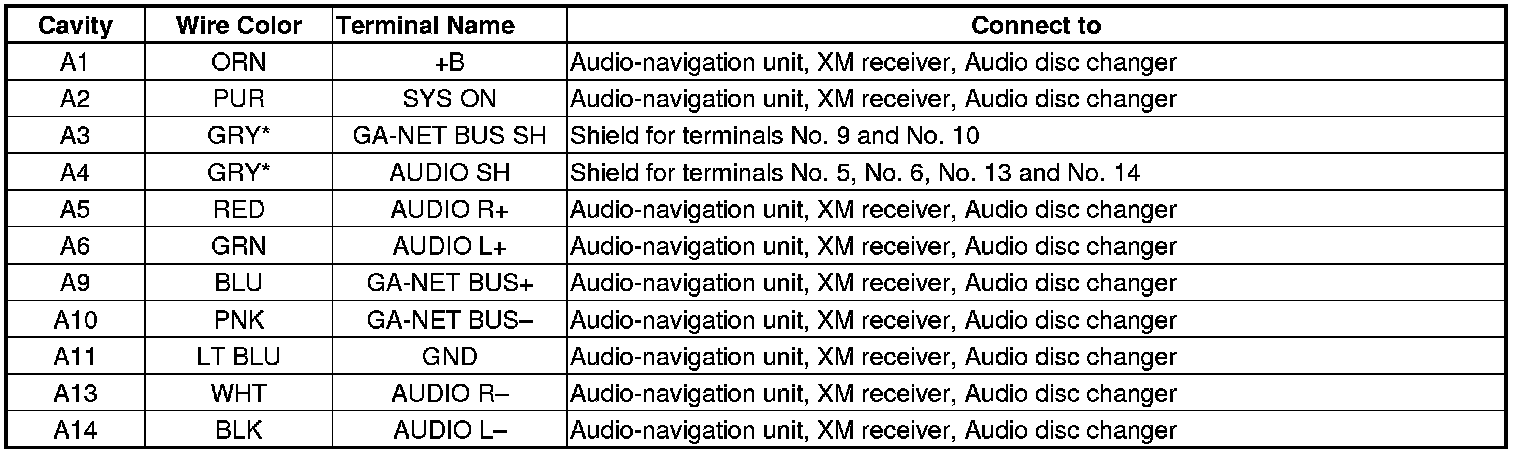

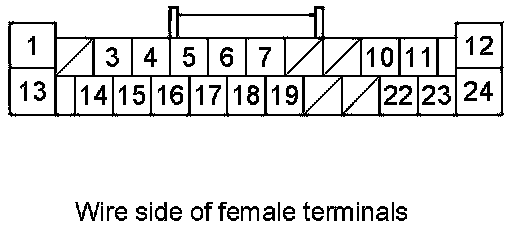

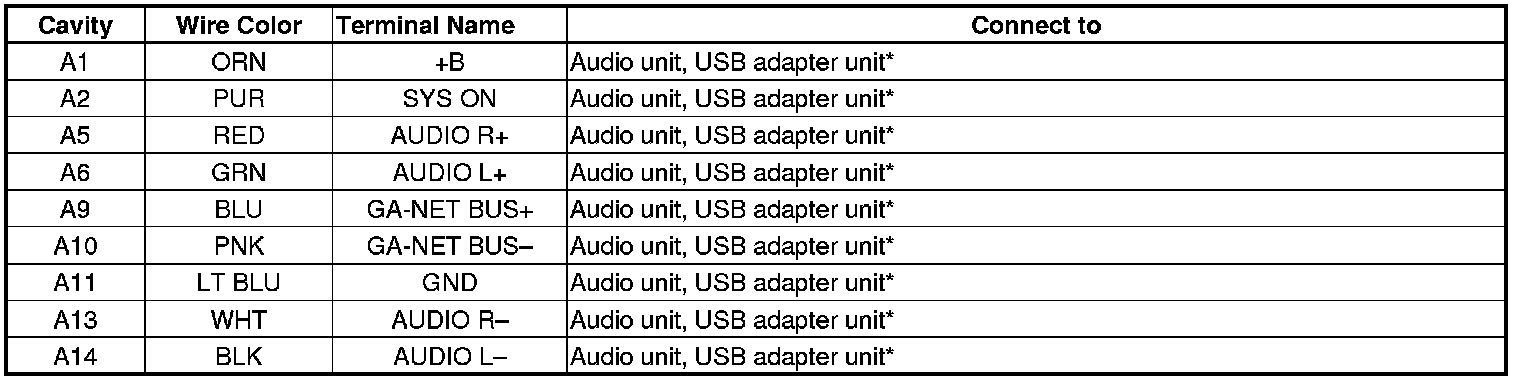

AUDIO-NAVIGATION UNIT CONNECTOR A (24P)

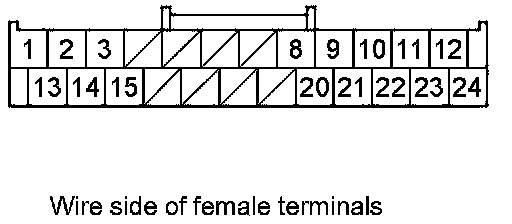

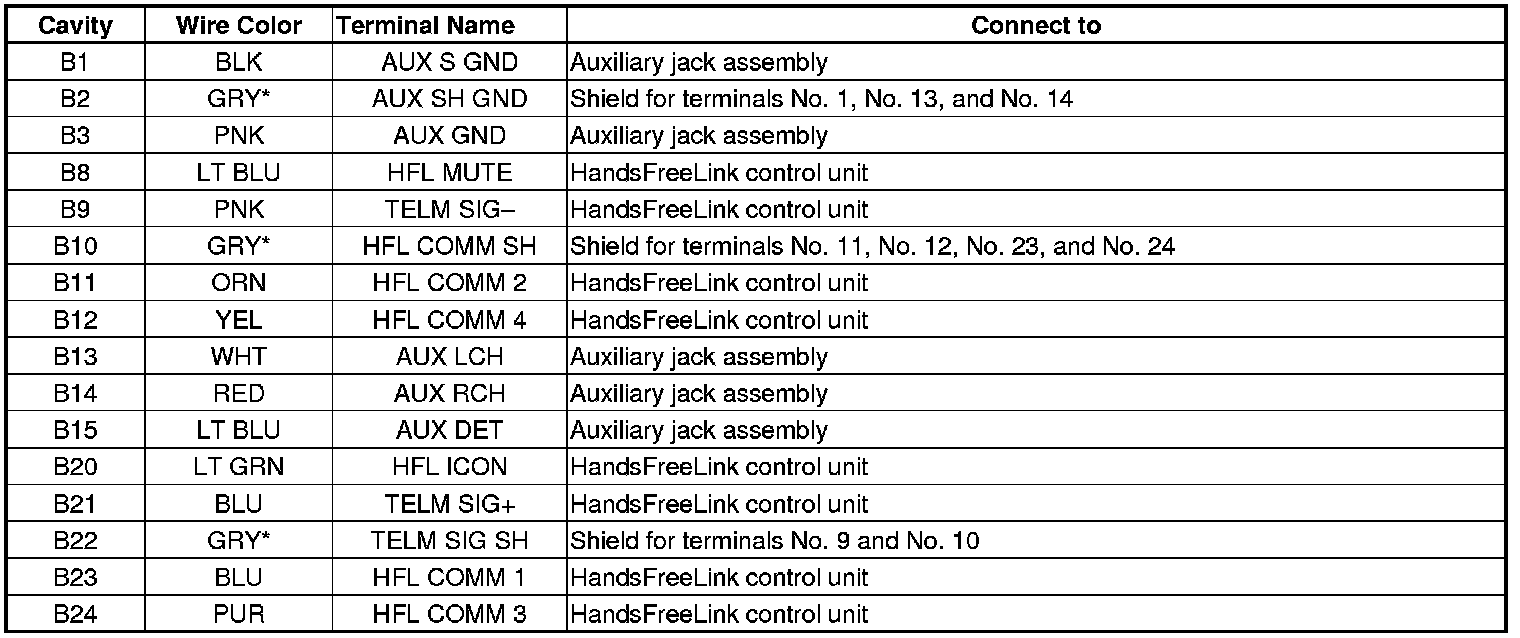

AUDIO-NAVIGATION UNIT CONNECTOR B (24P)

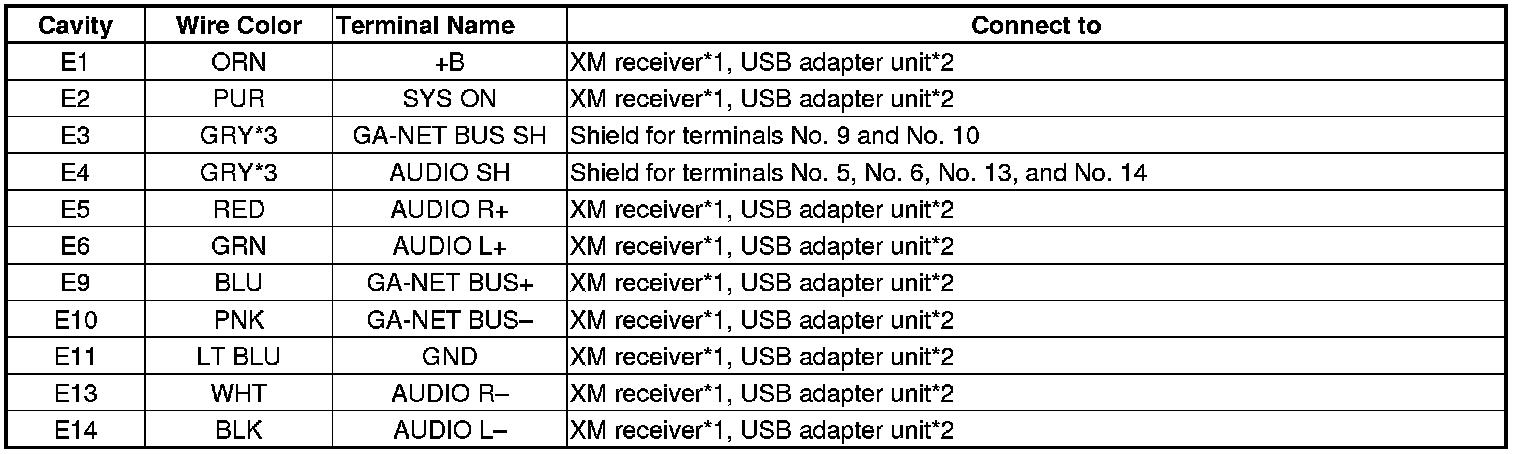

AUDIO-NAVIGATION UNIT CONNECTOR E (14P)

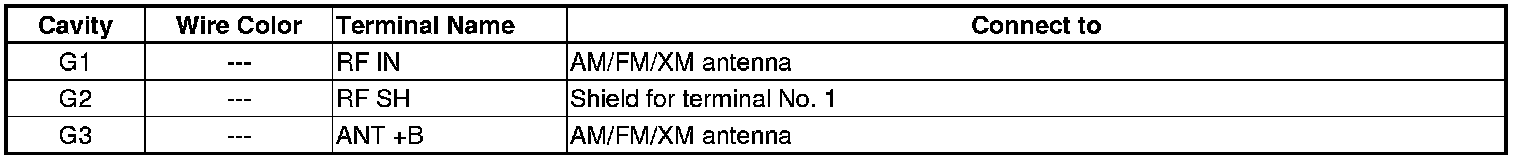

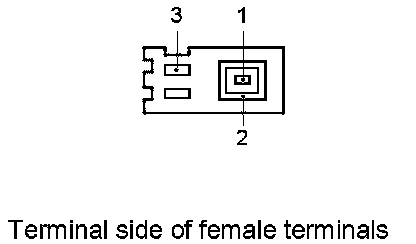

AUDIO-NAVIGATION UNIT CONNECTOR G (3P)

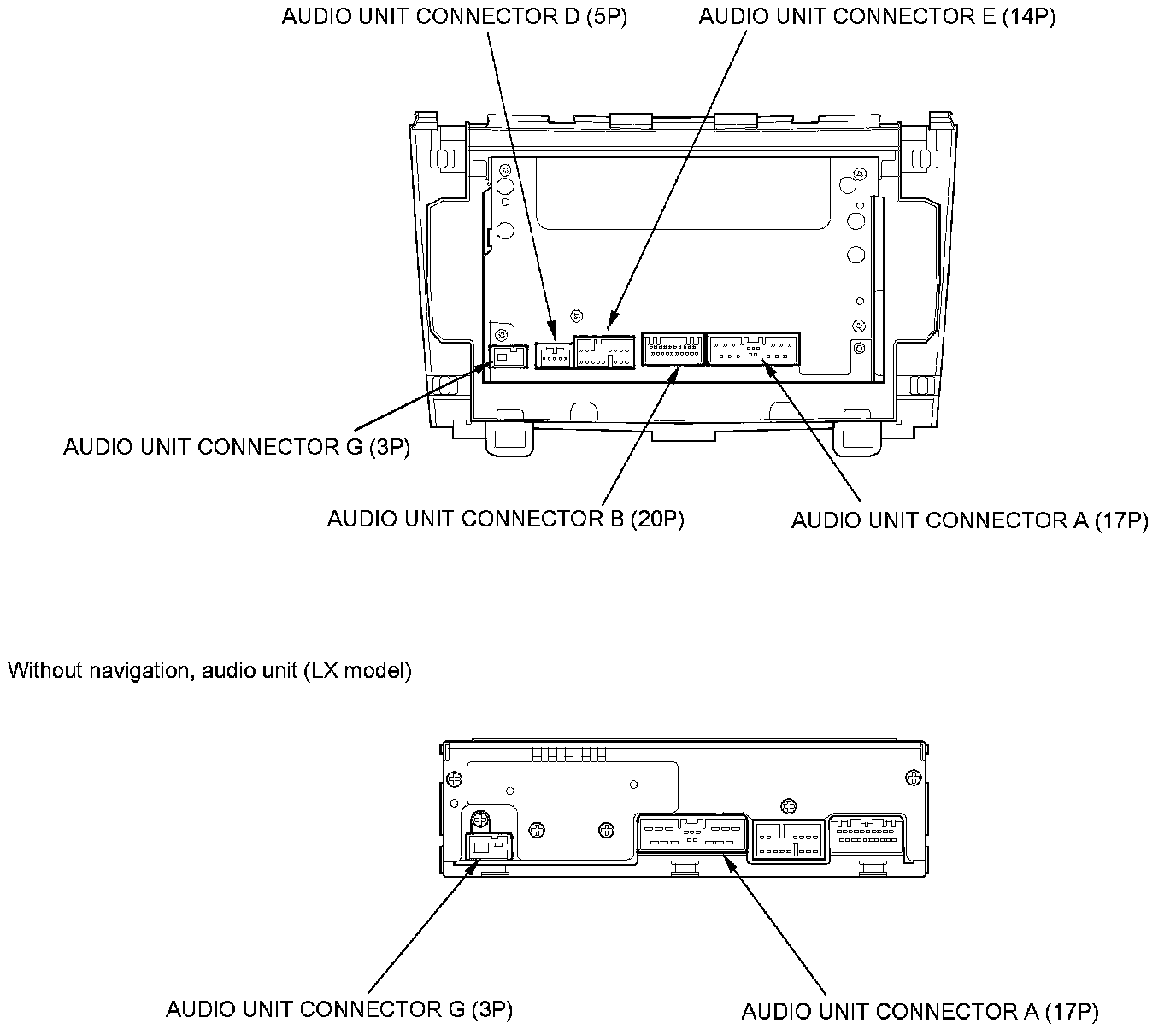

Audio Unit Connector for Inputs and Outputs

Without navigation, with XM radio

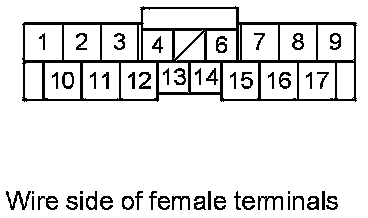

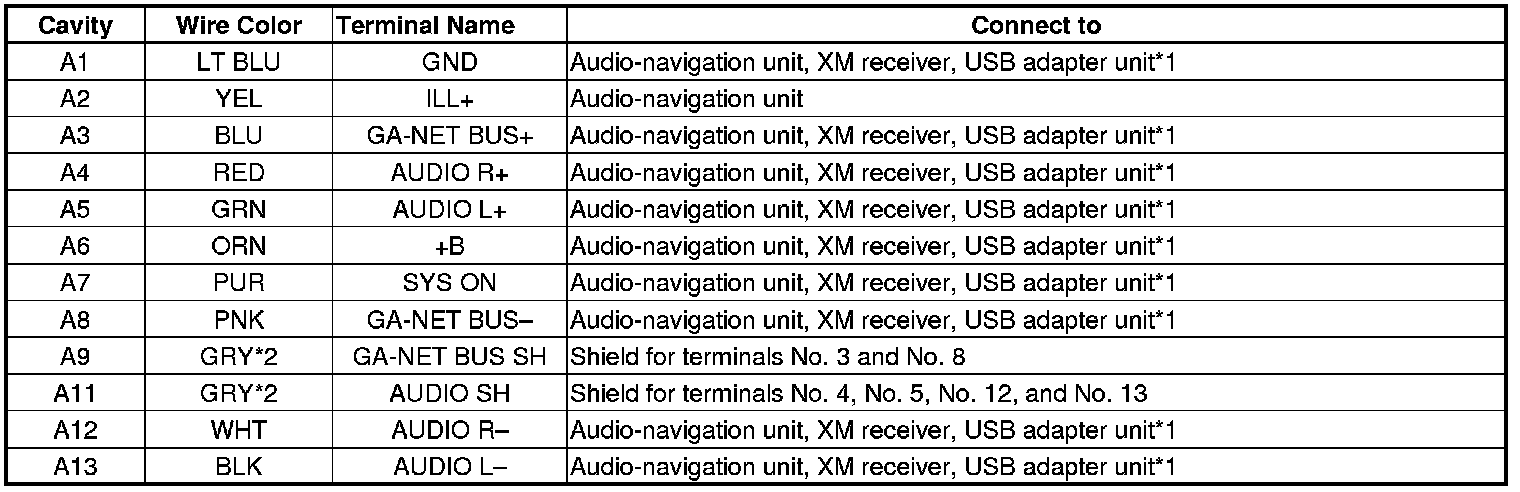

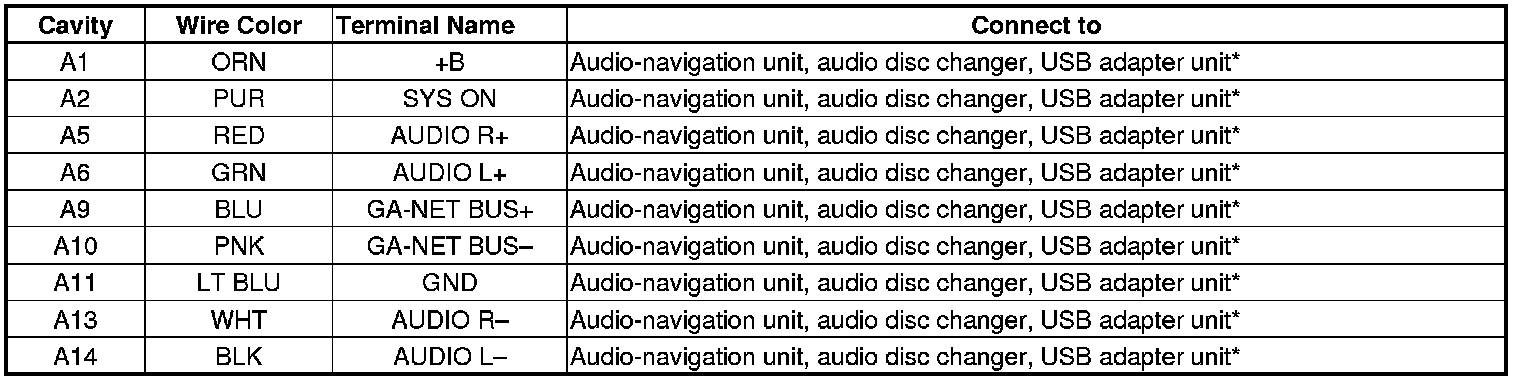

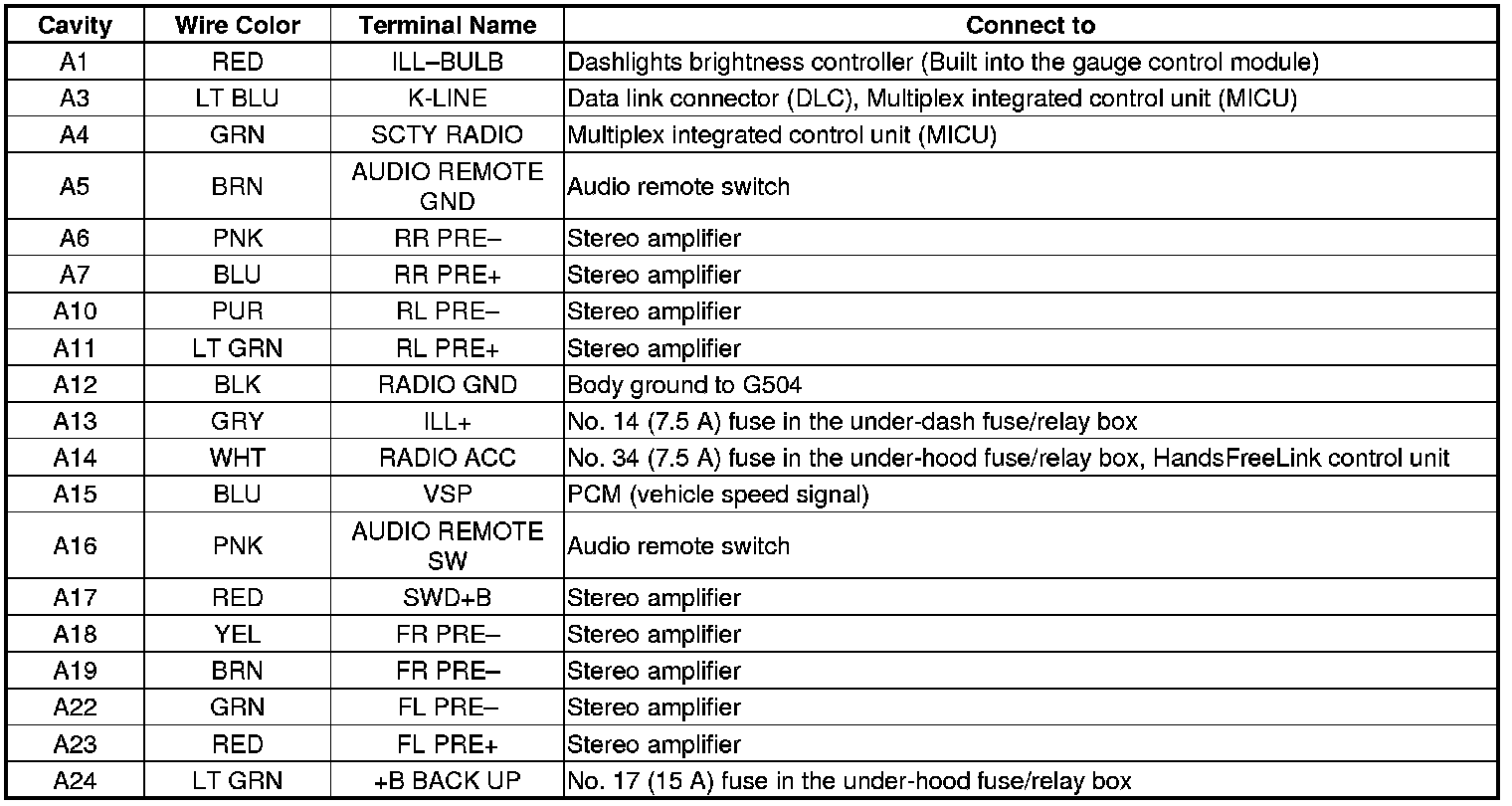

AUDIO UNIT CONNECTOR A (17P)

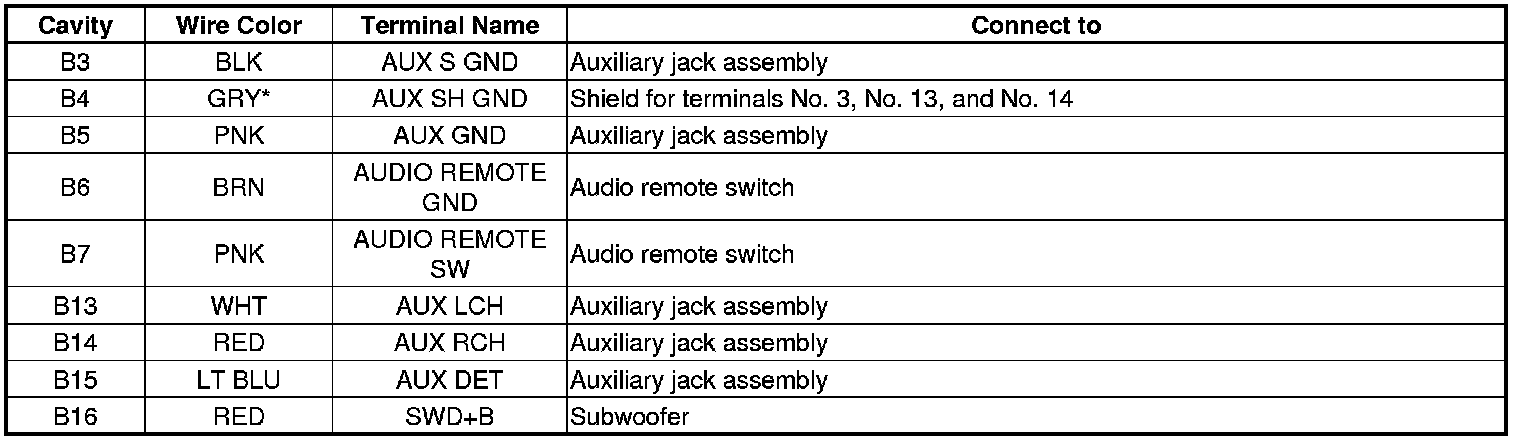

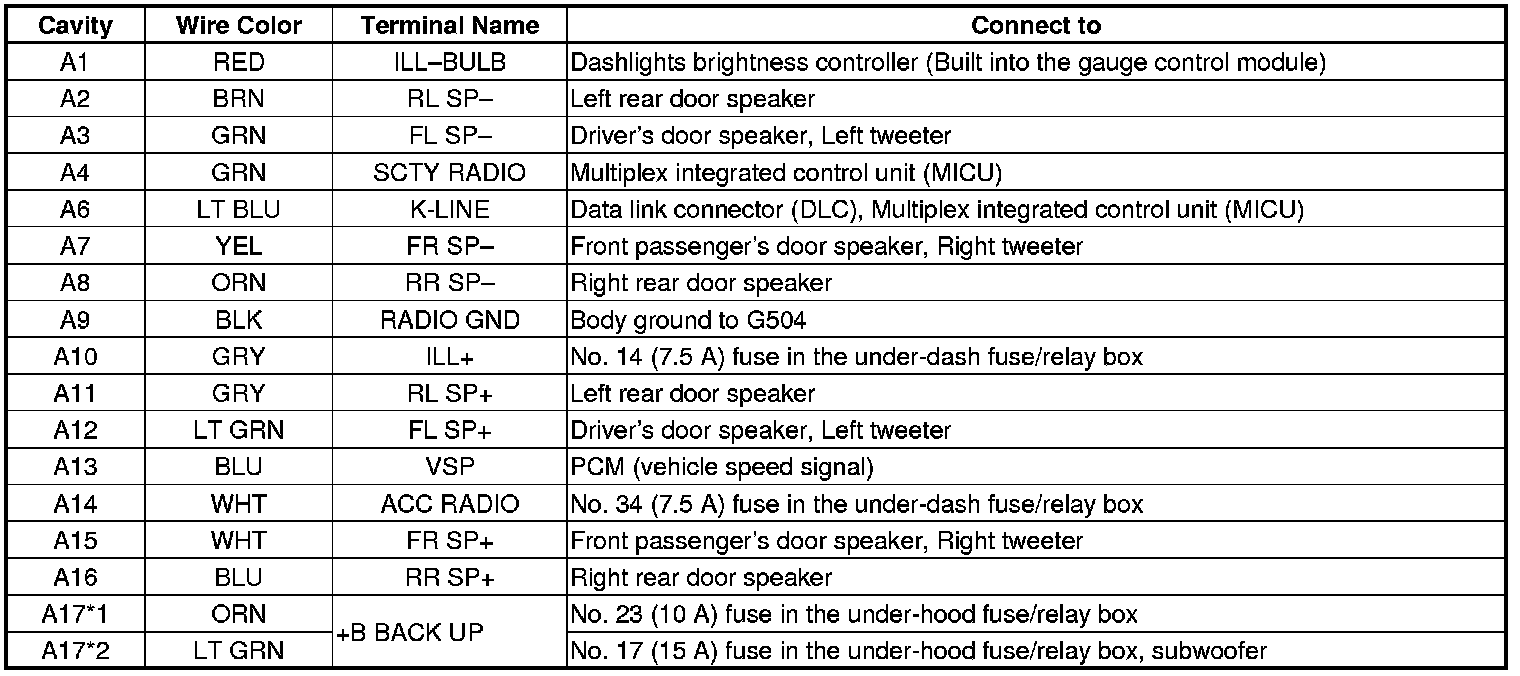

AUDIO UNIT CONNECTOR B (20P)





Except LX model










LX model

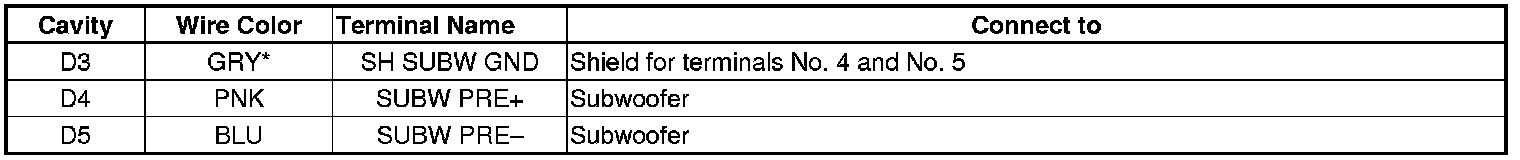

AUDIO UNIT CONNECTOR D (5P)





'08-10 EX-L models

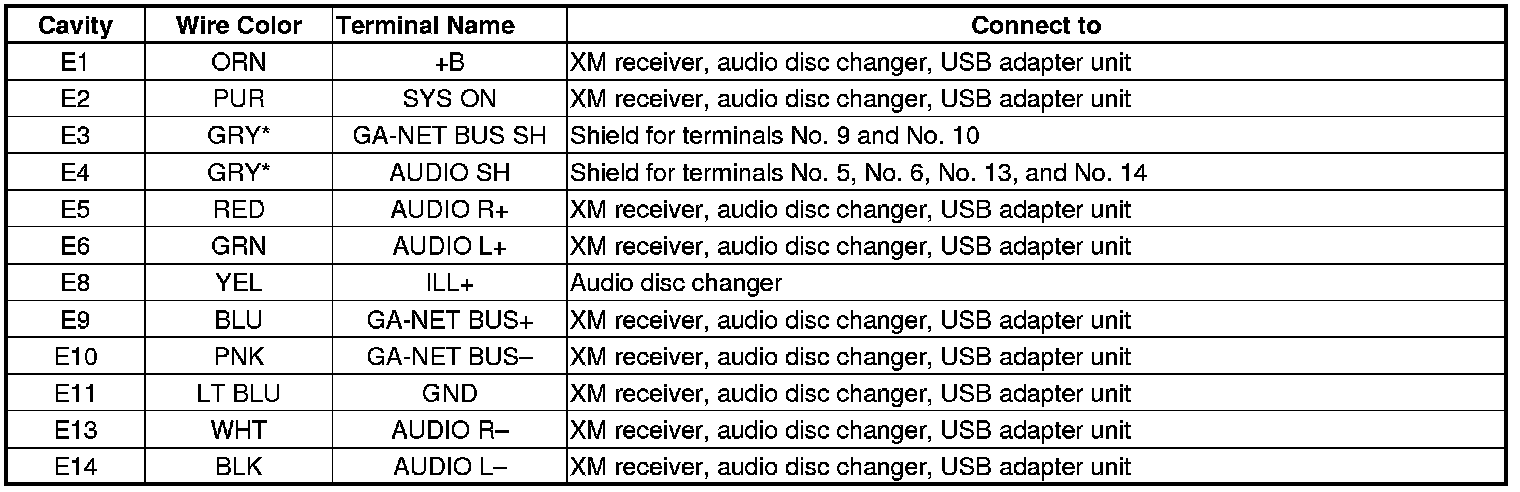

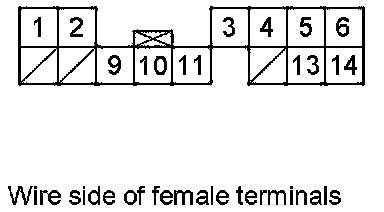

AUDIO UNIT CONNECTOR E (14P)





'08-10 EX-L models

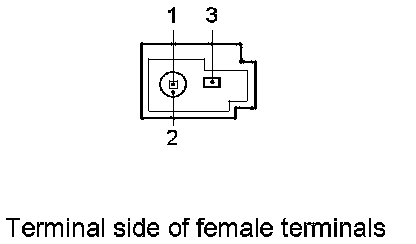

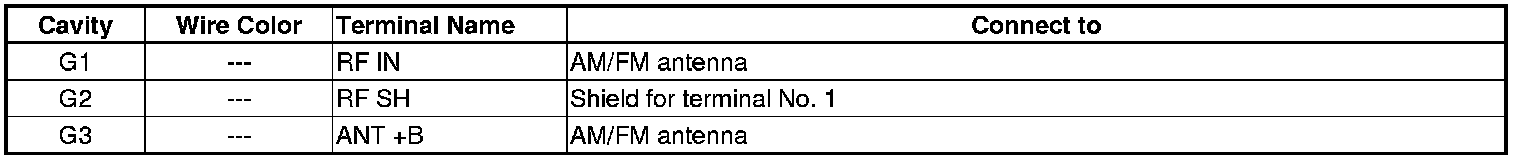

AUDIO UNIT CONNECTOR G (3P)





With XM receiver





Without XM receiver

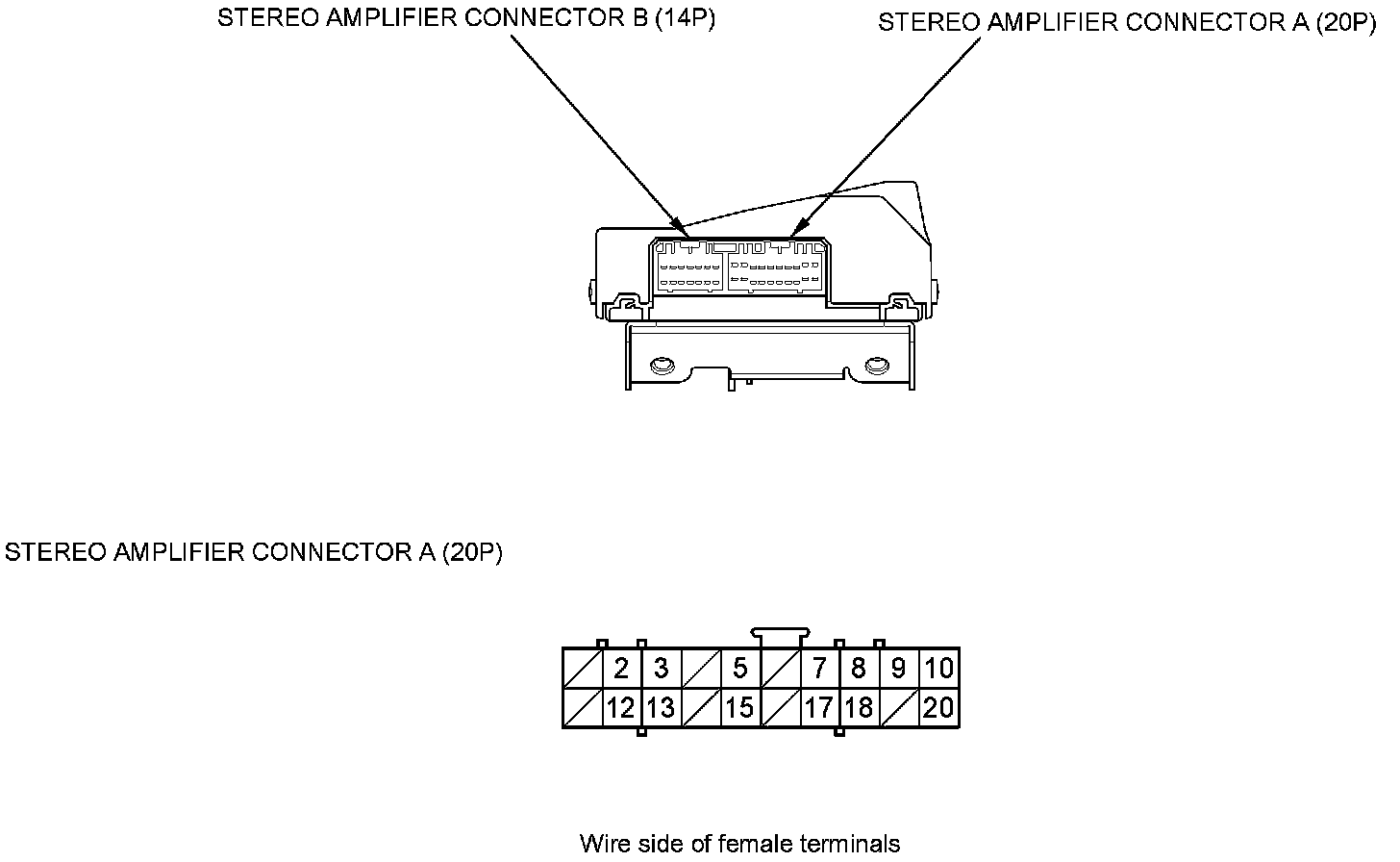

Stereo Amplifier Connector for Inputs and Outputs (With navigation)

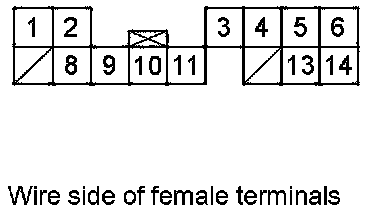

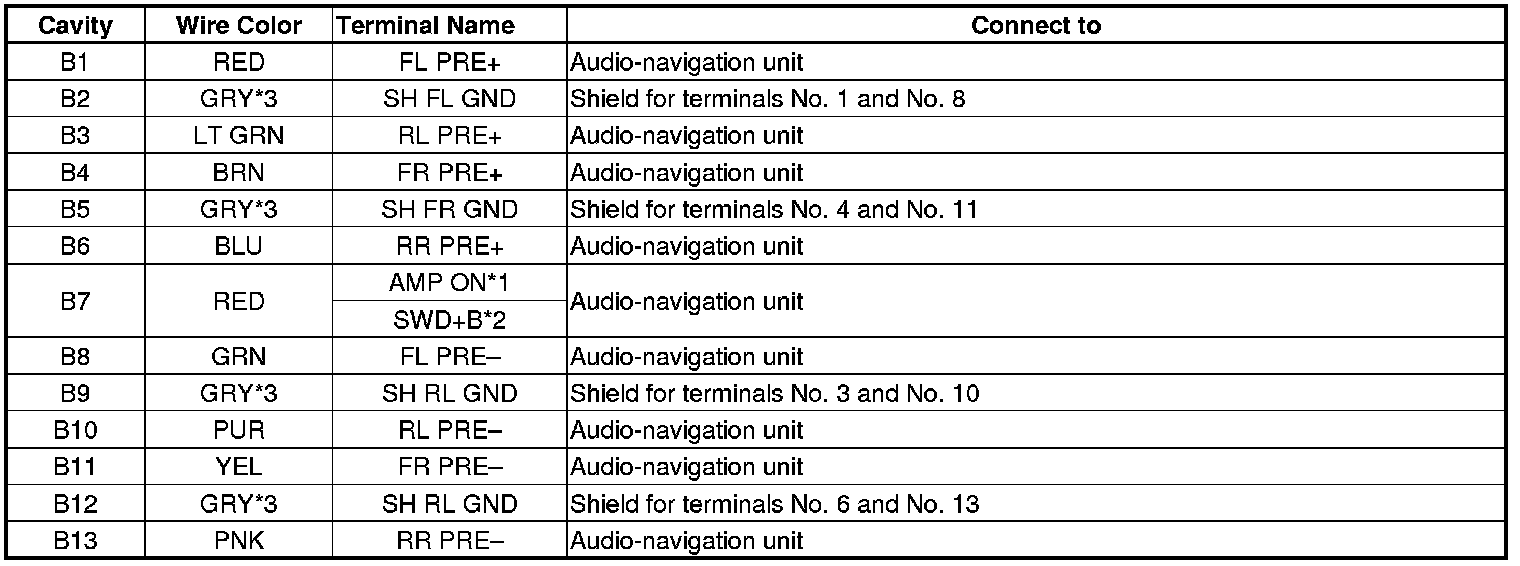

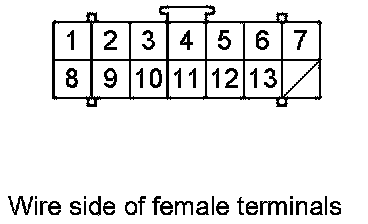

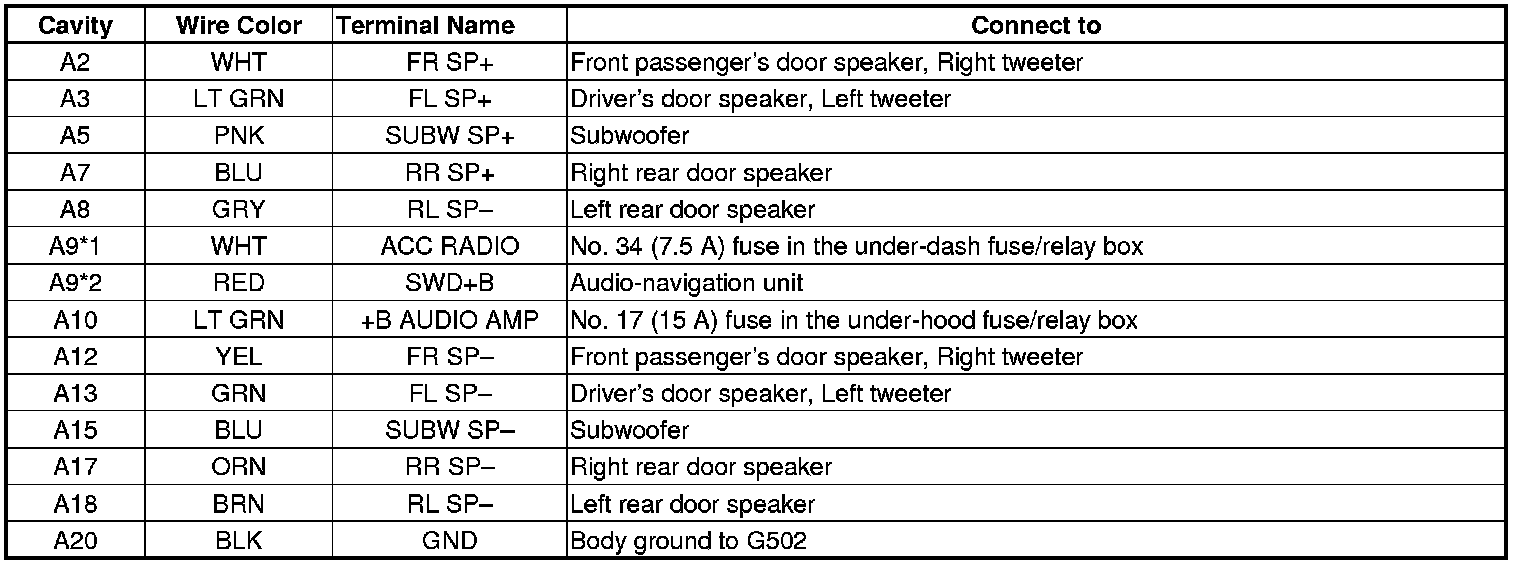

STEREO AMPLIFIER CONNECTOR B (14P)

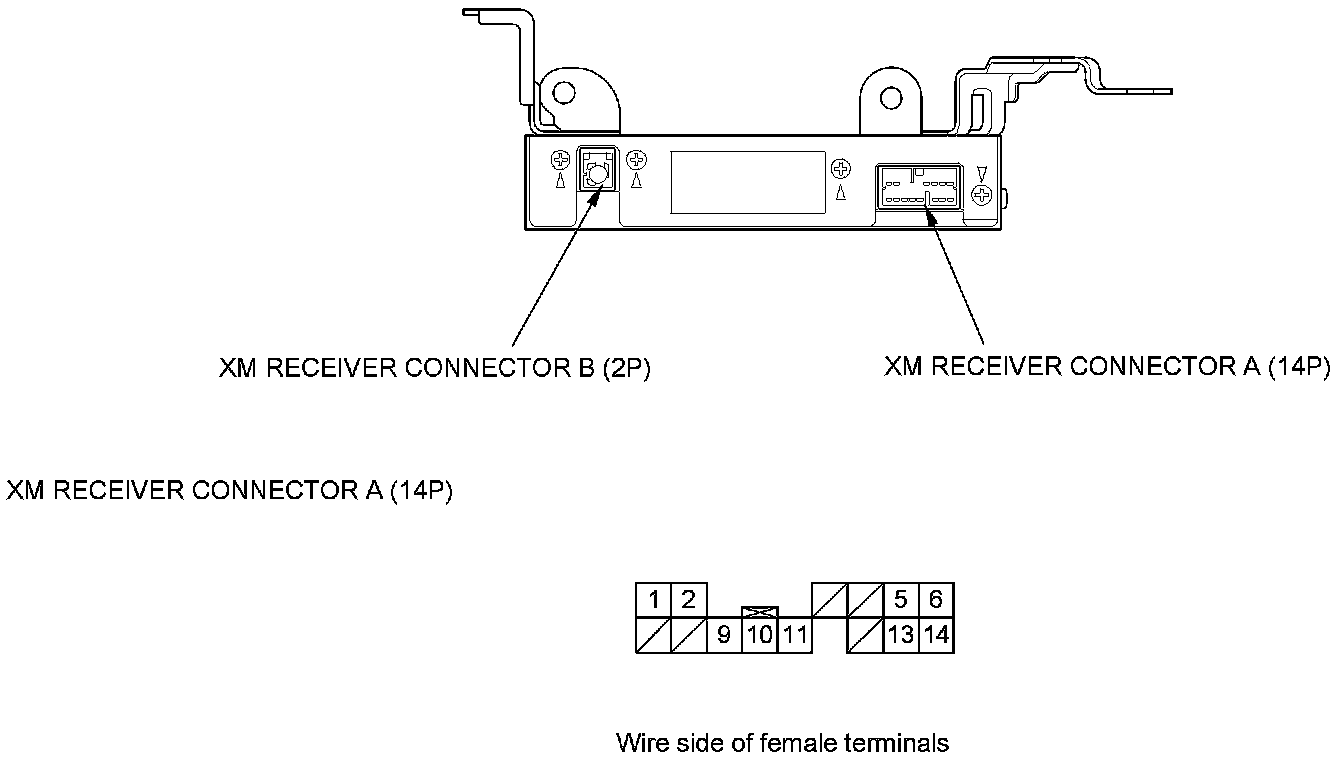

XM Receiver Connector for Inputs and Outputs





With navigation

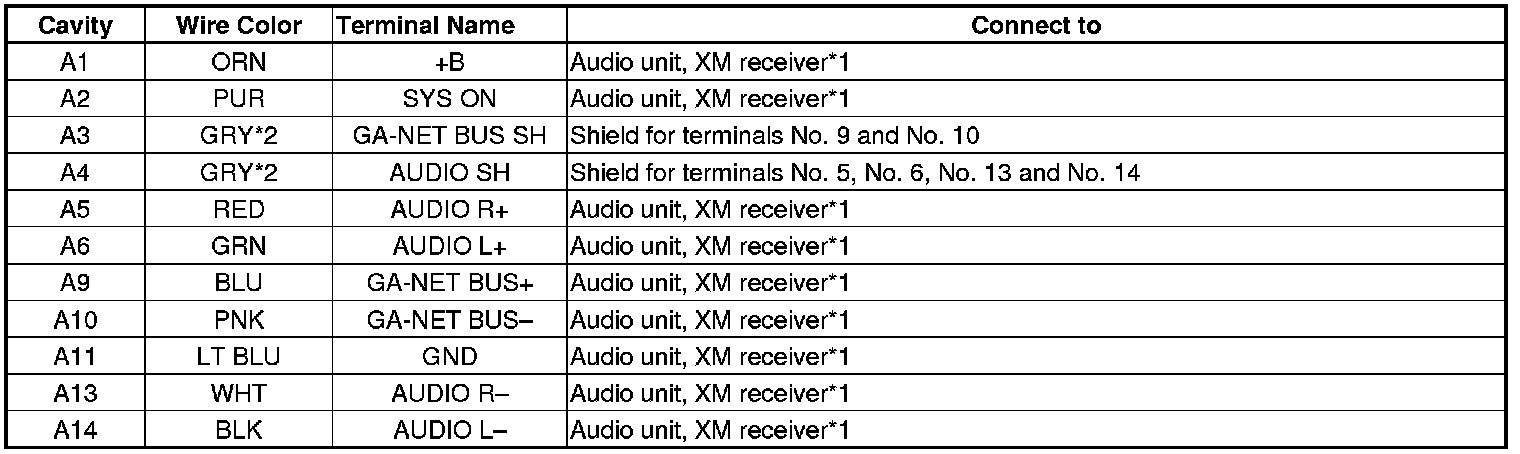

XM RECEIVER CONNECTOR A (14P) (cont'd)

Without navigation

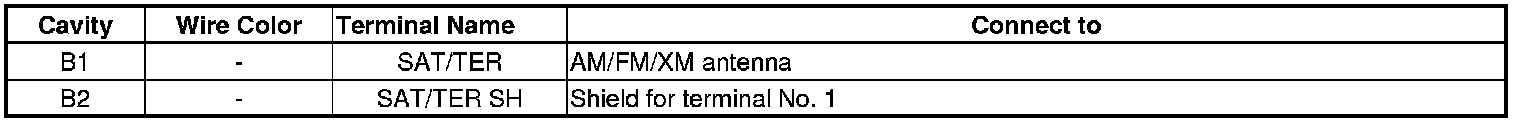

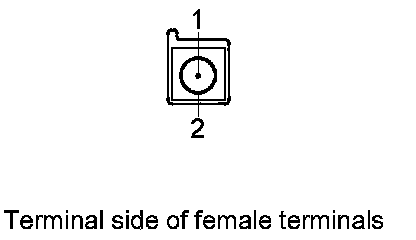

XM RECEIVER CONNECTOR B (2P)

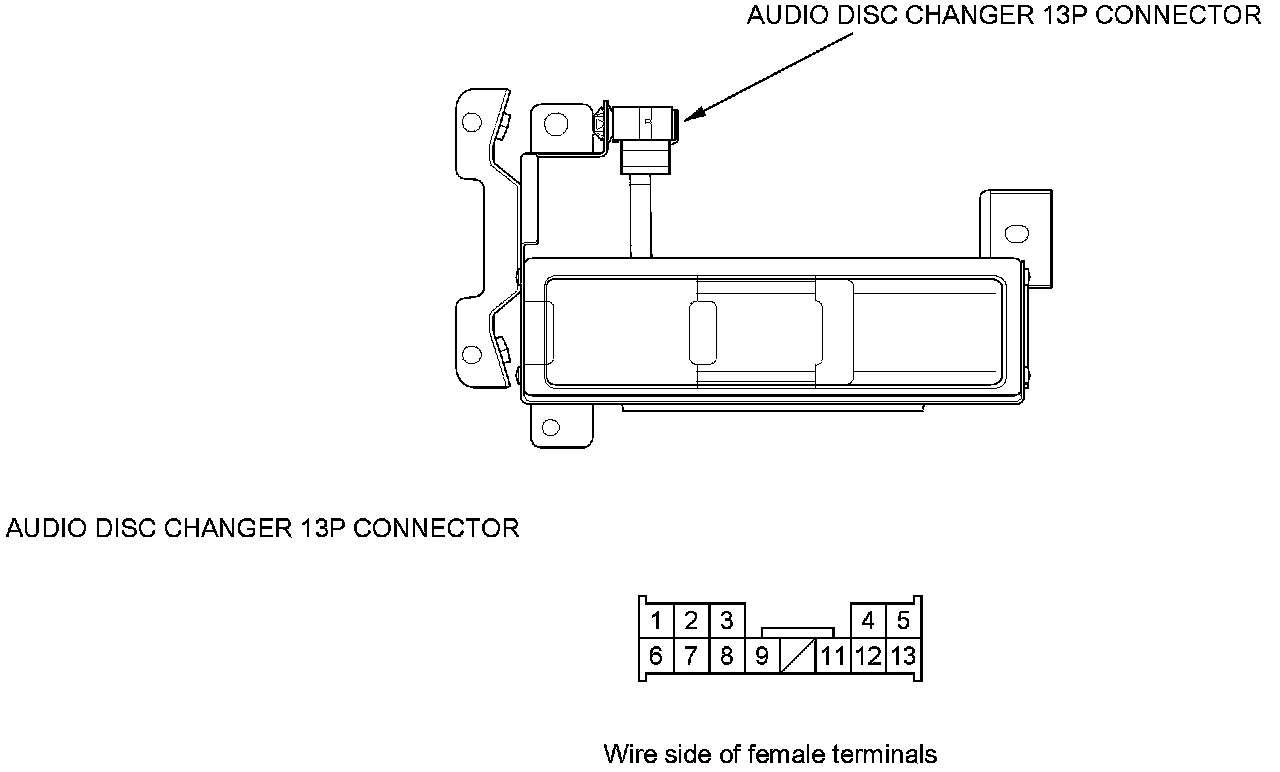

Audio Disc Changer Connector for Inputs and Outputs (With navigation)

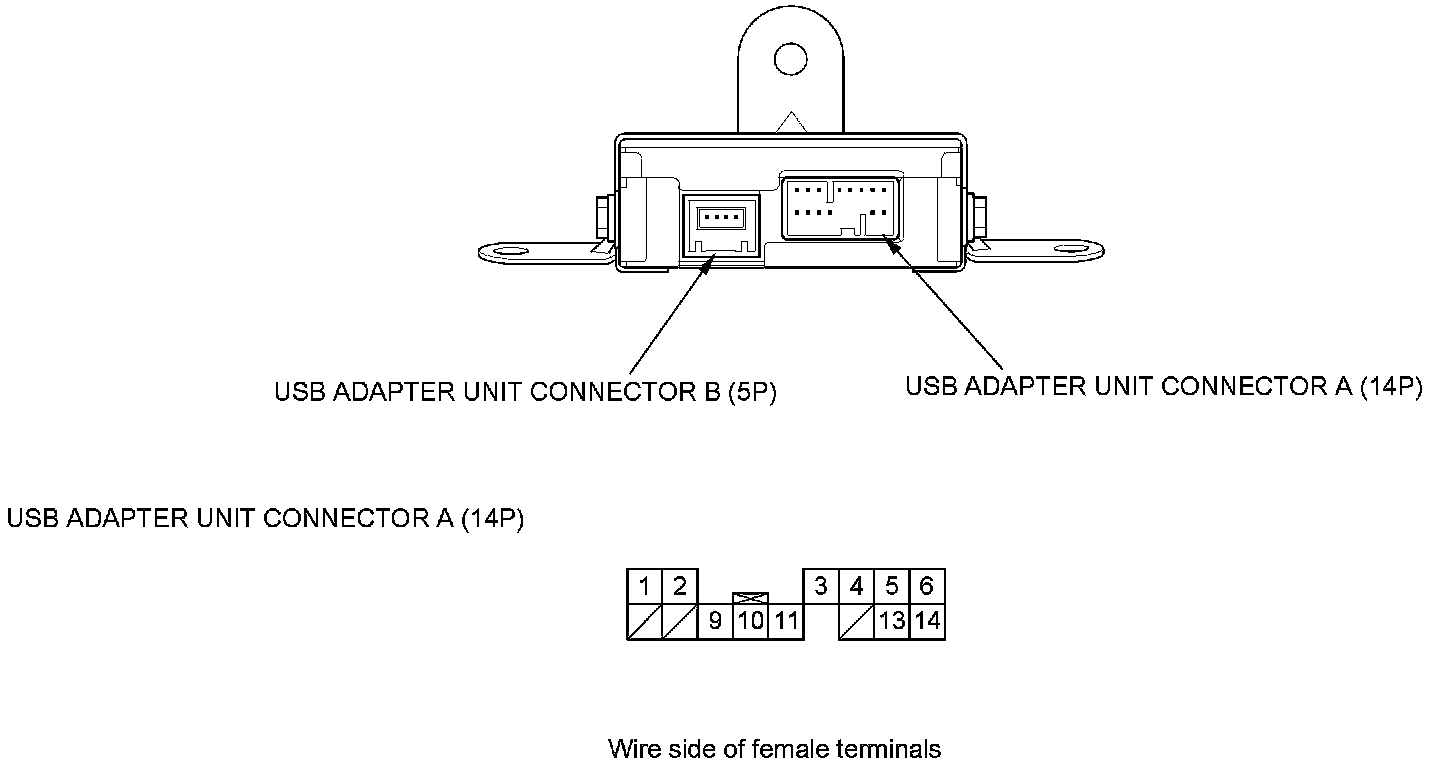

USB Adapter Unit Connector for Inputs and Outputs ('10 model)





With navigation










USB ADAPTER UNIT CONNECTOR A (14P) (cont'd)

Without navigation

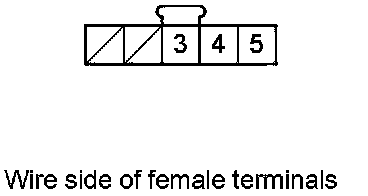

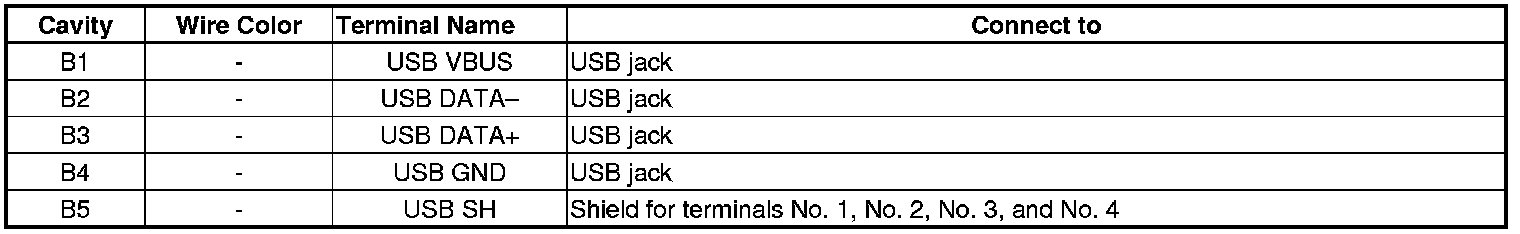

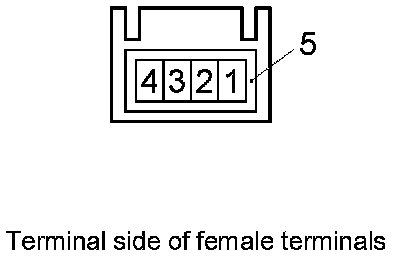

USB ADAPTER UNIT CONNECTOR B (5P)

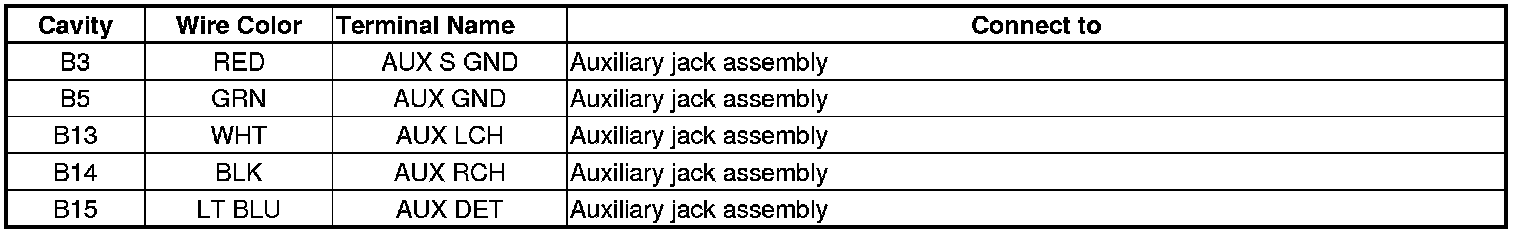

Auxiliary Jack Assembly Connector for Inputs and Outputs

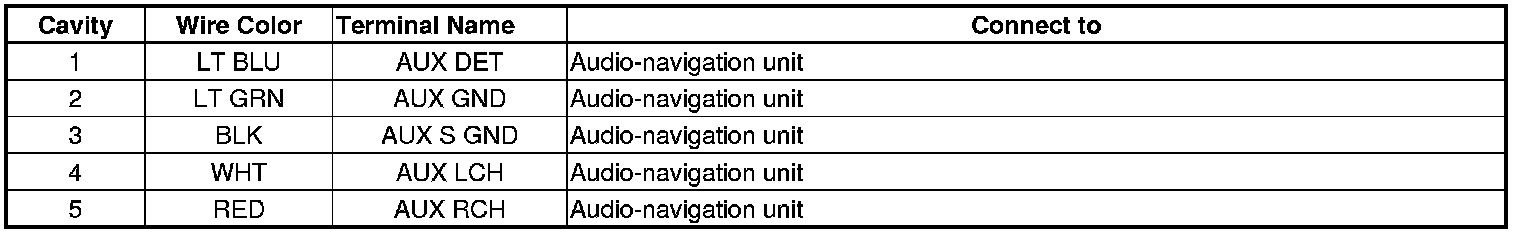

With navigation

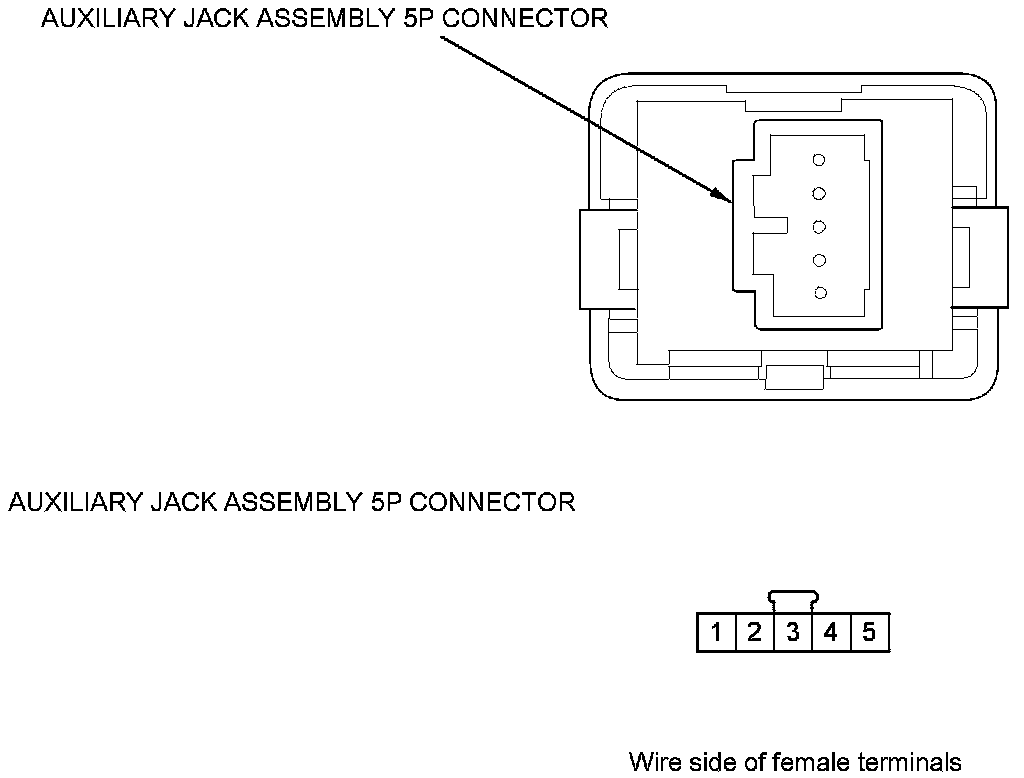

AUXILIARY JACK ASSEMBLY 5P CONNECTOR (cont'd)

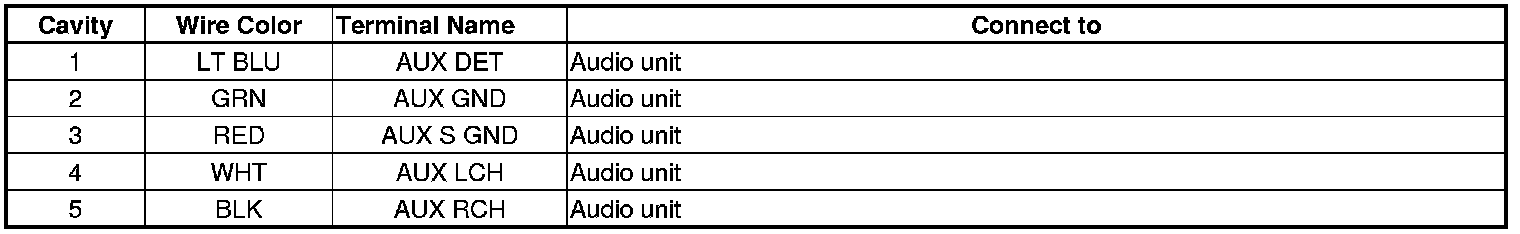

Without navigation (Except LX model)














Without navigation (LX model)
