XM Receiver Removal/Installation

XM Receiver Removal/Installation

1. Remove the right kick panel Service and Repair.

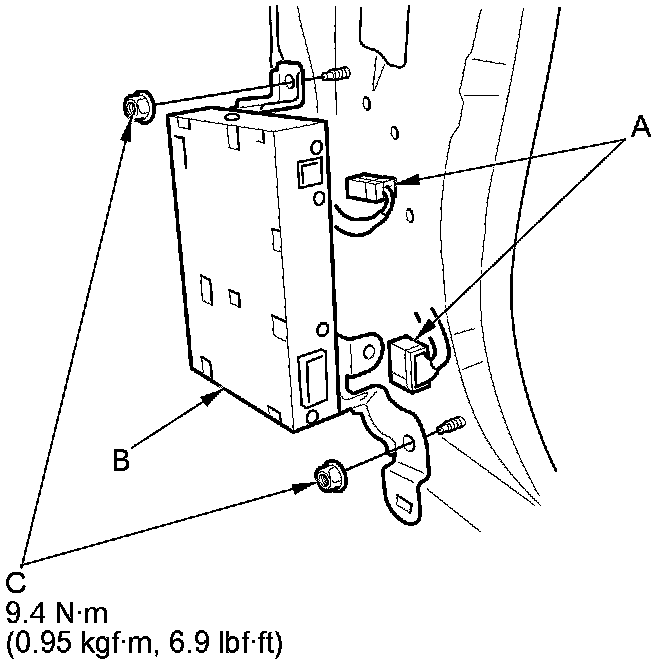

2. Disconnect the connectors (A) from the XM receiver (B).





3. Remove the bolts (C) and the XM receiver.

4. Install the XM receiver in the reverse order of removal.

NOTE: When installing a new XM receiver, call XM radio customer service to update the customer's account.
