Audio Unit Power Switch Will Not Turn On (No Information Display And No Sound) (Without Navigation)

Audio System Symptom Troubleshooting - Audio unit power switch will not turn on (No information display and no sound) (without navigation)

Audio unit power switch will not turn on (No information display and no sound) (without navigation)

NOTE:

- Check the vehicle battery condition first Testing and Inspection.
- Check the connectors for poor connections or loose terminals.

1. Turn the ignition switch to ON (II).

2. Push the power switch on to see if the audio unit turns on.

Does the audio unit operate properly, and does the audio sound normal?

YES -

Intermittent failure, the system is OK at this time.�

NO -

Go to step 3.

3. Turn the ignition switch to LOCK (0).

4. Check the No. 23 (10 A) or the [No. 17 (15 A)] fuse in the under-hood fuse/relay box and the No. 34 (7.5 A) fuse in the under-dash fuse/relay box.





Are the fuses OK?

YES -

Go to step 5.

NO -

Replace the fuse(s), and recheck.�

5. Remove the audio unit Audio Unit Removal/Installation. Check that the audio unit is properly connected.

NOTE: Eject all the discs before removing the audio unit to prevent damaging the CD player's load mechanism.

Is it connected properly?

YES -

Go to step 6.

NO -

Reconnect the connector(s), and recheck the function.�

6. Turn the ignition switch to ON (II).

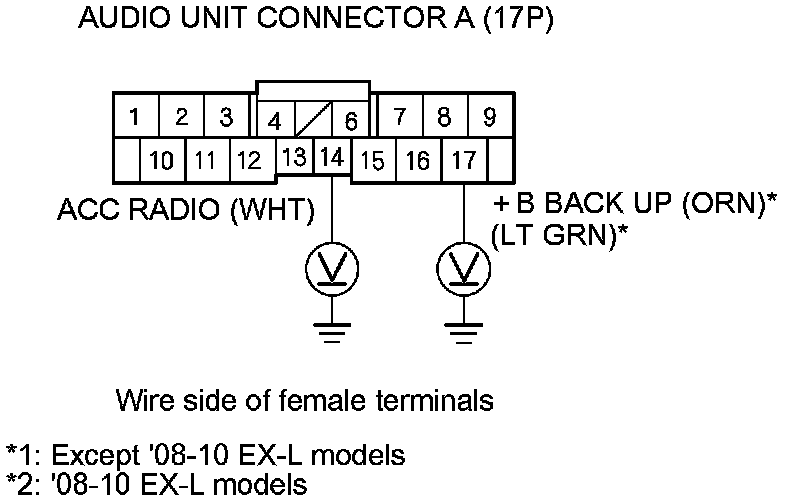

7. Measure the voltage between audio unit connector A (17P) terminal No. 14 and body ground, and between terminal No. 17 and body ground.





Is there battery voltage on the both terminals?

YES -

Go to step 8.

NO -

Repair an open in the wire(s) between the No. 23 (10 A) or [No. 17 (15 A)] fuse in the under-hood fuse/relay box and No. 34 (7.5 A) in the under-dash fuse/relay box and the audio unit.�

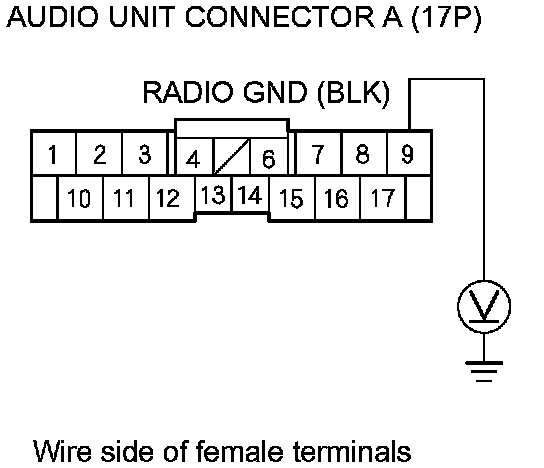

8. Measure the voltage between audio unit connector A (17P) terminal No. 9 and body ground.





Is there less than 0.2 V?

YES -

Substitute a known-good audio unit Audio Unit Removal/Installation, and recheck. If the symptom/indication goes away, replace the original audio unit Audio Unit Removal/Installation.�

NO -

Repair an open or high resistance in the wire between audio unit connector A (17P) terminal No. 9 and body ground (G504).�
