XM Radio Display Is Blank and No Station Information Is Displayed
Audio System Symptom Troubleshooting - XM radio display is blank and no station information is displayed
XM radio display is blank and no station information is displayed
NOTE:
- Check the vehicle battery condition first Testing and Inspection.
- Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to LOCK (0).

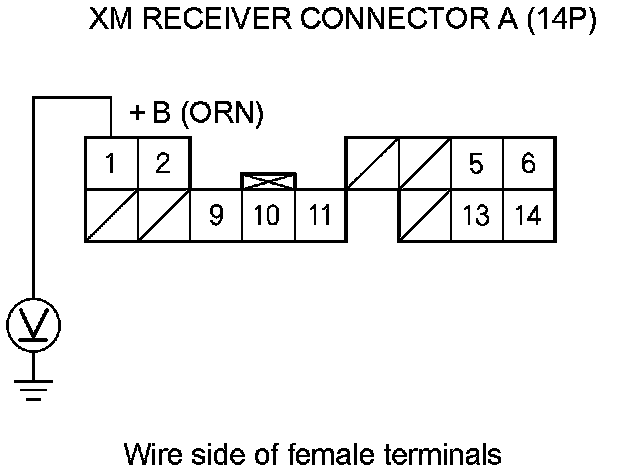

2. Measure the voltage between XM receiver connector A (14P) terminal No. 1 and body ground.
Is there battery voltage?
YES -
Go to step 3.
NO -
Repair an open in the wire between the audio-navigation unit or the audio unit and the XM receiver.�

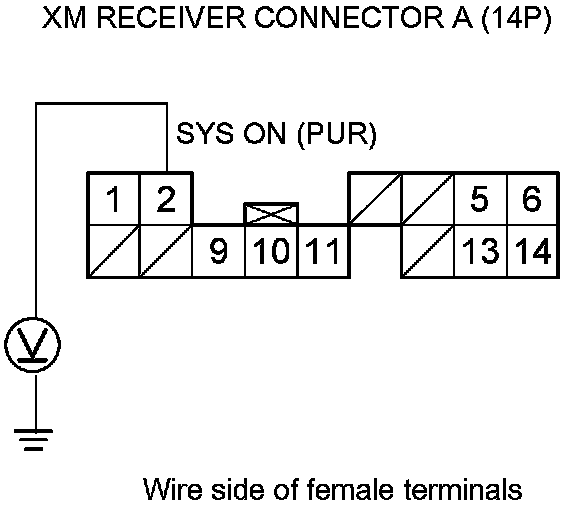

3. Measure the voltage between XM receiver connector A (14P) terminal No. 2 and body ground.
Is there less than 2.0 V?
YES -
Go to step 4.
NO -
Repair an open in the wire between the audio-navigation unit or the audio unit and the XM receiver.�

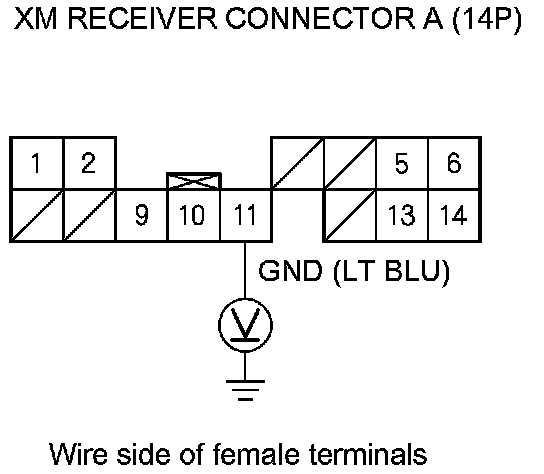

4. Measure the voltage between XM receiver connector A (14P) terminal No. 11 and body ground.
Is there less than 0.2 V?
YES -
Go to step 5.
NO -
Repair an open in the wire between the audio-navigation unit or the audio unit and the XM receiver.�
5. Turn the ignition switch to LOCK (0).

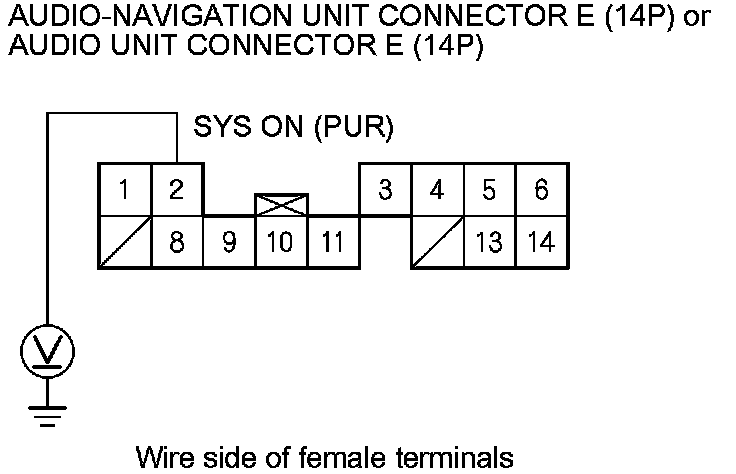

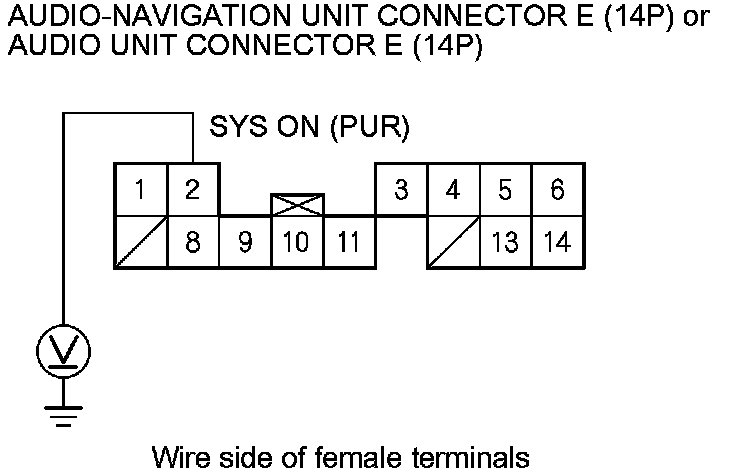

6. Measure the voltage between audio-navigation unit connector E (14P) terminal No. 2 (with navigation) or audio unit connector E (14P) terminal No. 2 (without navigation) and body ground.
Is there 10 V or more preset?
YES -
Go to step 7.
NO -
Substitute a known-good XM receiver XM Receiver Removal/Installation, and recheck. If there is now 10 V or more are present, replace the original XM receiver XM Receiver Removal/Installation.�
7. Turn the ignition switch to ON (II).
8. Measure the voltage between audio-navigation unit connector E (14P) terminal No. 2 (with navigation) or audio unit connector E (14P) terminal No. 2 (without navigation) and body ground.
Is there less than 2 V?
YES -
Go to step 9.
NO -
- With navigation: Substitute a known-good audio-navigation unit ('07-09 models) Audio-Navigation Unit Removal/Installation or audio-navigation unit ('10 model) Audio-Navigation Unit Removal/Installation, and recheck. If there is now 0.5 V or less, replace the original audio-navigation unit ('07-09 models) Audio-Navigation Unit Removal/Installation or audio-navigation unit ('10 model) Audio-Navigation Unit Removal/Installation.�
- Without navigation: Substitute a known-good audio unit Audio Unit Removal/Installation, and recheck. If there is now 0.5 V or less, replace the original audio unit Audio Unit Removal/Installation.�
9. Turn the ignition switch to LOCK (0).
10. Disconnect audio-navigation unit connector E (14P) (with navigation) or audio unit connector E (14P) (without navigation) and XM receiver connector A (14P).

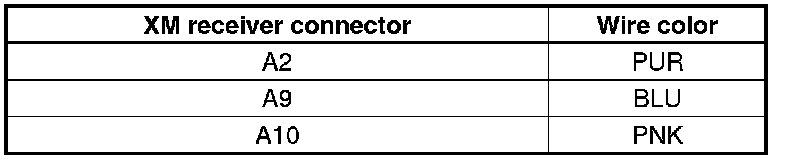

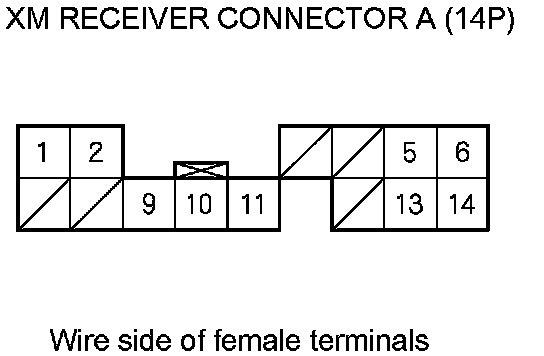

11. Check for continuity between XM receiver connector A (14P) and body ground according to the table. Then check for continuity between the same terminals listed in the table and audio-navigation unit connector E (14P) terminal No. 3 (with navigation) or audio unit connector E (14P) terminal No. 3 (without navigation) (the harness shield).
Is there continuity?
YES -
There is a short in the wire(s) between the audio-navigation unit or the audio unit and the XM receiver. Replace the affected shielded harness.�
NO -
Go to step 12.

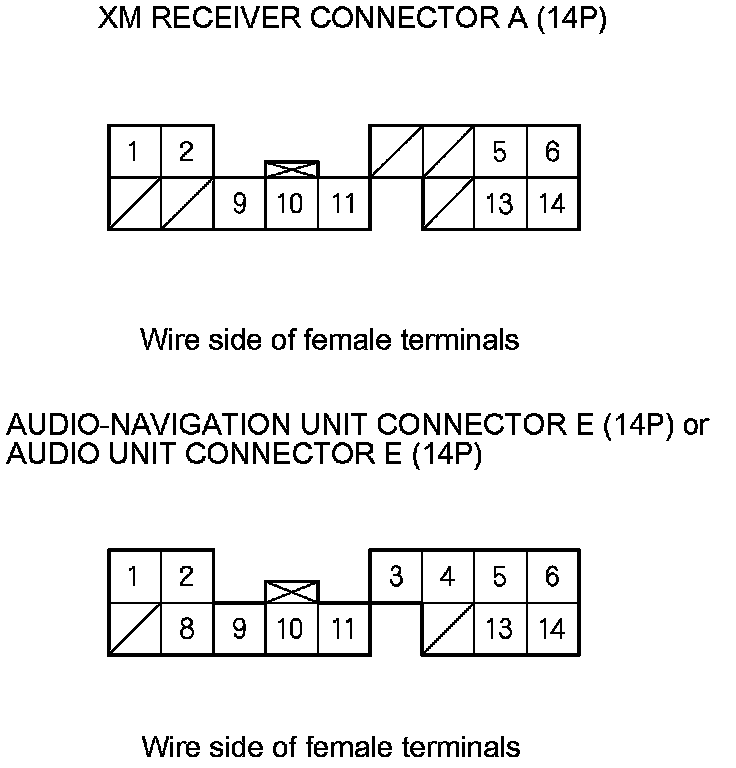

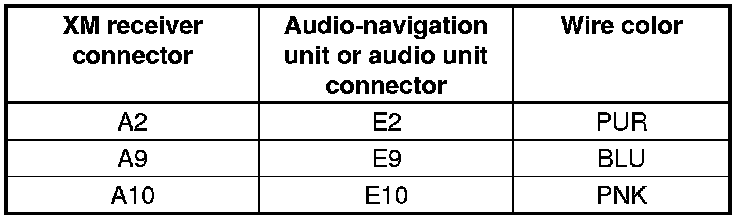

12. Check for continuity between XM receiver connector A (14P) and audio-navigation unit connector E (14P) (with navigation) or audio unit connector E (14P) (without navigation) according to the table.
Is there continuity?
YES -
- With navigation: Substitute a known-good XM receiver XM Receiver Removal/Installation, then reconnect all connectors, and recheck. If the symptom/indication goes away, replace the original XM receiver XM Receiver Removal/Installation. If symptom/indication is still present, replace the audio-navigation unit ('07-09 models) Audio-Navigation Unit Removal/Installation or audio-navigation unit ('10 model) Audio-Navigation Unit Removal/Installation. If the symptom/indication is still present, replace the audio disc changer Service and Repair If symptom/indication is still present, replace the USB adapter unit (if equipped) USB Adapter Unit Replacement.�
- Without navigation: Substitute a known-good XM receiver XM Receiver Removal/Installation, then reconnect all connectors, and recheck. If the symptom/indication goes away, replace the original XM receiver XM Receiver Removal/Installation. If symptom/indication is still present, replace the USB adapter unit (if equipped) USB Adapter Unit Replacement.�
NO -
Replace the affected shield harness between the audio-navigation unit or the audio unit and the XM receiver.�
