Overhaul

Rear Bumper Disassembly/Reassembly

'07-09 models

NOTE: Take care not to scratch the bumper faces.

1. Remove the rear bumper Removal and Replacement.

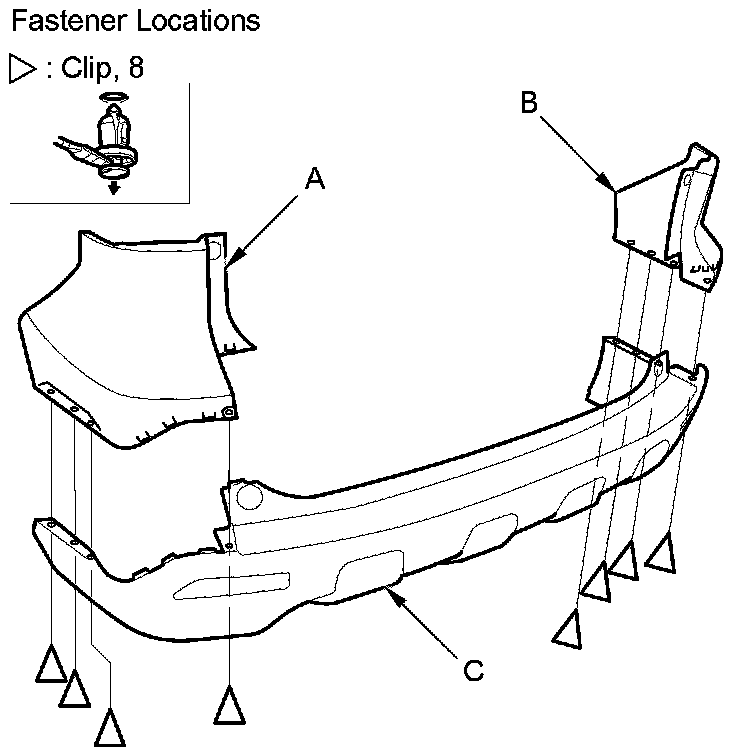

2. Remove the clips, then separate the left rear bumper face (A), the right rear bumper face (B), and the rear bumper lower face (C).

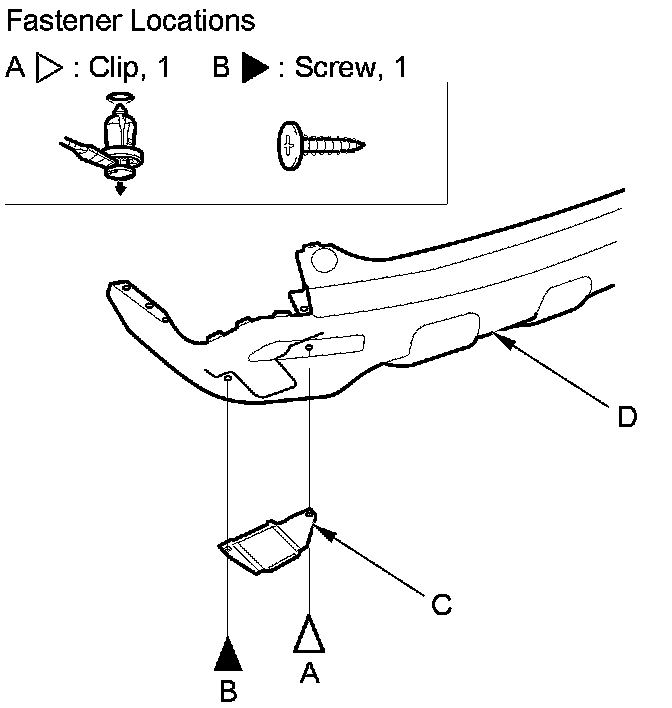

3. Remove the clip (A) and the screw (B), then remove the rear bumper under trim (C) from the rear bumper lower face (D).





4. Reassemble the rear bumper in the reverse order of disassembly, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.

'10-11 models

NOTE: Take care not to scratch the bumper faces.

1. Remove the rear bumper Removal and Replacement.

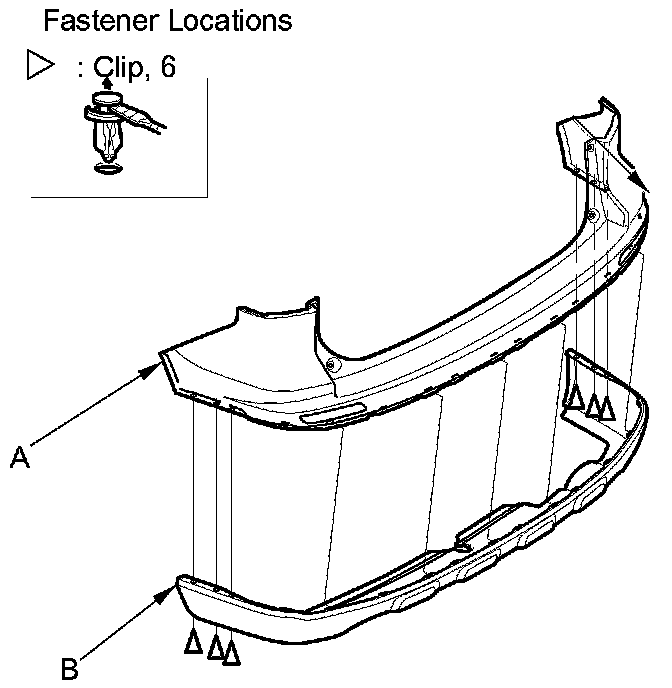

2. Remove the clips, then separate the rear bumper upper face (A) and the rear bumper lower face (B).






3. Reassemble the rear bumper in the reverse order of disassembly, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
