Hood Weatherstrip: Service and Repair

Hood Seal Replacement

NOTE:

- Take care not to scratch the hood.
- Use a clip remover to remove the clips.

1. Detach the clips (A, B) with a clip remover, then remove the hood seals (C, D).

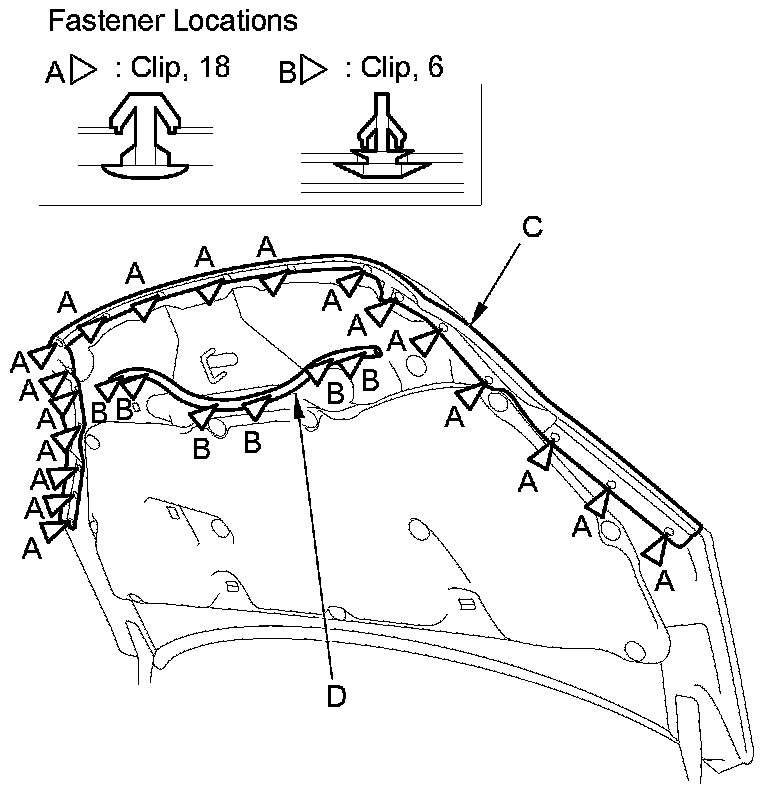

'07-09 models

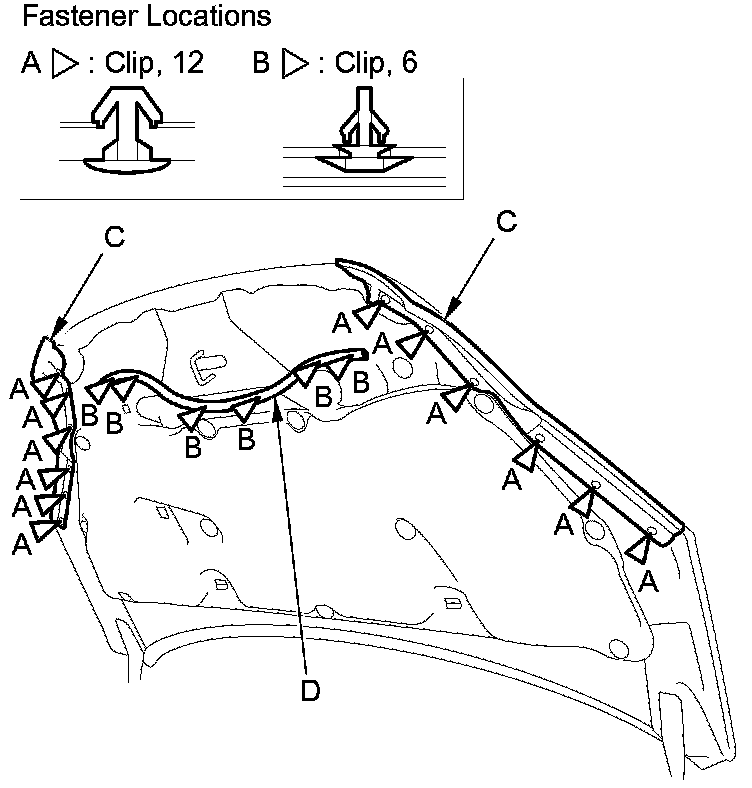

'10-11 models





2. Install the seals in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
