Overhaul

Center Console Disassembly/Reassembly

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the front seat, the dashboard, or the related parts.

1. Remove the center console Center Console Removal/Installation.

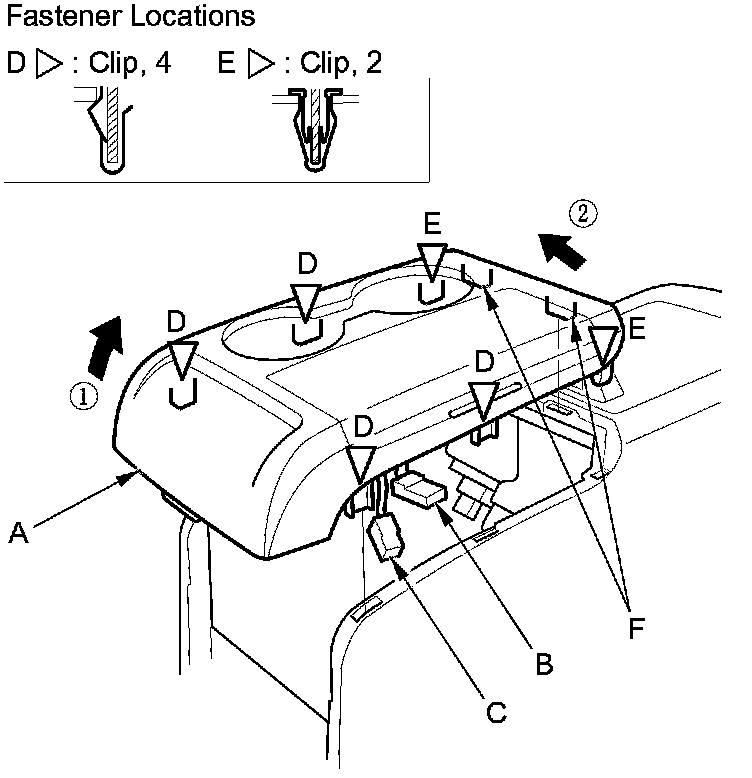

2. Remove the center console upper panel (A).

1. Disconnect the console accessory power socket connector (B) and the auxiliary jack assembly connector (C).

2. Gently pull up the front portion of the center console upper panel to detach the clips (D).

3. Pull up the rear portion of the center console upper panel to detach the clips (E) and release the hooks (F).

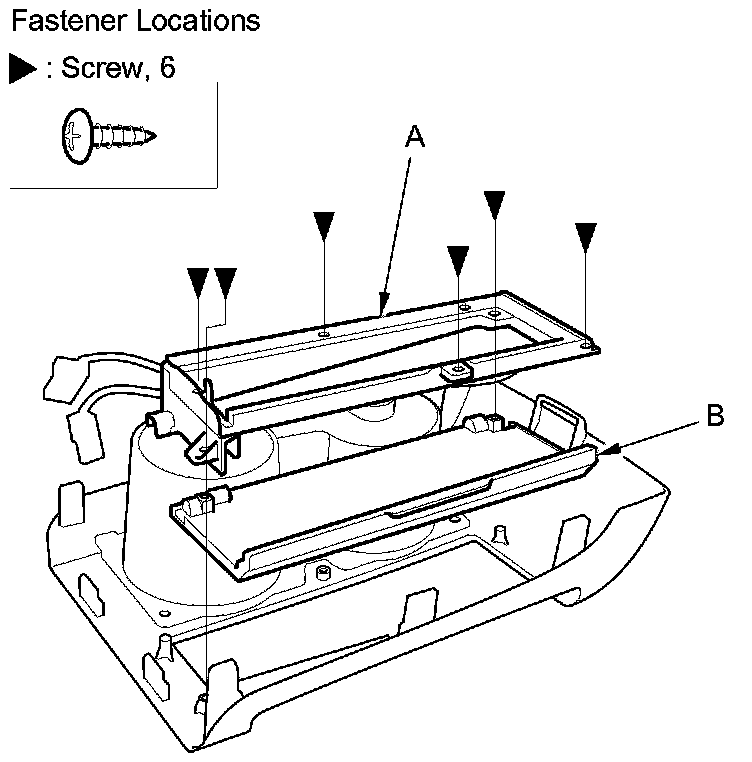

3. From the center console upper panel, remove the screws, then remove the CD box (A) and the inner lid (B) or the pocket.

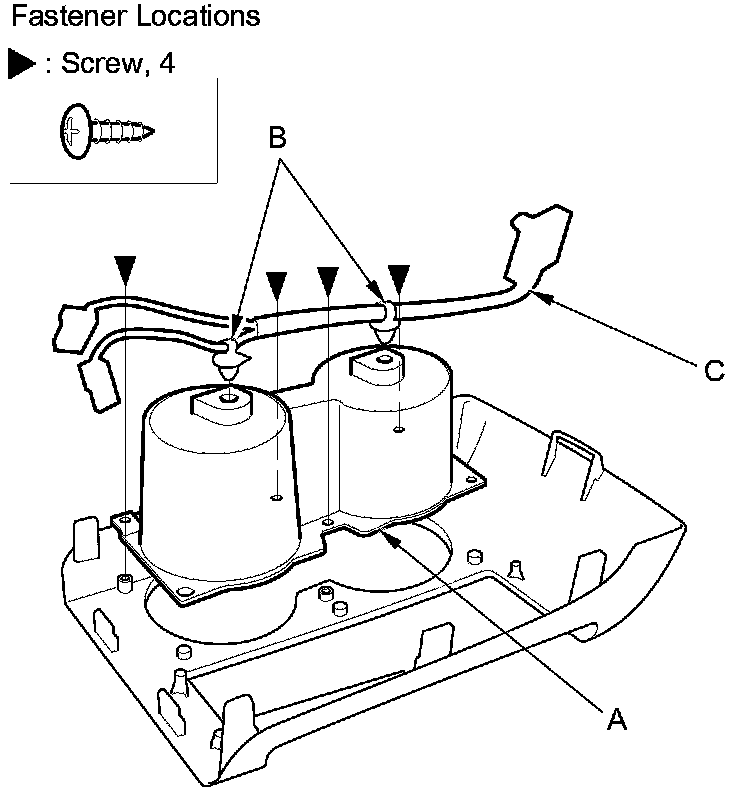

4. Remove the screws, then remove the cup holder (A). Detach the harness clips (B), and remove the console subharness (C) from the cup holder.

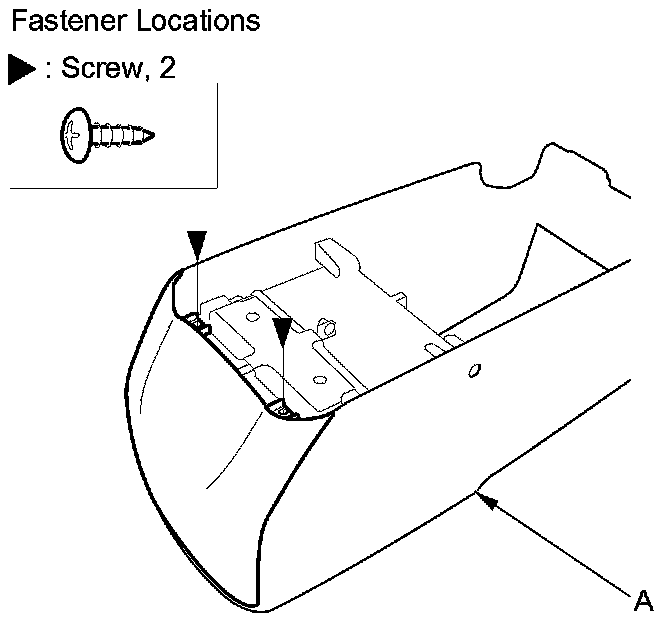

5. From bottom of the center console (A), remove the screws.

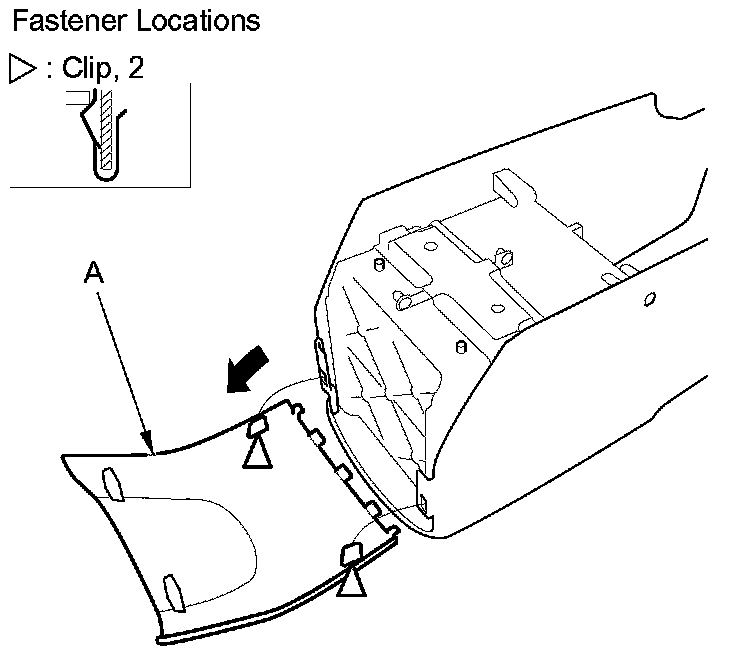

6. Gently pull out the center console rear cover (A) to detach the clips.

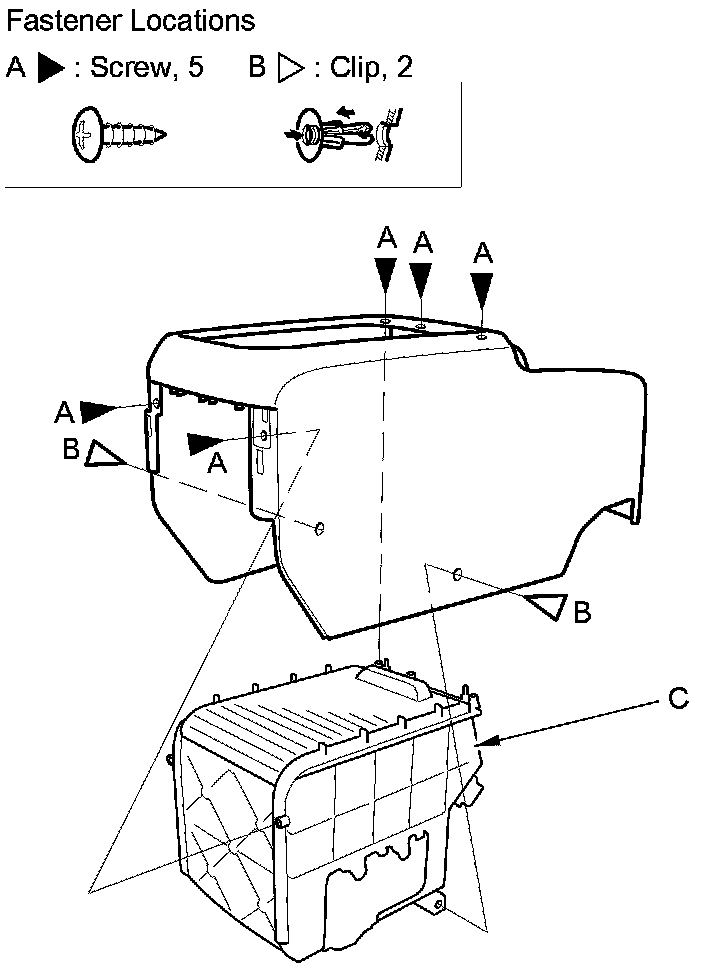

7. Remove the screws (A) and the clips (B), then remove the console box (C).

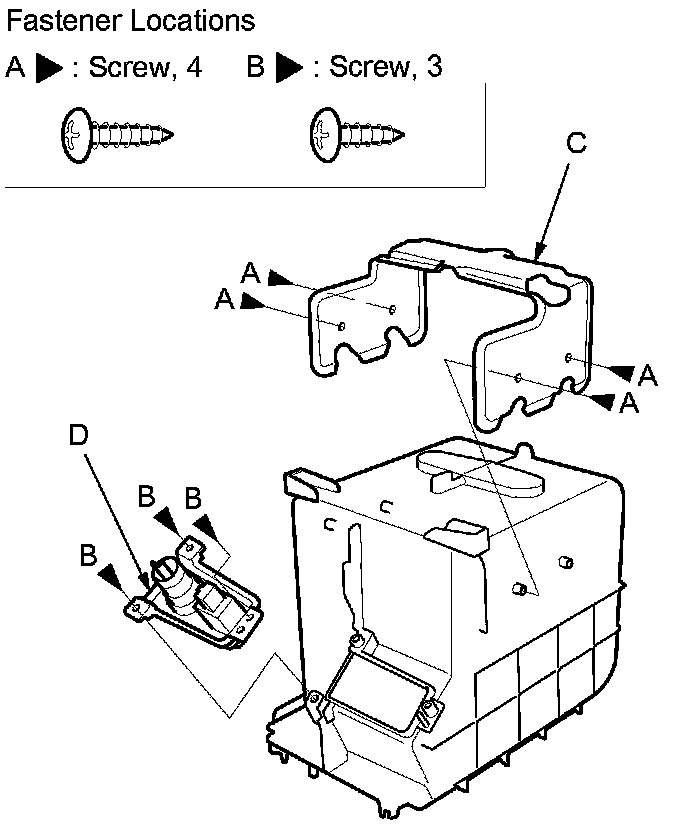

8. Remove the screws (A, B), then remove the bracket (C) and the auxiliary jack panel (D).





9. Reassemble the center console in the reverse order of disassembly, and note these items:

- Make sure each connector is plugged in properly.
- Push the clips and the hooks into place securely.
- If the clips are damaged or stress-whitened, replace them with new ones.
