Front Console Cover Removal/Installation

Front Console Cover Removal/Installation

NOTE: Take care not to scratch the dashboard or the related parts.

1. Remove the console cover (A).

1. Remove the clips (B, C).

2. Gently pull out the cover to detach the clips (D).

3. Driver's side: Pull the cover away to release the pin (E) from the holder (F).

Passenger's side: Pull the cover to release the hook (G).

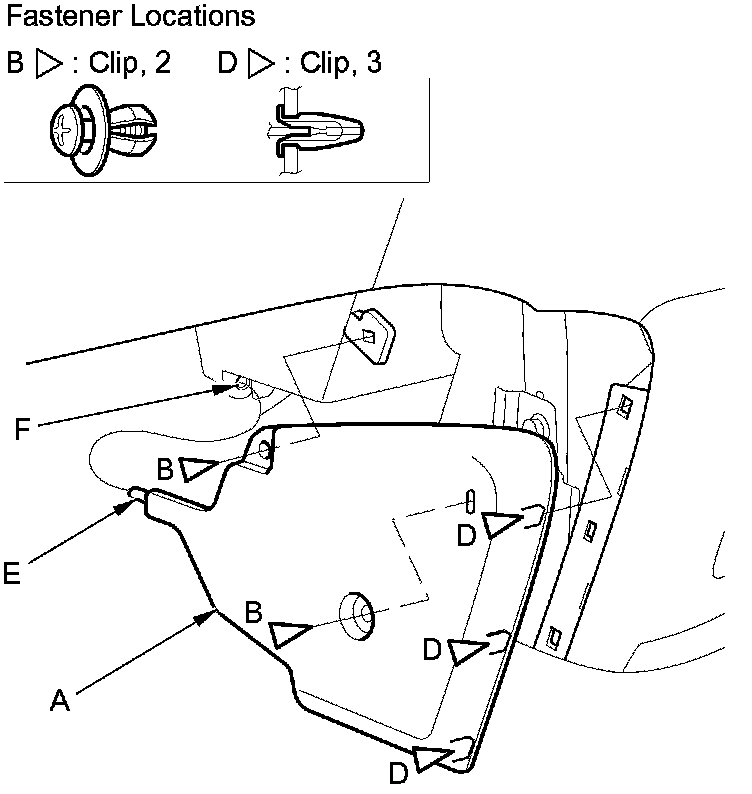

Driver's side

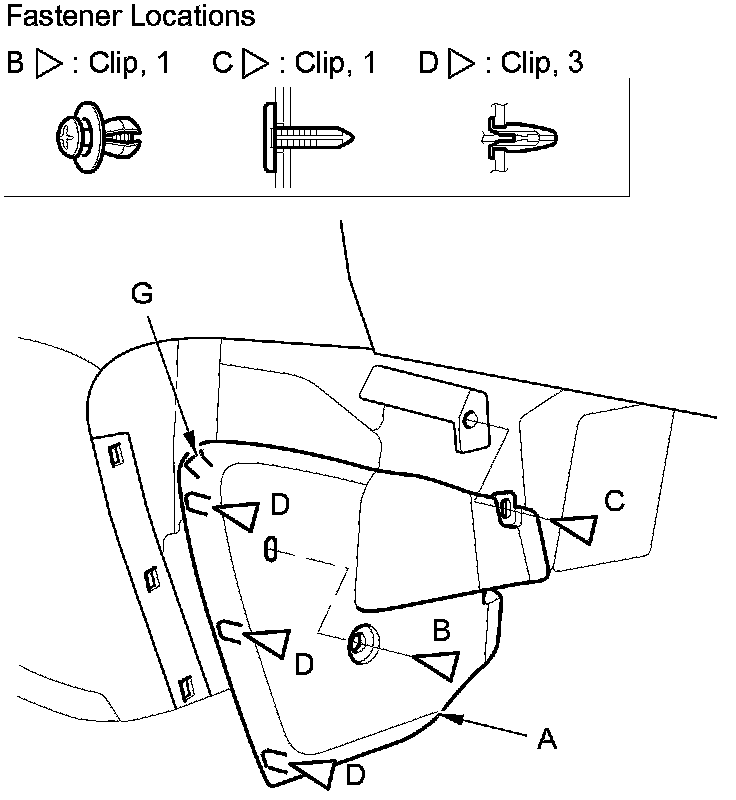

Passenger's side





2. Install the cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hook into place securely.
