Driver's Inner Dashboard Trim Removal/Installation

Driver's Inner Dashboard Trim Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the dashboard or the related parts.

1. Remove the instrument upper visor Instrument Upper Visor Removal/Installation.

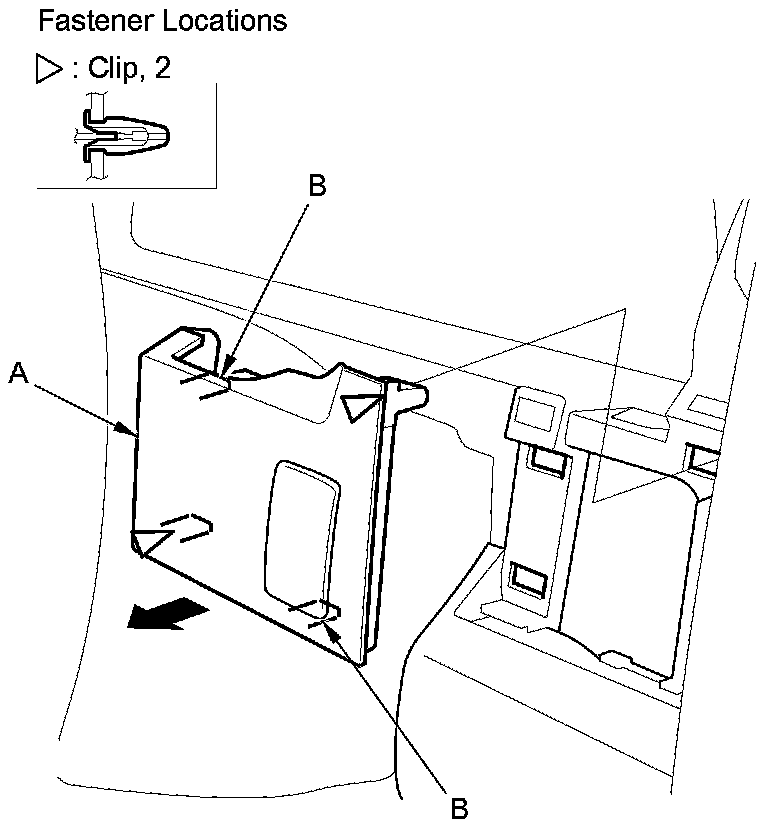

2. Gently pull out along the driver's inner dashboard trim (A) to detach the clips and release the hooks (B), then remove the trim.





3. Install the trim in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
