Shift Lever Panel Removal/Installation

Shift Lever Panel Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the dashboard or the related parts.

1. Remove the HVAC control unit HVAC Control Unit Removal/Installation (Without Climate Control).

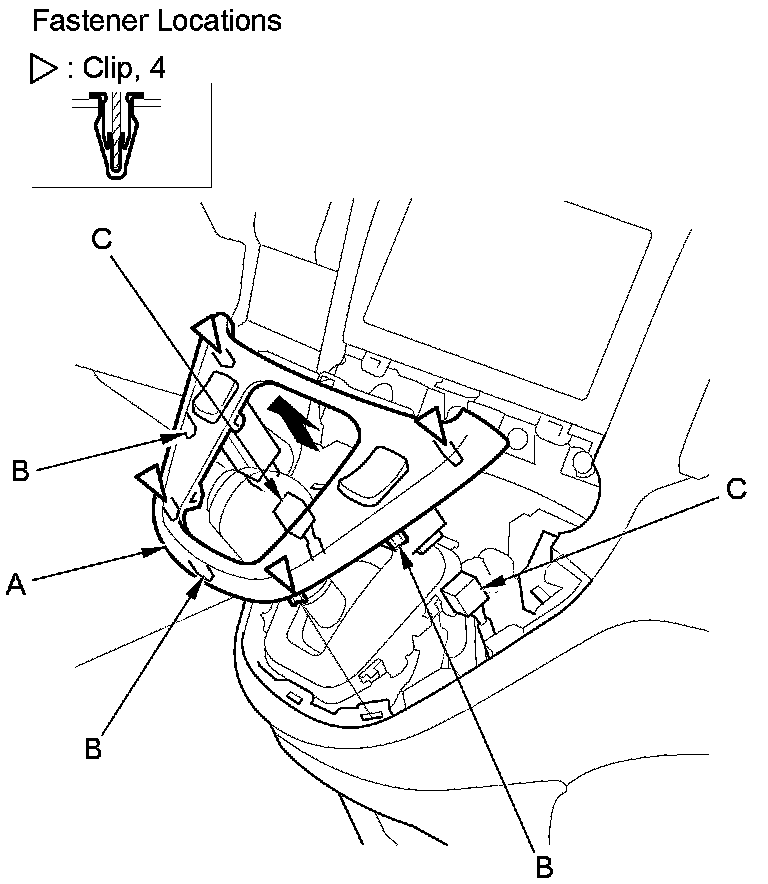

2. From the heater control panel opening, pull up the shift lever panel (A) to detach the clips, and release the hooks (B). Disconnect the seat heater switch connectors (C), if equipped.





3. Install the panel in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
- Make sure each connector is plugged in properly.
