Dashboard Glove Box Cover Removal/Installation

Dashboard Glove Box Cover Removal/Installation

NOTE: Take care not to scratch the dashboard or related parts.

1. Remove the dashboard/steering hanger beam Dashboard/Steering Hanger Beam Removal/Installation.

2. Remove the steering/steering hanger beam from the dashboard Dashboard Replacement.

3. Remove the screws, then remove the dashboard glove box center cover (A) or the dashboard glove box outer cover (B).

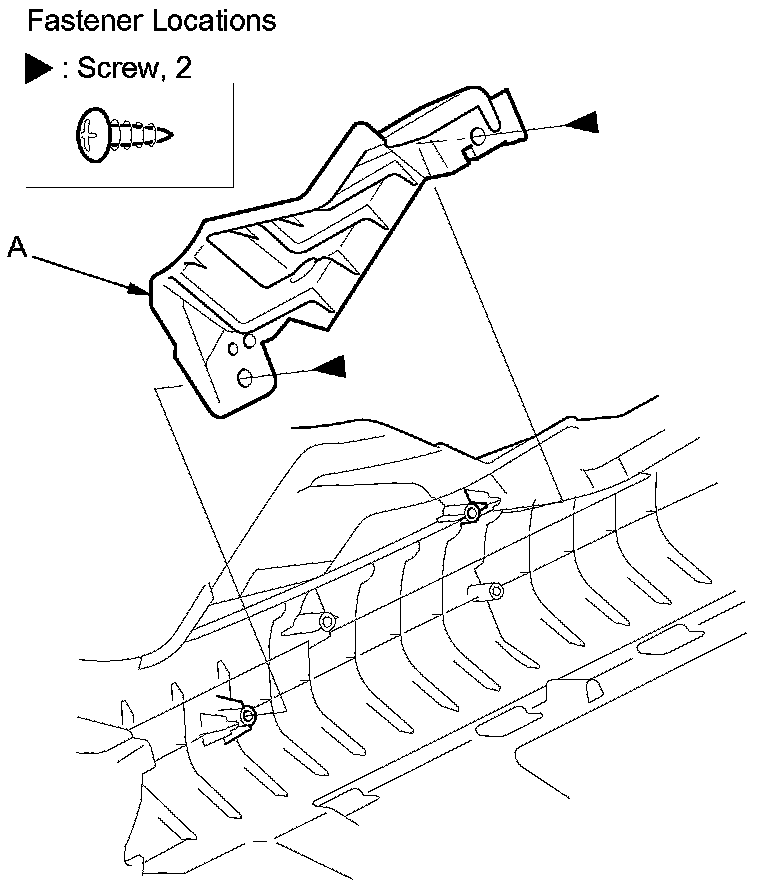

Center

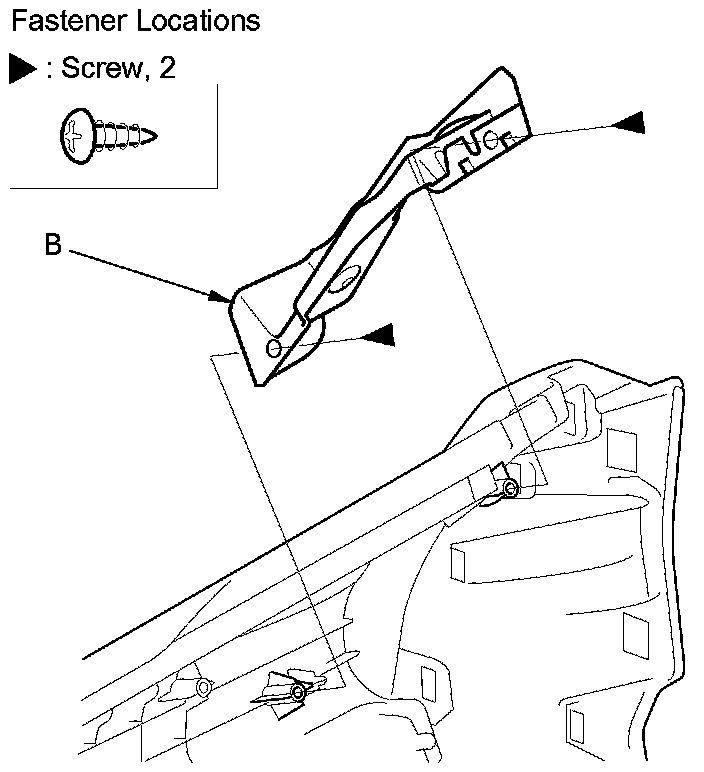

Outer





4. Install the cover in the reverse order of removal.
