Power Mirror Switch Test/Replacement

Power Mirror Switch Test/Replacement

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

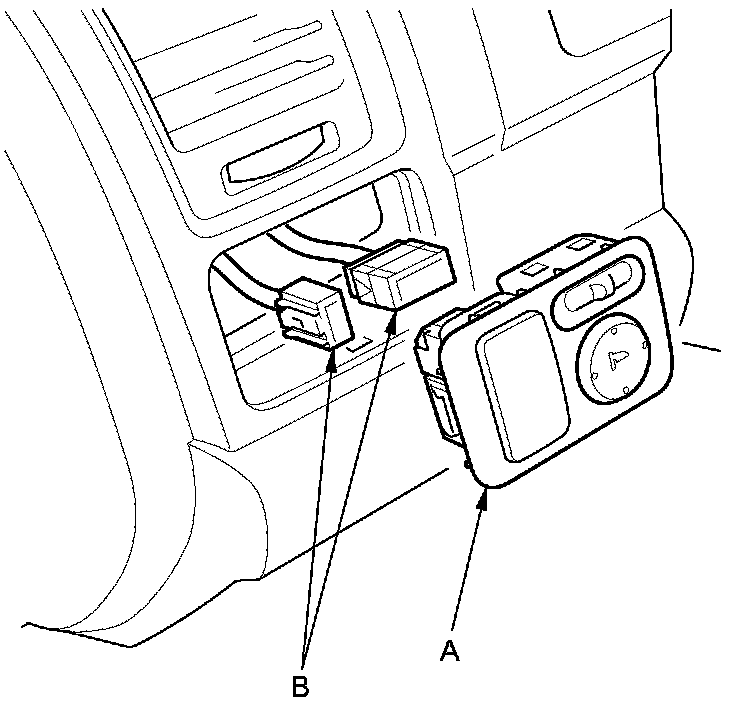

2. Push the driver's switch panel (A) out from the dashboard, and disconnect the connectors (B).

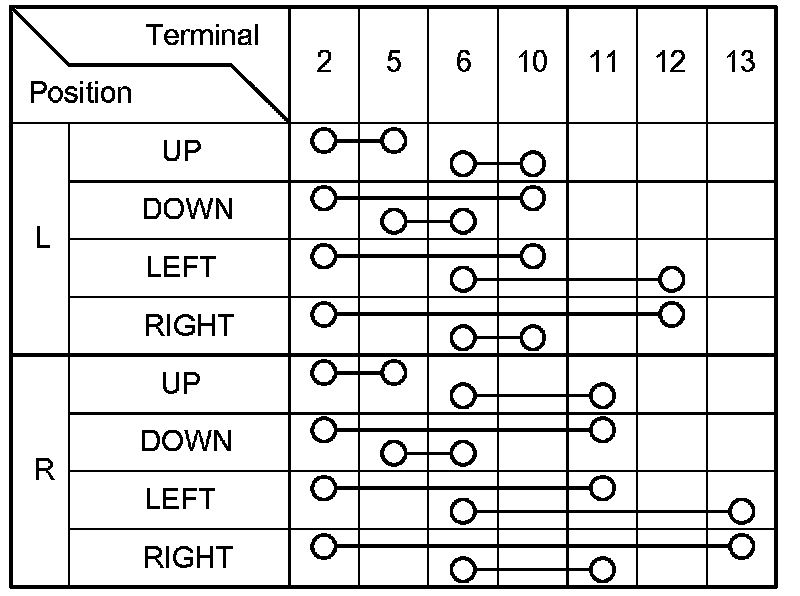

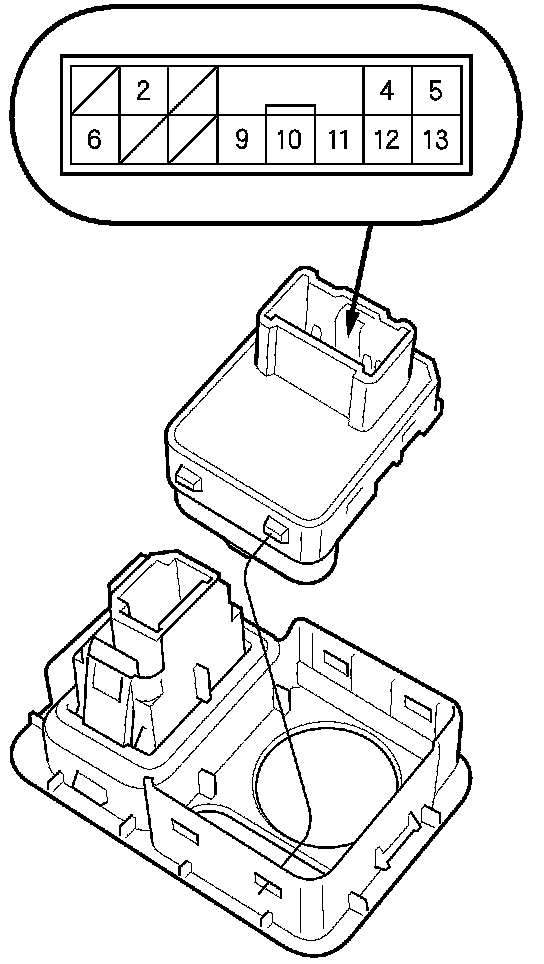

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the switch.

5. Install the switch in the reverse order of removal.
