Sunroof / Moonroof: Adjustments

Moonroof Glass Position Adjustment

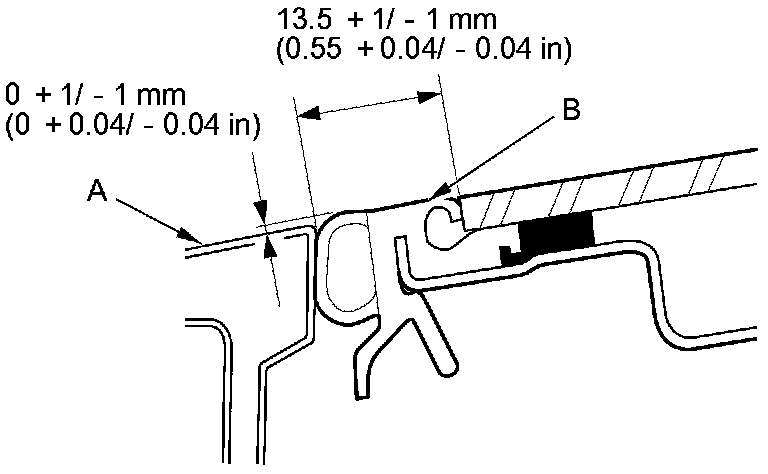

The roof panel (A) should be even with the glass weatherstrip (B), to within 0 +1/-1 mm (0 +0.04/-0.04 in) all the way around, and should be to length of between the roof panel and the glass, to within 13.5 +1/-1 mm(0.55 +0.04/-0.04 in). If not, make the following adjustment:





1. Remove the bracket cover Service and Repair.

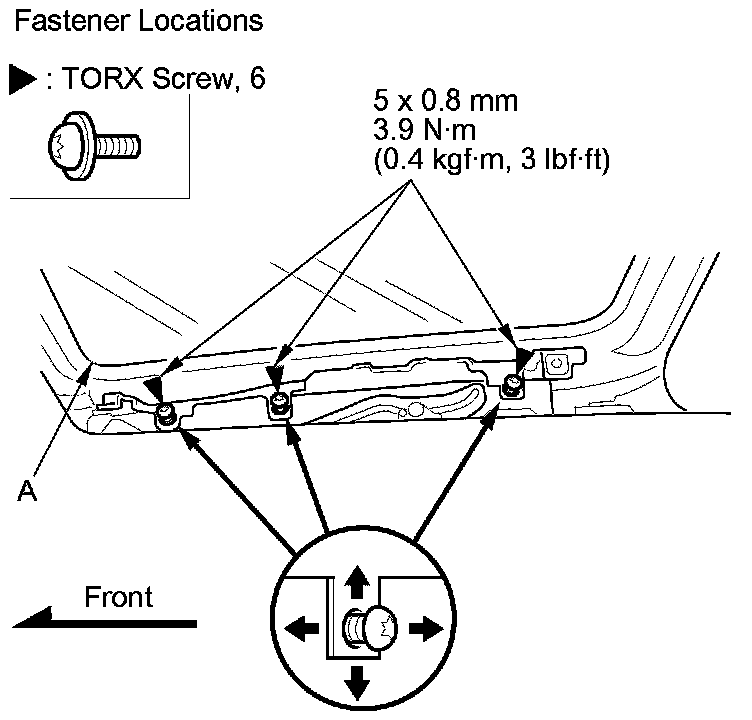

2. Adjust the glass (A).

1. Slightly loosen the TORX screws with a TORX T25 bit.

2. Move the glass up or down and forward or rearward.

3. Tighten all screws securely.





3. If necessary, repeat on the opposite side.

4. Do the moonroof control unit resetting procedure Programming and Relearning.
