Sunroof / Moonroof: Service and Repair

Moonroof Glass Replacement

1. Close the glass fully.

2. Slide the sunshade all the way back.

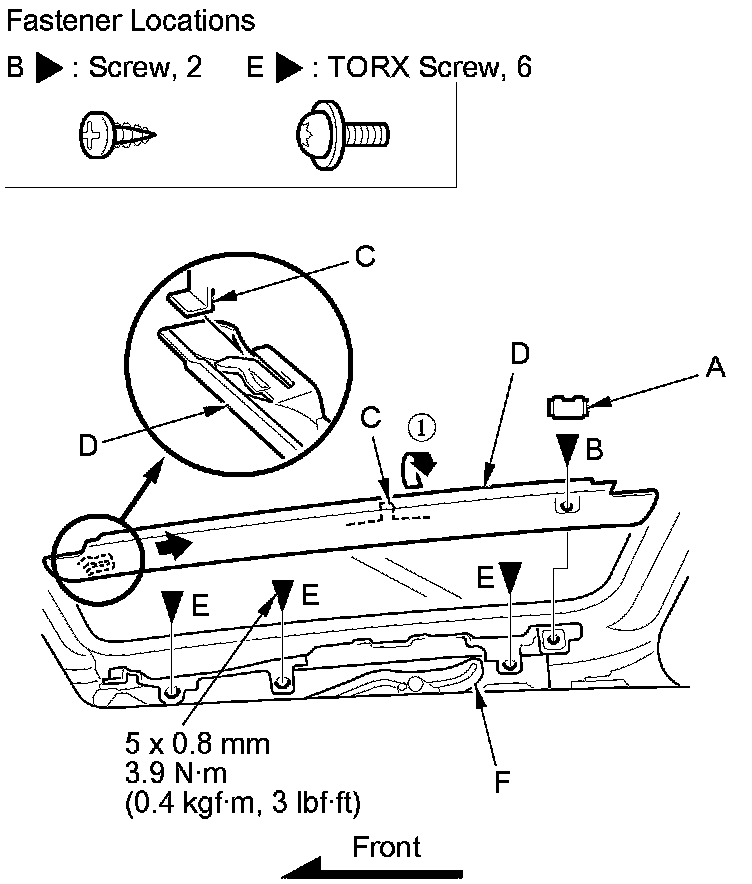

3. Pry out the lid (A), remove the screws (B), and release the hooks (C), then remove the bracket covers (D). Repeat on the opposite side. Remove the TORX screws (E) with a TORX T25 bit from the glass brackets (F) on both sides.

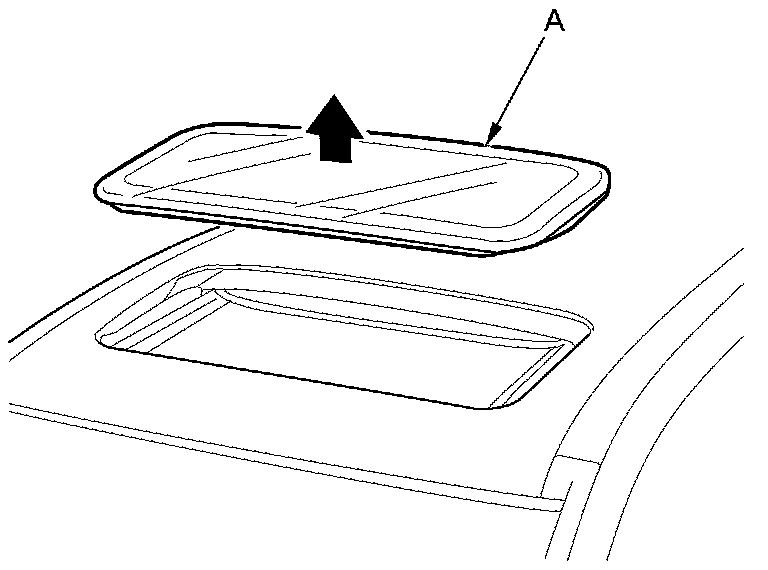

4. Remove the glass (A) by lifting it up. Do not damage the roof panel.





5. Install the glass in the reverse order of the removal, then do these items:

- Do the glass position adjustment procedure Adjustments.
- Do the moonroof control unit resetting procedure Programming and Relearning.

6. Check for water leaks. Let the water run freely from a hose without a nozzle. Do not use high-pressure spray.

NOTE: It is normal for some water to seep past the moonroof into the moonroof frame, and exit through the drains.
