Seat Latch Cable: Service and Repair

Right Rear Seat-back Lock Control Cable Replacement

NOTE:

- Take care not to tear the seams or damage the seat covers.
- Put on gloves to protect your hands.

1. Remove the right rear seat Rear Seat Removal/Installation.

2. Remove the right seat-back assembly from the seat cushion Right Rear Seat Cover Replacement.

3. Remove the tether anchor cover Left Rear Seat Cover Replacement.

4. Release the bottom hook, unzip the seat-back cover, then fold back the cover Right Rear Seat Cover Replacement.

5. Release the strap from the strap lever Right Rear Seat Cover Replacement.

6. Remove the head restraint guides Right Rear Seat Cover Replacement.

7. Remove the seat-back cover/pad from the frame Right Rear Seat Cover Replacement.

8. Remove the strap lever cover Right Rear Seat Cover Replacement.

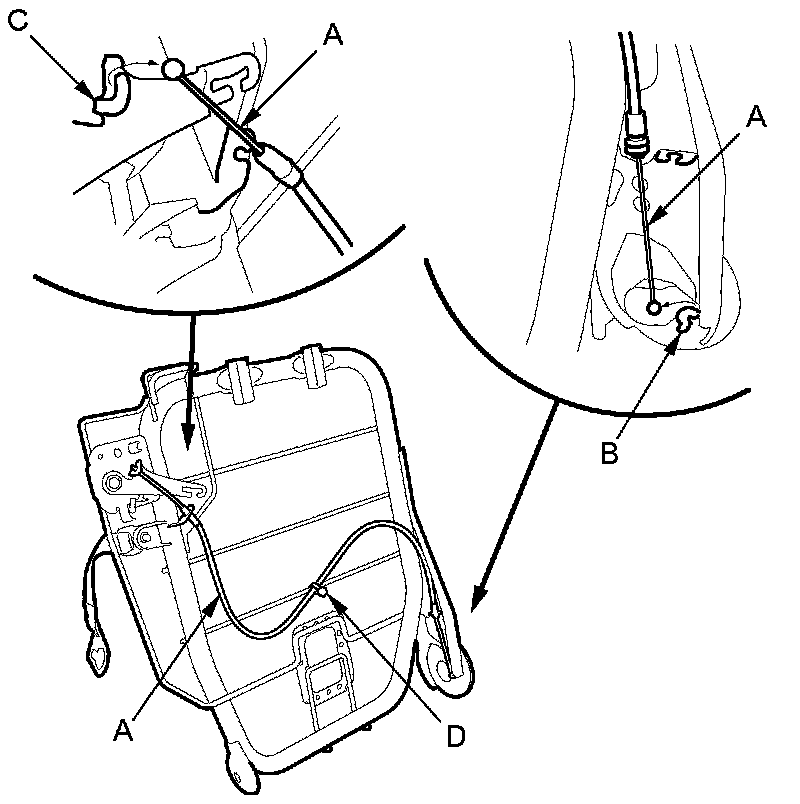

9. Disconnect the seat-back control cable (A) from the inner recline adjuster (B) and the outer recline adjuster (C). Release the clamp (D), then remove the cable.





10. Install the cable in the reverse order of removal, and note these items:

- Replace the clamp you removed with a new one.
- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hooks.
