Front Seat Armrest Replacement

Front Seat Armrest Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Take care not to scratch the body or tear the seat covers.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

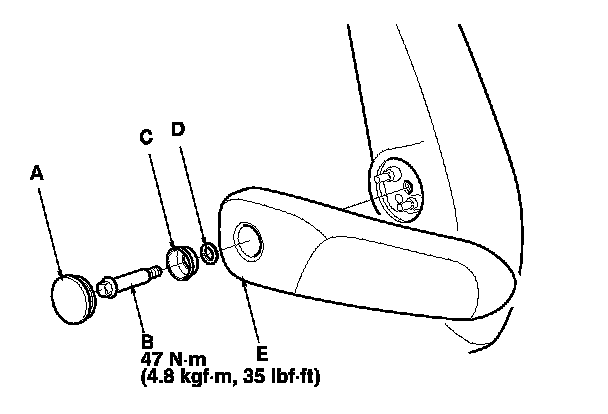

1. Using a trim tool, remove the cap (A).





2. Remove the center pin (B), the bushing (C), and the washer (D), then remove the armrest (E).

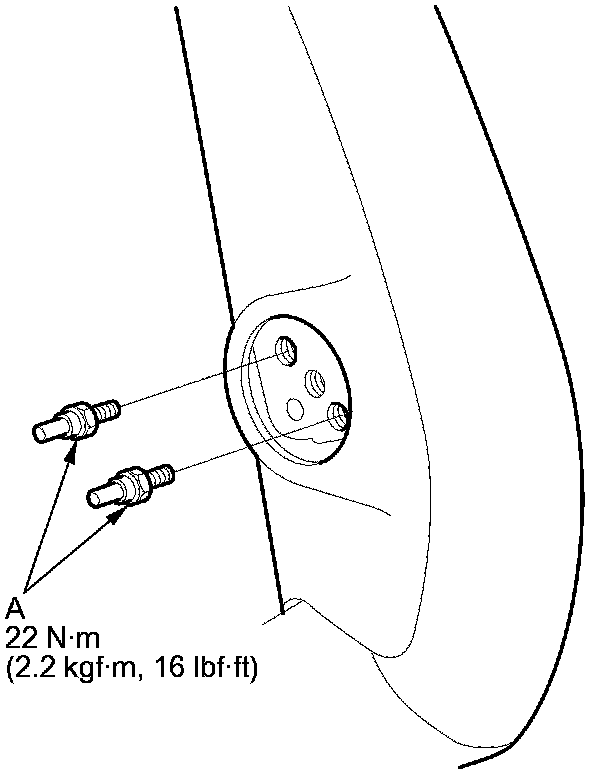

3. If necessary, remove the pins (A) from the seat-back.
