Exterior Parts Removal/Installation

Exterior Parts Removal/Installation

NOTE:

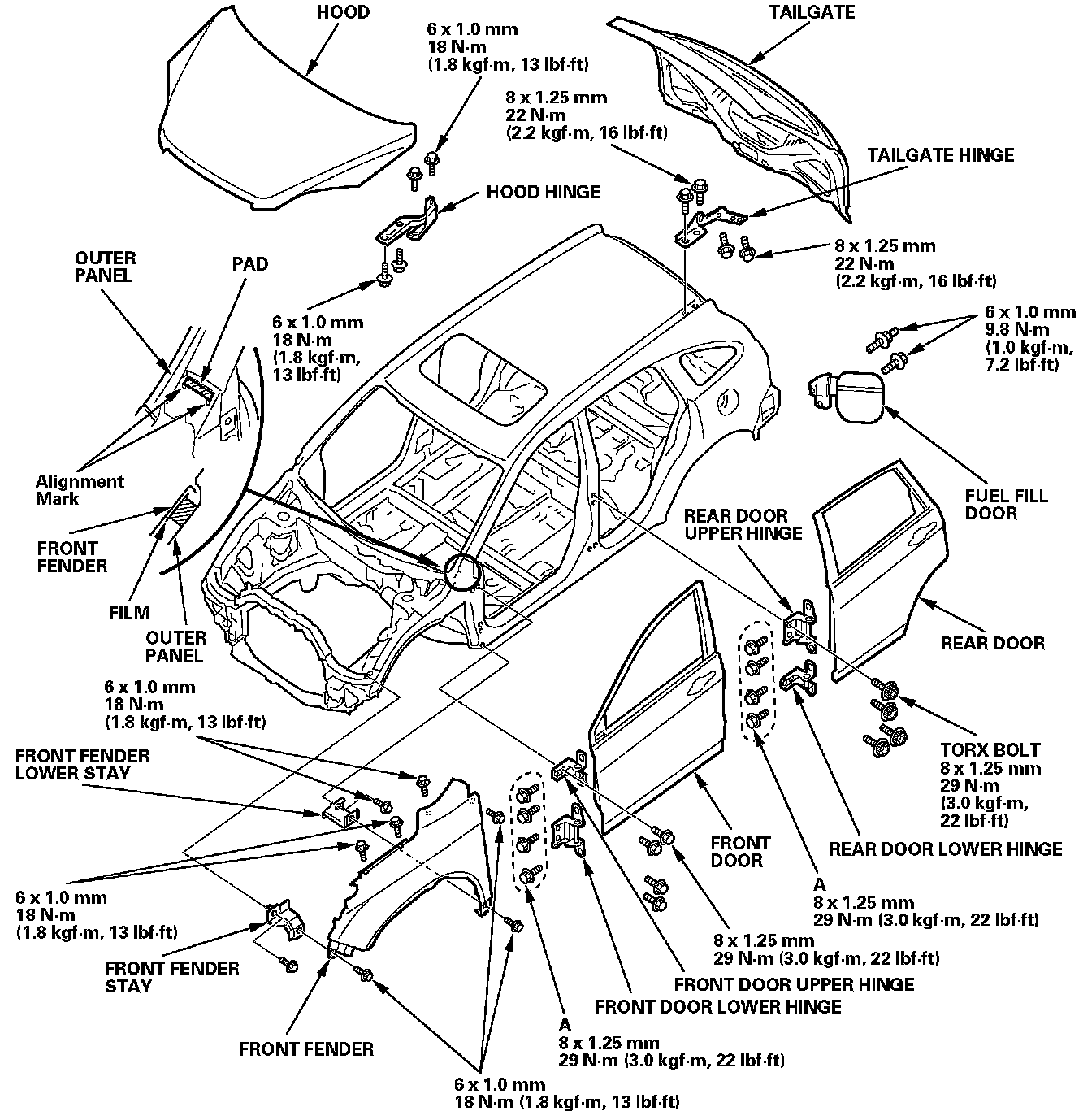

- To adjust the alignment of the hood, the doors, and the tailgate, refer to the appropriate service procedures.
- When replacing the pad, do not peel the film of the front fender side.
- When adjusting the door in or out, replace the mounting bolts (A) (90102-SFA-3050).
- Apply spot sealer to the mating surface, then install the front fender, hood, doors, tailgate, and hinges.
